Product description

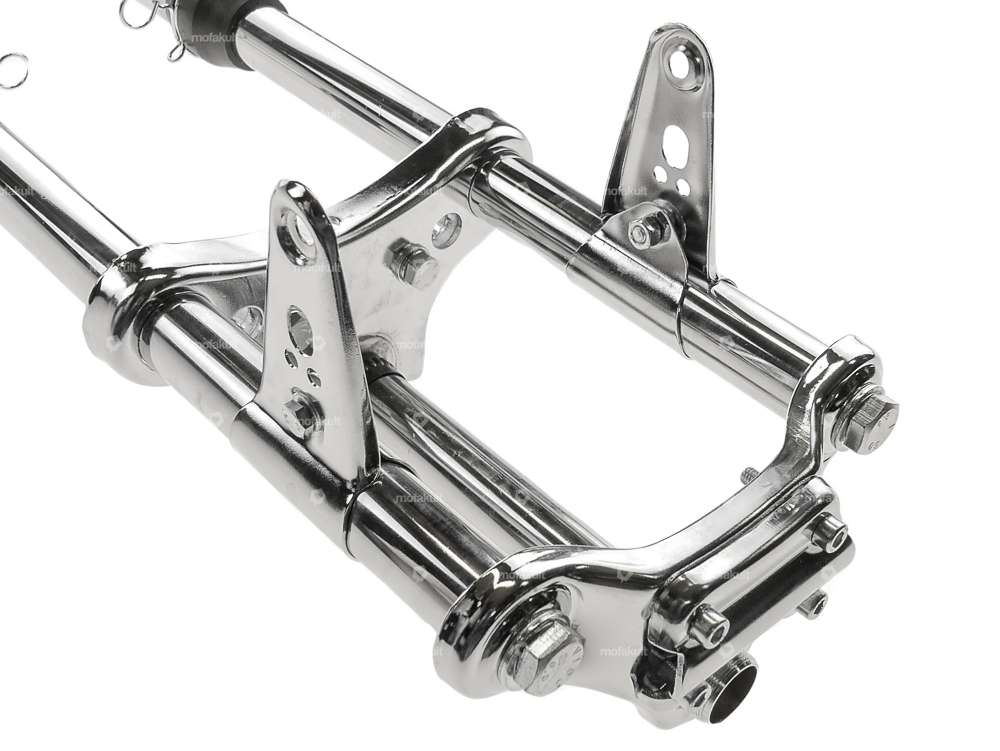

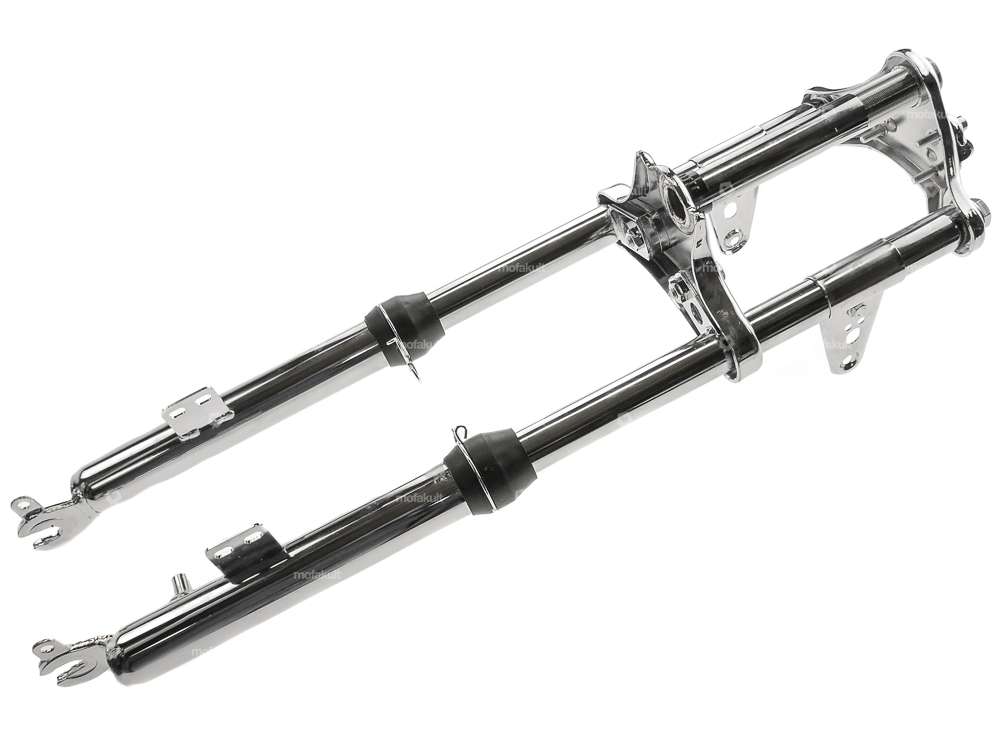

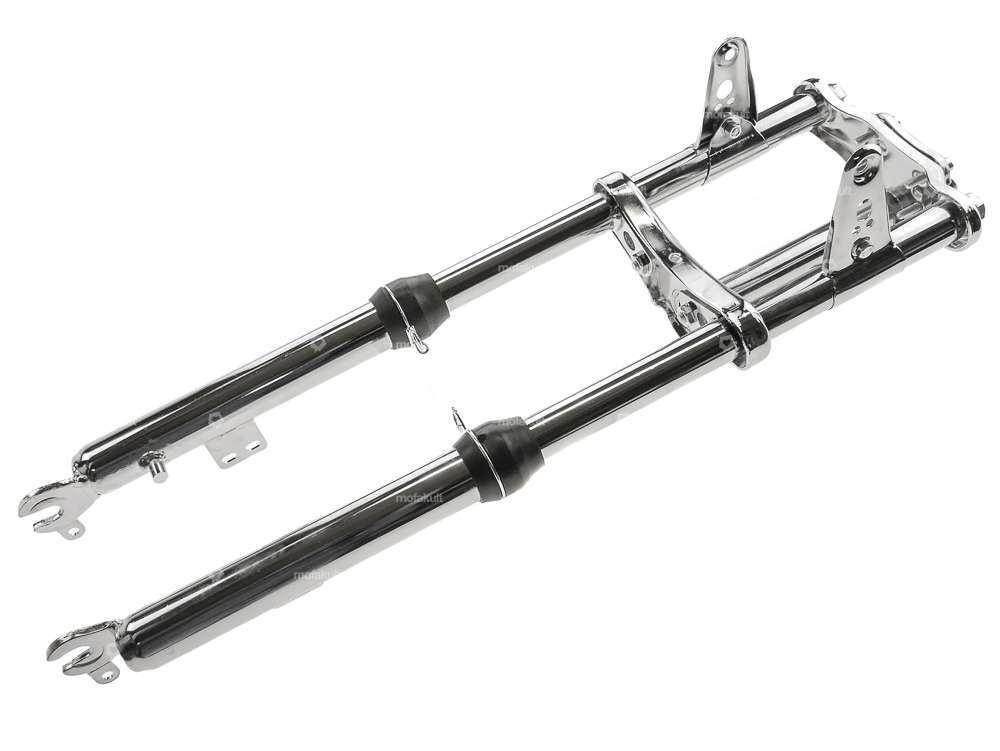

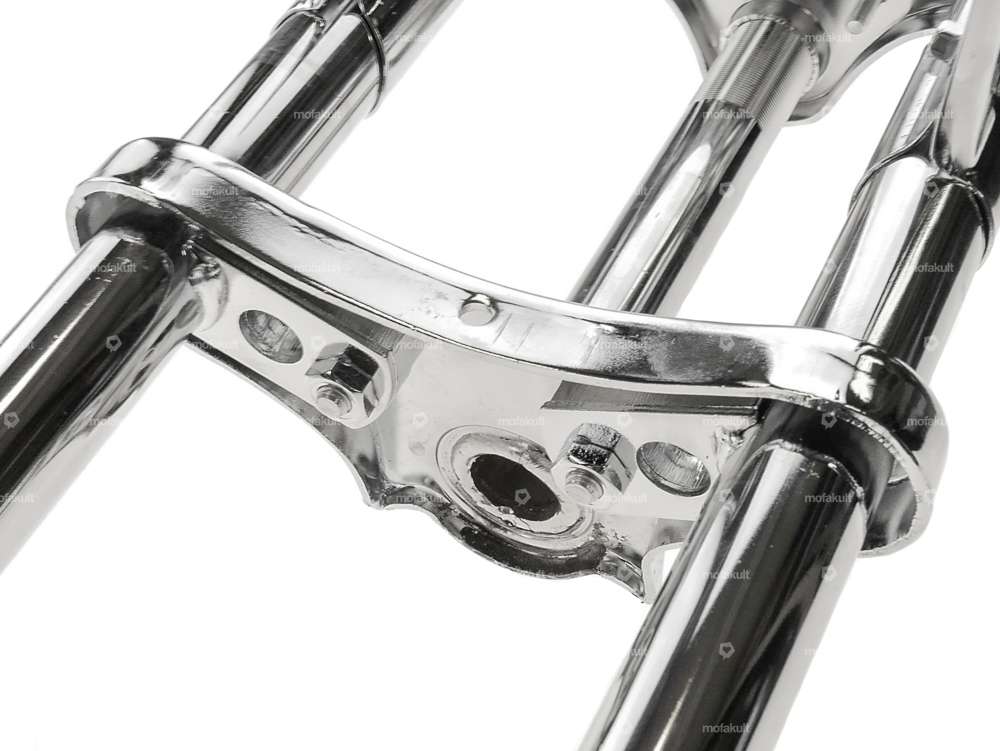

Fork specially made for Zündapp Belmondo mopeds!

The chrome-plated fork fits perfectly and no further adjustments are necessary.

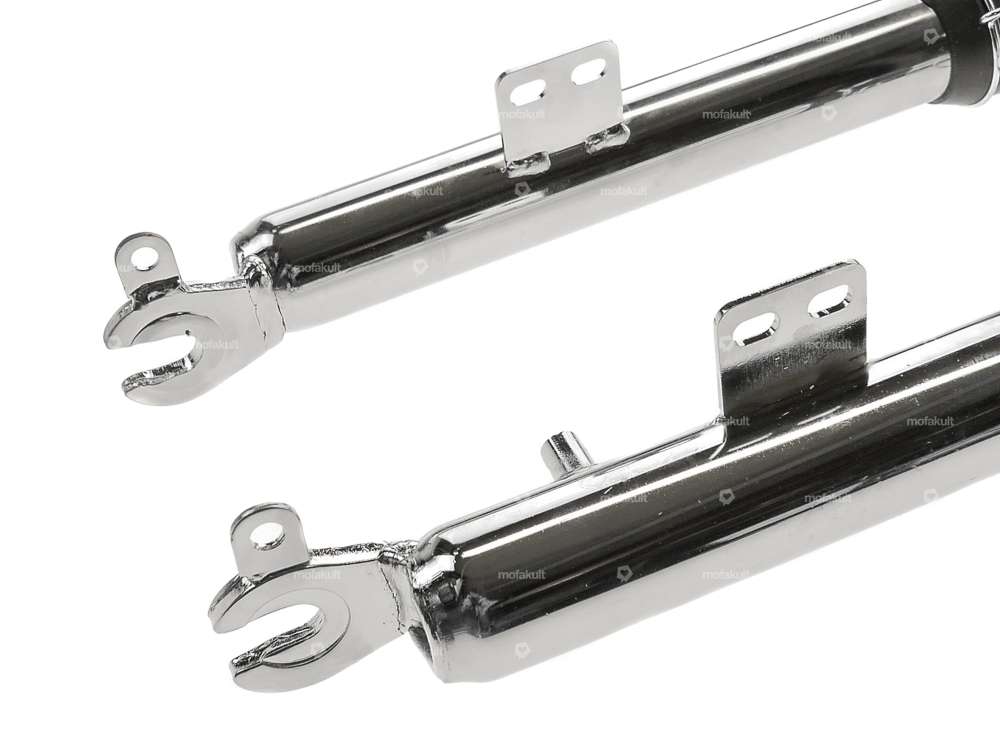

The two tabs for attaching the upper and lower struts are perfectly modeled on the original.

You will find the matching headset set and other add-on parts in the accessories section below.
The snap ring is supplied as shown.

Total fork length: 64 cm
Head tube length: 18.5 cm
Head tube thread: M26x1
Head tube inner diameter (for stem mounting): 22 mm

Branded product from the Italian manufacturer EBR.

Product details

Manufacturer	EWC
Material	Steel
Surface	chrome-plated
Color	Chrome
Adjustable	No
Spar end distance (center-center)	140 mm
Ø outer head tube	26 mm
Ø spars	28 mm
Ø head tube inside	22.1 mm
Head tube length	185 mm

Total length	640 mm
Fork bridge - center wheel axle	420 mm
Distance brake cam to wheel axle center-center	72 mm
Thread type	MF26x1 (fine pitch thread)
Thread length	58 mm

Suitable for the following models

Zündapp Belmondo
