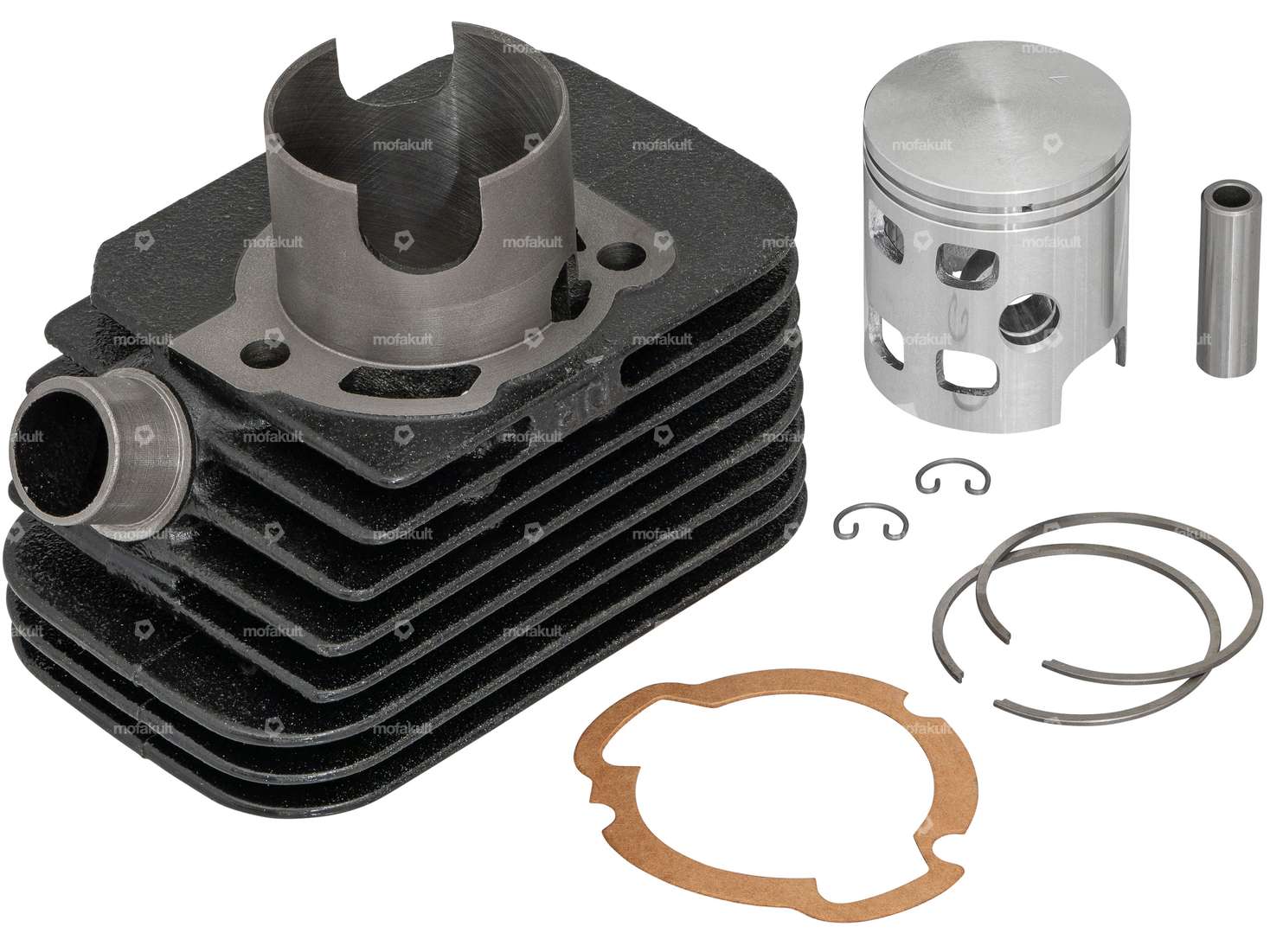

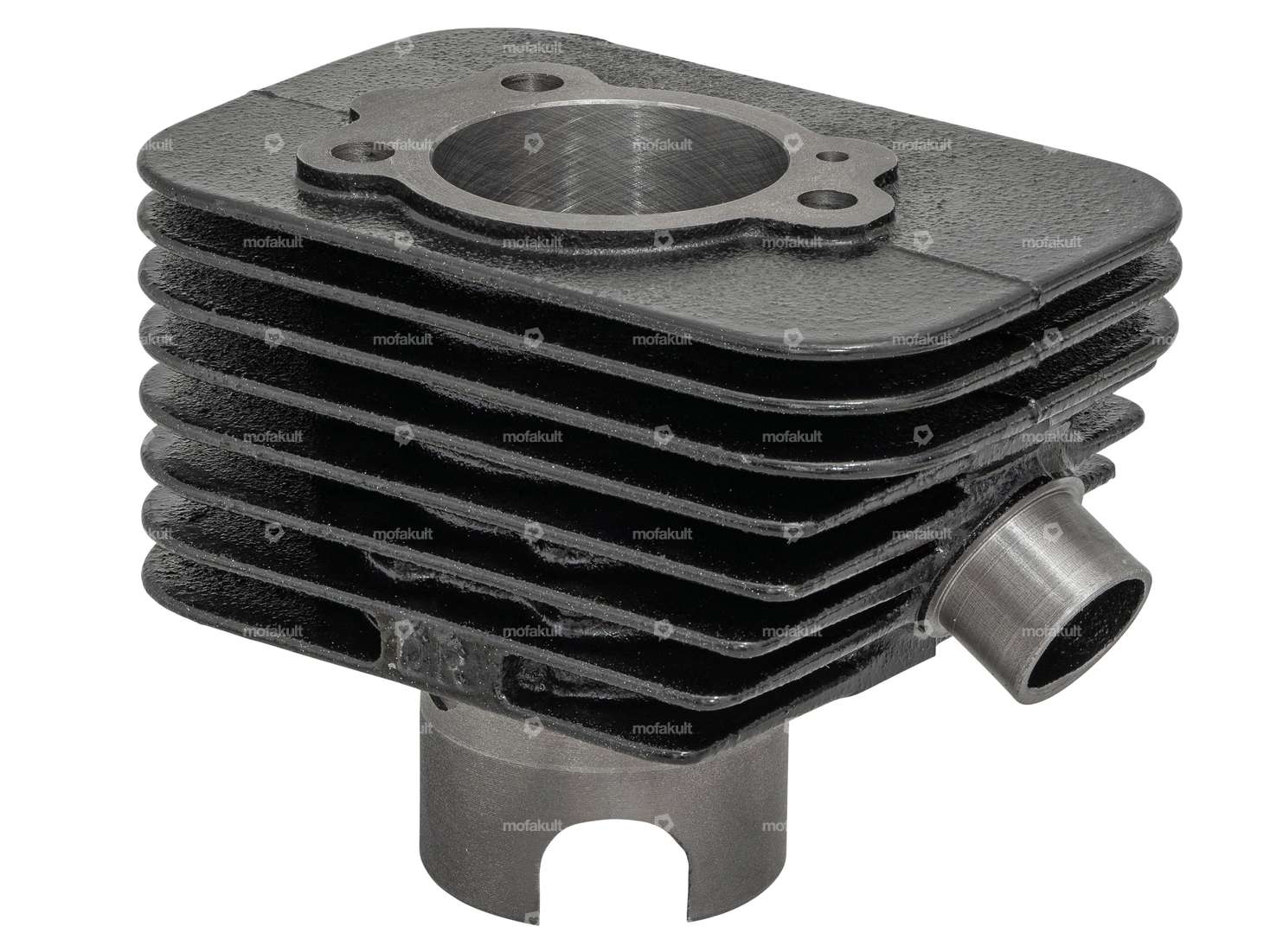

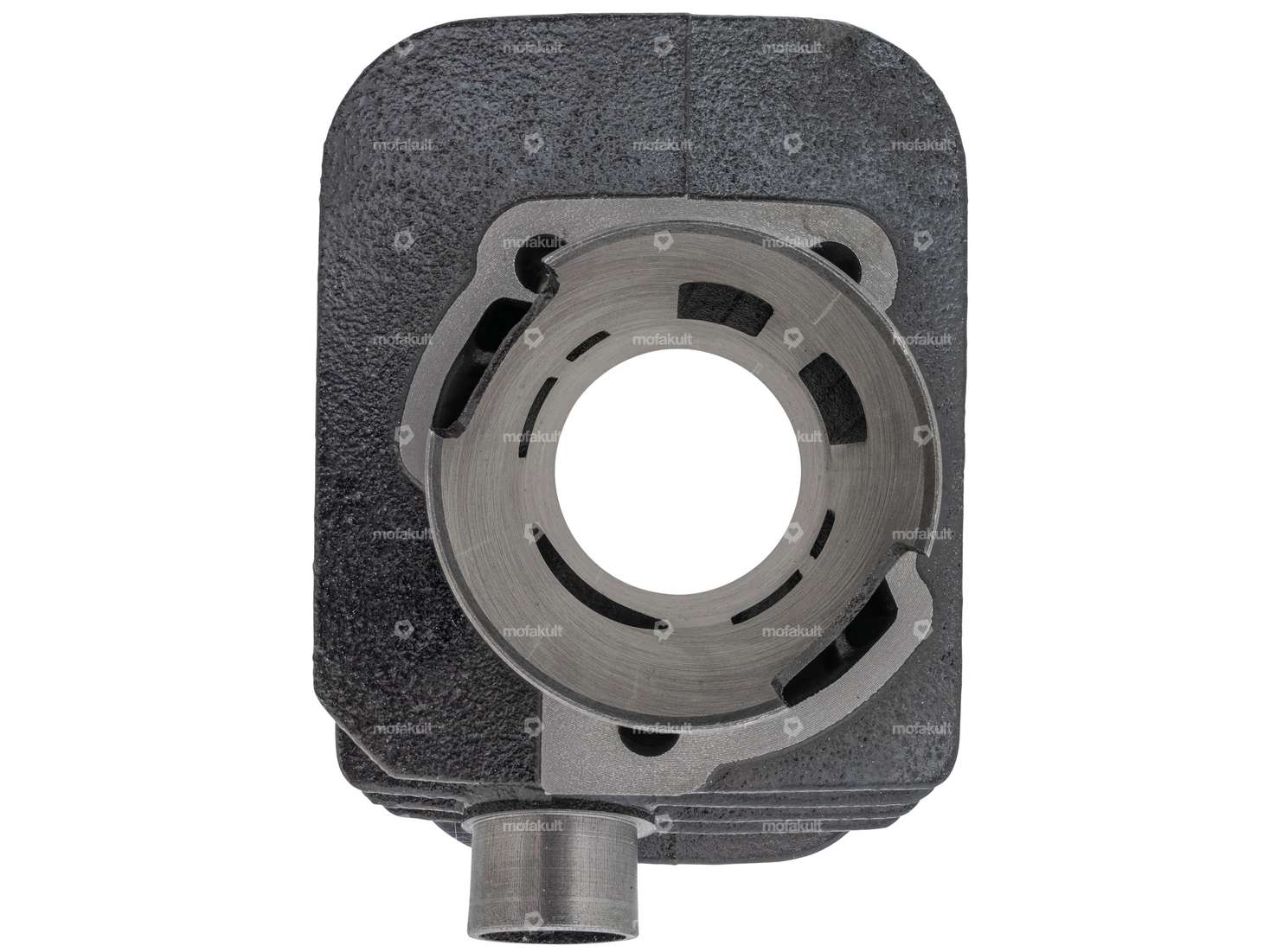

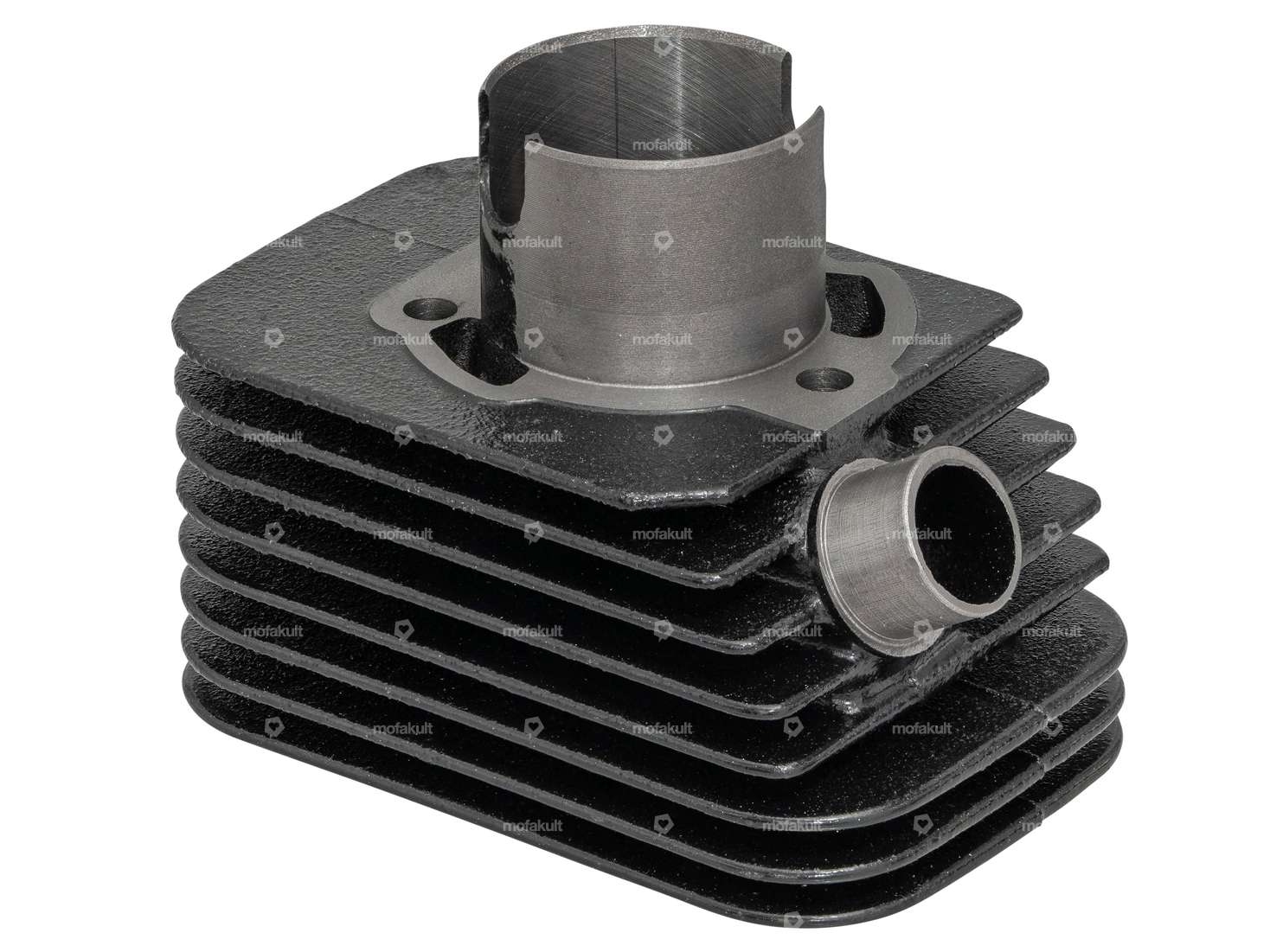

DR 43 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (known as Nirosta®) · Nut type: Hexagon nut · Drive: External hexagon · Width across flats SW: 11 mm · Thread type: M7x1 (standard thread)

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

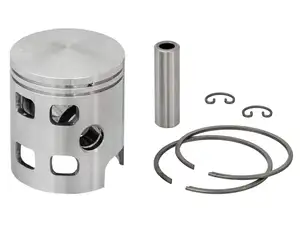

DR piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Nominal diameter: 43 mm · Ø outside piston (A): 42.9 mm · Compression height (C): 26.1 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 10 mm · Piston weight: 82 g

Stud bolt M7x120 mm (budget)

Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Thread length: 25 mm · Total length: 120 mm

Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao

Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Area of application: Racing · Area of application: Tuning · Height: 60 mm · Candle thread: short · Width: 78 mm · Total length: 120 mm · Number of fixing points: 3 pcs

Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio SI

Manufacturer: Olympia · Area of application: Racing · Ø cylinder: 41 - 43 mm

Polini cylinder base gasket 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Place of use: Cylinder base · Ø cylinder: 43 mm · Area of application: Racing

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing cage: Sheet steel cage · Manufacturer: Malossi · Bearing type: Needle roller and cage assembly · Ø inside: 13 mm · Ø outside: 1 mm · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats SW: 21 mm · Thread type: MF14x1.25 (fine pitch thread)

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Area of application: Original · Area of application: Standard · Cable available: No · Ø axle: 5 mm · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Capacity: 0.26 µF · Area of application: Original · Area of application: Standard · Mounting type: Tab for screwing · Connection type: Cable for screwing · Height: 26 mm · Ø mounting hole: 4.4 mm · Ø outside: 18 mm · Piaggio OEM number: 102939

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24. Bravo, SUPERbravo

Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Choke control: Hand choke · Carburetor type: SHA (Piaggio) · Color: black · Total length: 46 mm · Width: 60 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Height: 96 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 18 mm · Nozzle size: 66 · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Area of application: Tuning · Ø Internal connection: 16 mm · Mixed oil connection: No · Vacuum connection: No · Camouflaged: No

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Plastic · Color: black · Filter type: Foam · Total length: 31.2 mm · Width: 95 mm · Height: 88.7 mm · Mounting type: Plug connection clamped · Ø outside: 53.2 mm · Area of application: Tuning · Ø Internal connection: 51 mm · Camouflaged: No

Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao

Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Area of application: Racing · Area of application: Tuning · Height: 60 mm · Candle thread: short · Width: 78 mm · Total length: 120 mm · Number of fixing points: 3 pcs

SKF 6202 C3 ball bearing 15/35/11

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202

Oil seal FPM 15/24/5 AS

Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: FPM - Fluororubber · Surface: rubberized · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm

Olympia clamp cylinder cover | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Material: Spring steel · Surface: burnished · Color: black · Total length: 23.9 mm · Number of fixing points: 1 pcs · Width: 16.25 mm · Height: 24 mm · Piaggio OEM number: 008455 · Piaggio OEM number: 013963 · Piaggio OEM number: 139122
