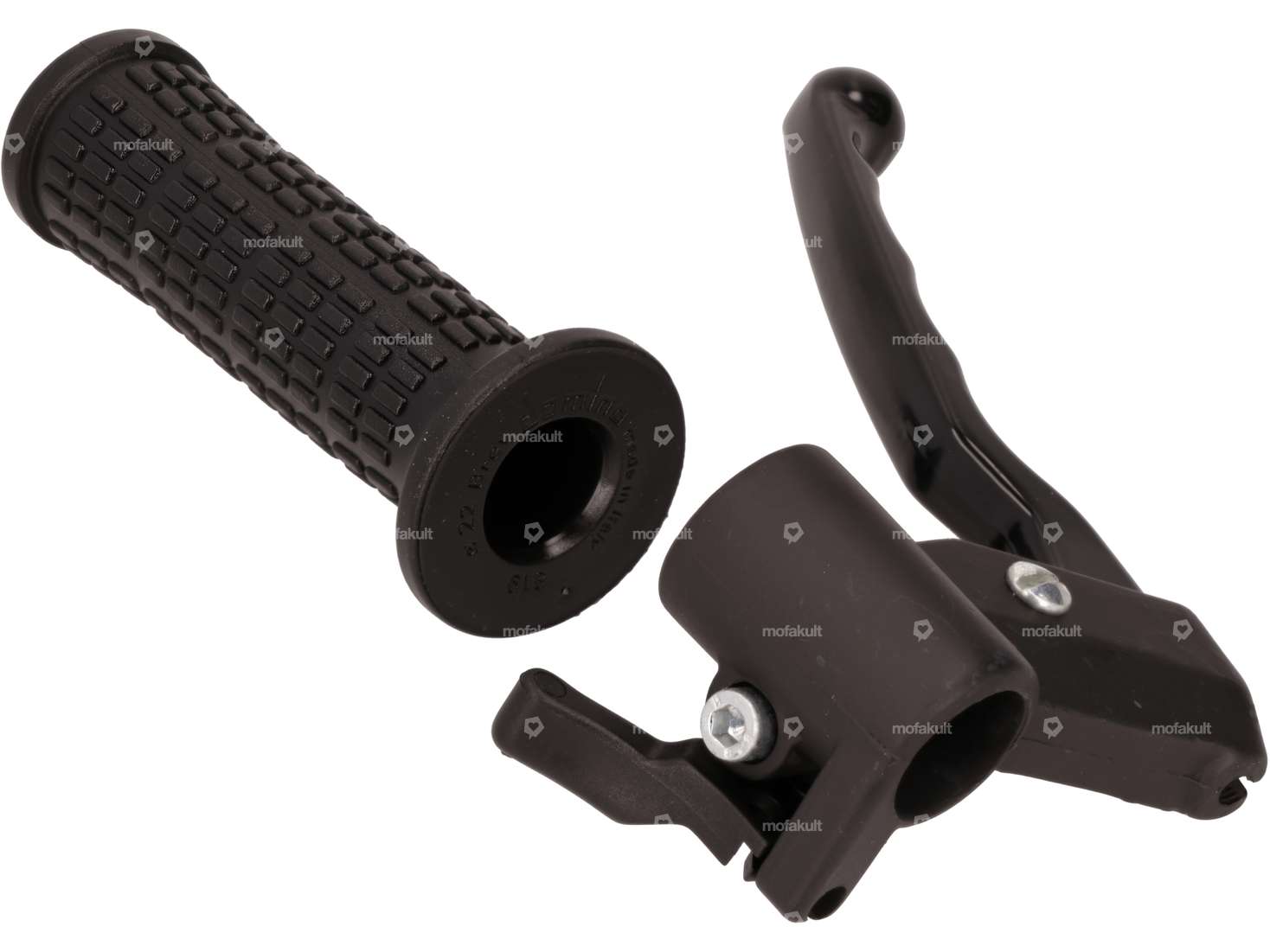

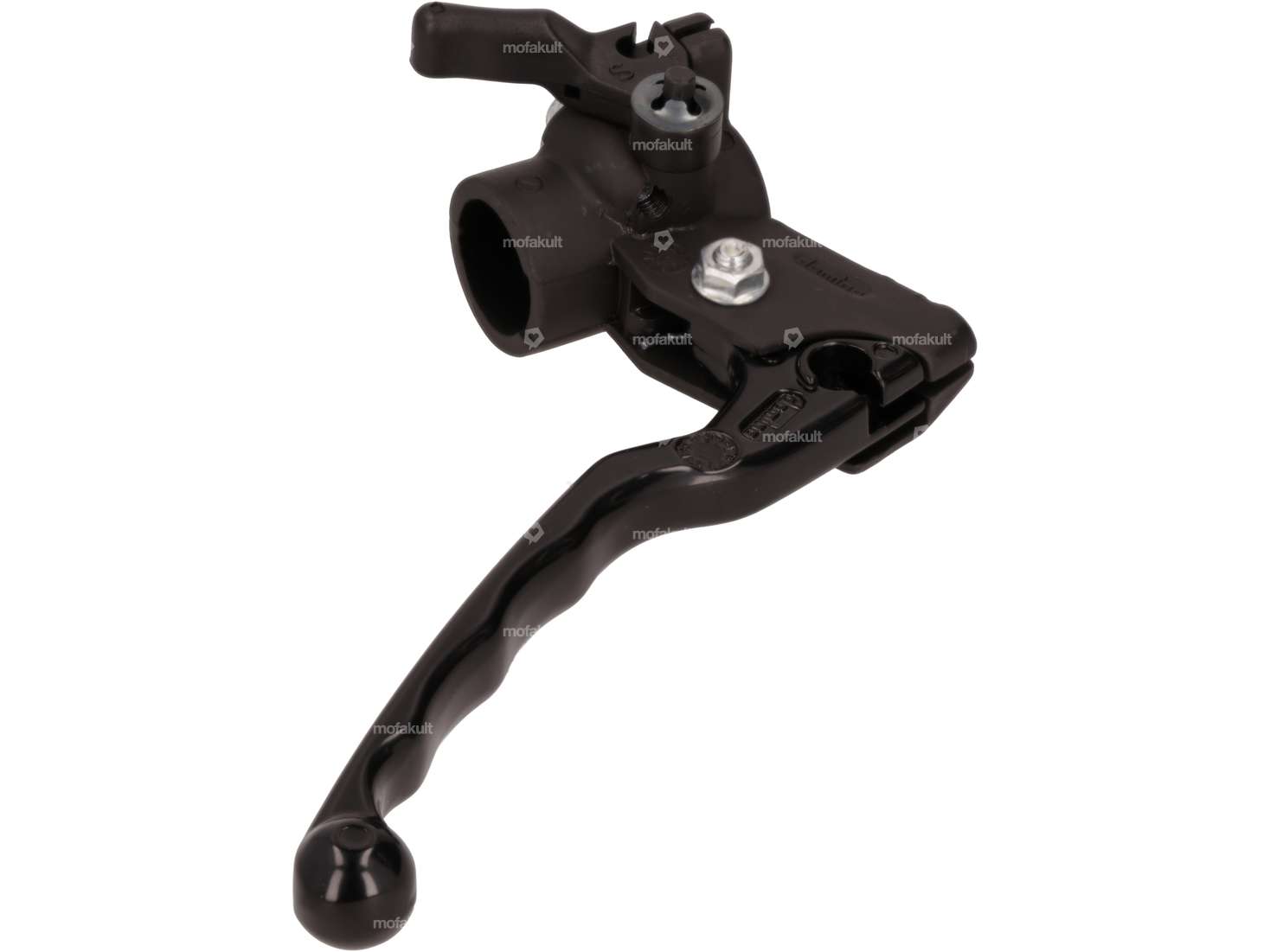

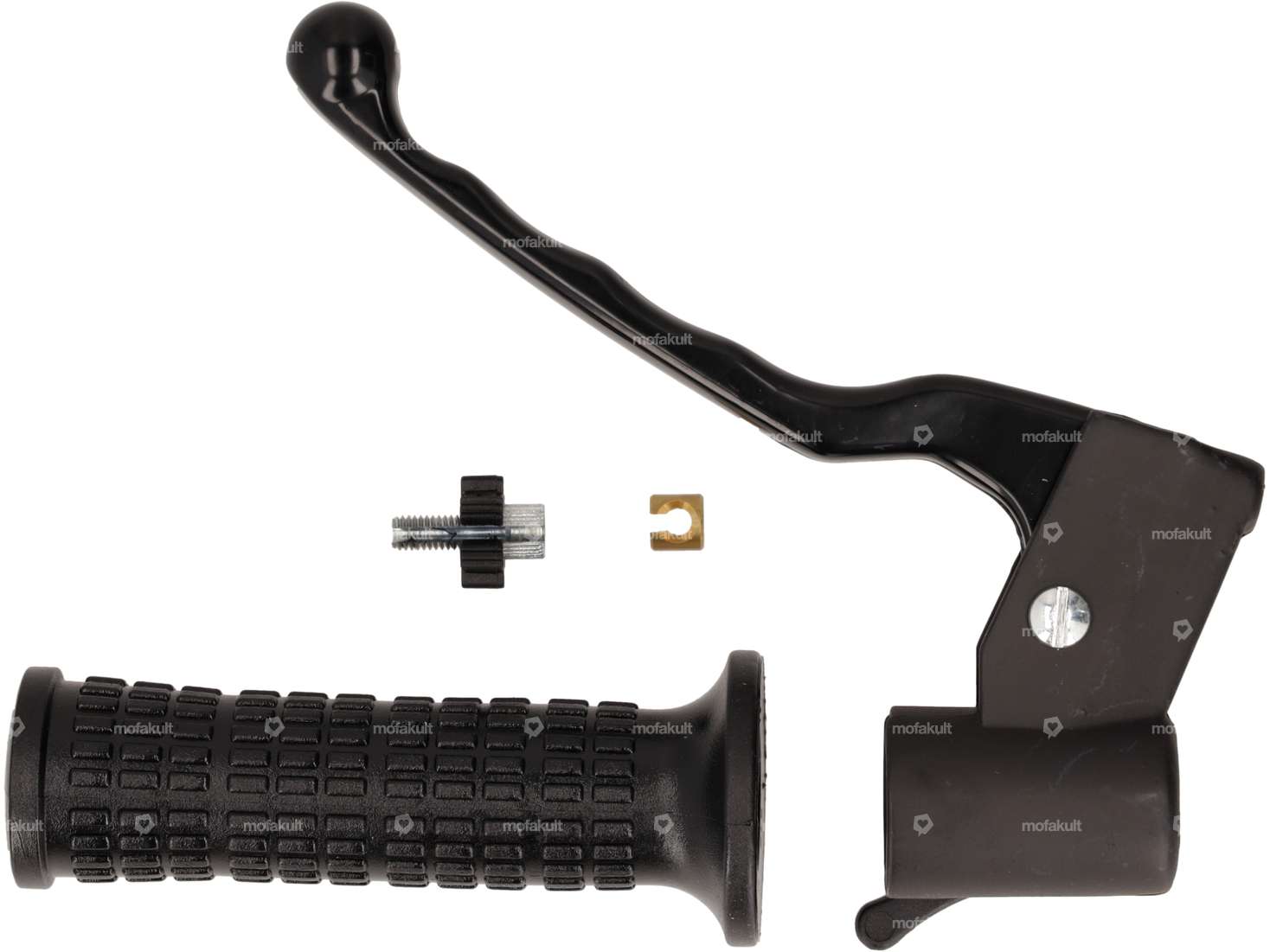

Domino brake lever set left aluminum black | Piaggio Ciao PX, SI

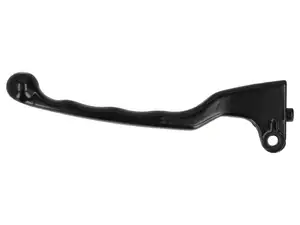

Domino brake lever left (with cam) black | Piaggio Ciao, SI

Manufacturer: Domino · Place of use: left · Material: Aluminum · Surface: varnished · Color: black

Domino lever screw M6x26mm grips | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Domino · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Drive: Slot · Color: silver · Ø shaft: 8 mm · Thread length: 26 mm

Domino return spring left

Spring design: Torsion spring · Manufacturer: Domino

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Number of components: 1 pcs · Area of application: Standard

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Number of components: 6 pcs · Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø outside: 11 mm · Drive: External hexagon · Thread type: M7x1 (standard thread) · Total length: 25 mm · Screw head: Hexagon · Thread length: 19.5 mm · Width across flats SW: 11 mm

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Surface: ribbed · Thread type: FG14.3 (9/16" 20G) · Drive: Outer edge · Color: black · Total length: 118 mm · Width: 51 mm · Height: 29 mm · Reflectors: Yes · Width across flats SW: 15 mm

Stand 14 mm axle (1A quality) | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Stand base - center mount (A): 232 mm · Total width of stand base (B): 200 mm · Wide receptacle (C): 78 mm · Ø Receptacle (D): 14 mm · Color: black · Wide upright foot (F): 20 mm · Total height: 250 mm

Domino throttle grip set aluminum black | Piaggio Ciao, SI

Number of components: 3 pcs · Manufacturer: Domino · Material: Rubber · Surface: powder-coated · Housing material: Aluminum · Material lever: Aluminum · Color: black · Ø inside: 22 mm · Total length: 175 mm · Brake light switch: No

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Germany · Material: Steel · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears · Quantity: 4 pcs · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Color: black · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm

CIF screw set side protection | Piaggio Ciao

Manufacturer: CIF · Material: Spring steel · Material: Steel · Surface: galvanized (blue) · Surface: raw · Number of components: 12 pcs · Drive: Slot · Screw head: Lens head · Color: silver · Area of application: Standard

GPO Support rubber fork swing arm | Piaggio Ciao

Manufacturer: GPO · Material: Rubber · Ø mounting hole: 6.9 mm · Total length: 22.8 mm · Width: 16.25 mm · Color: black · Height: 8.8 mm · Total height: 22.7 mm · Ø outside: 7.9 mm
