Universal

20176

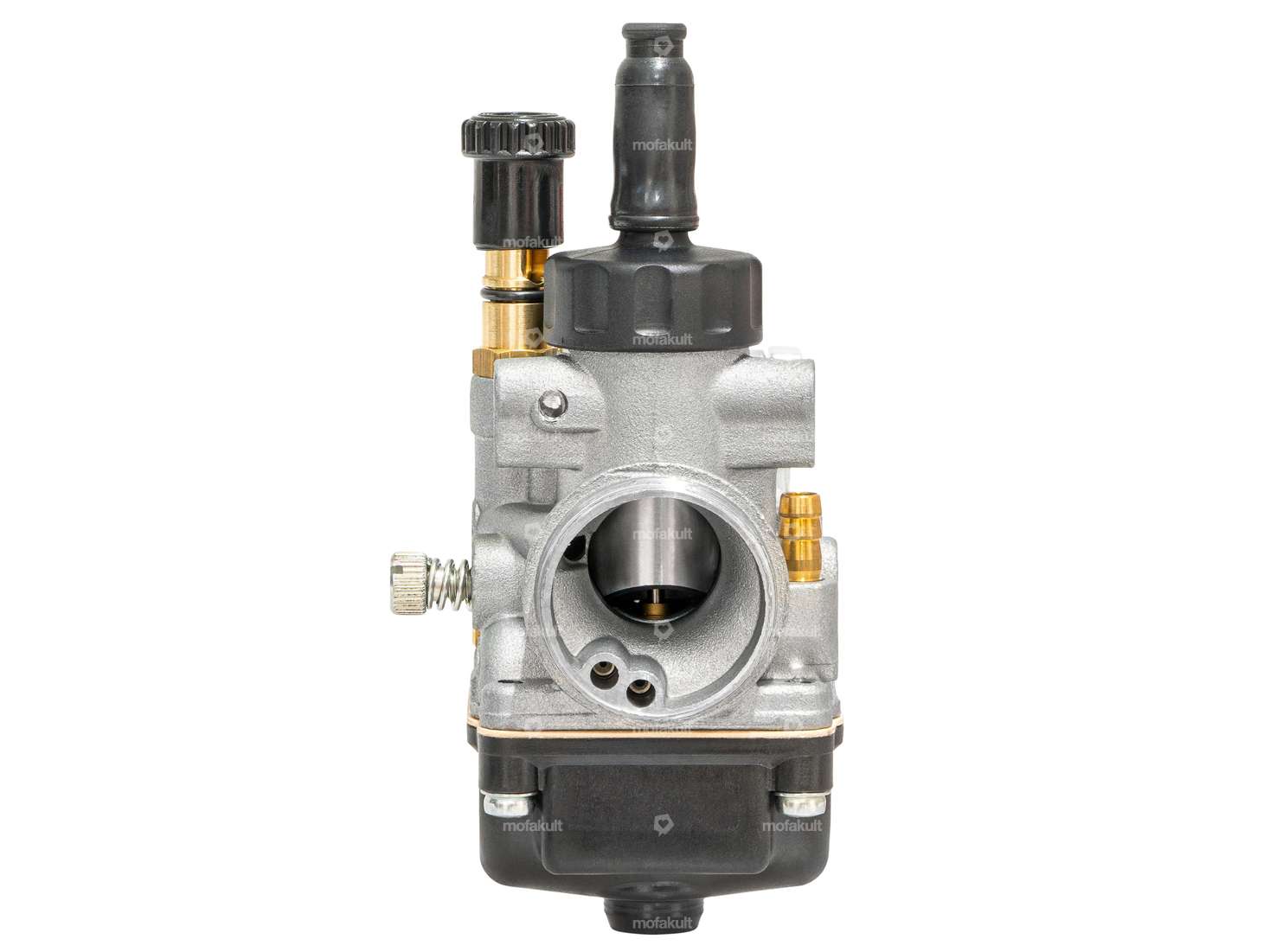

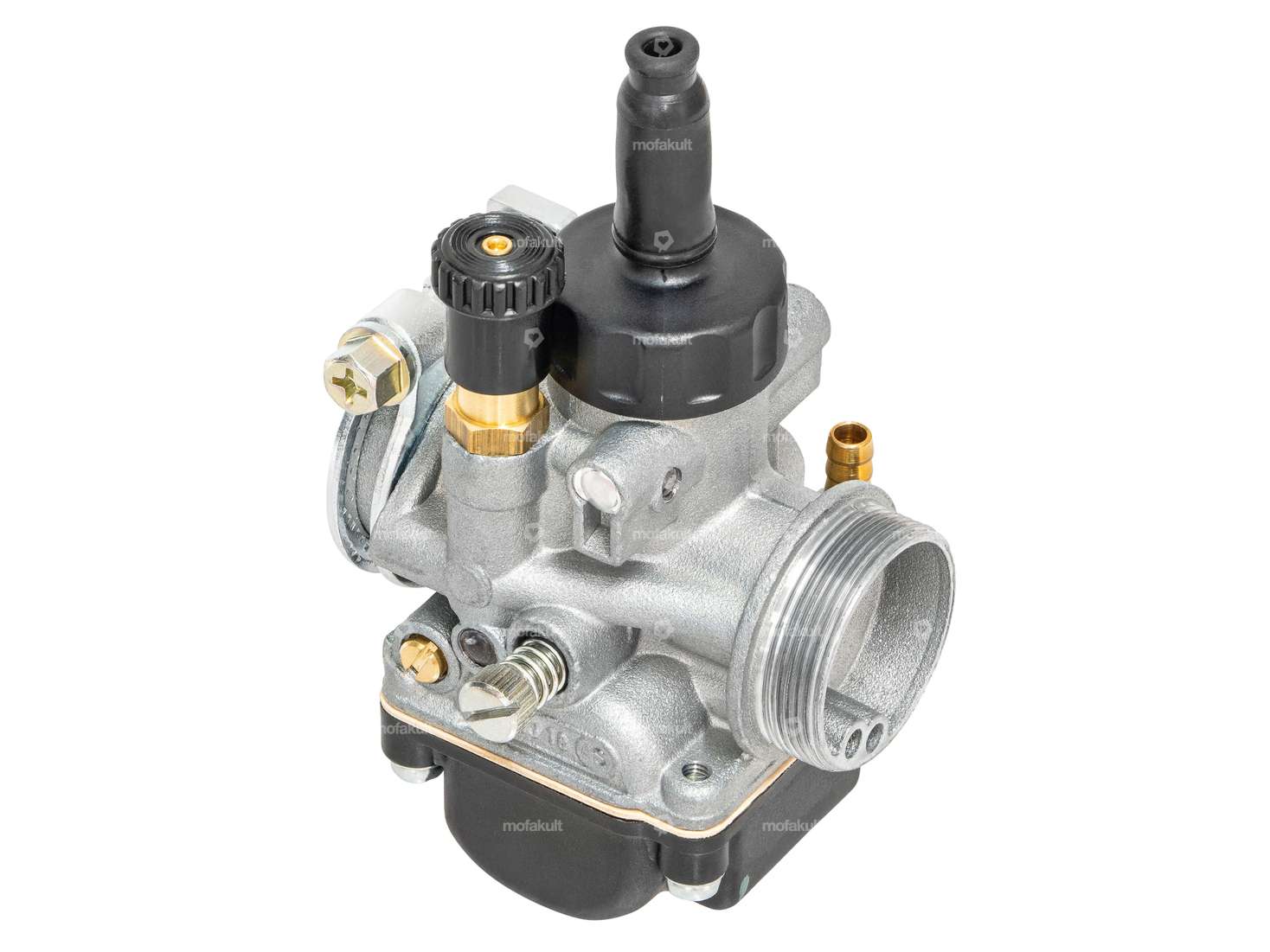

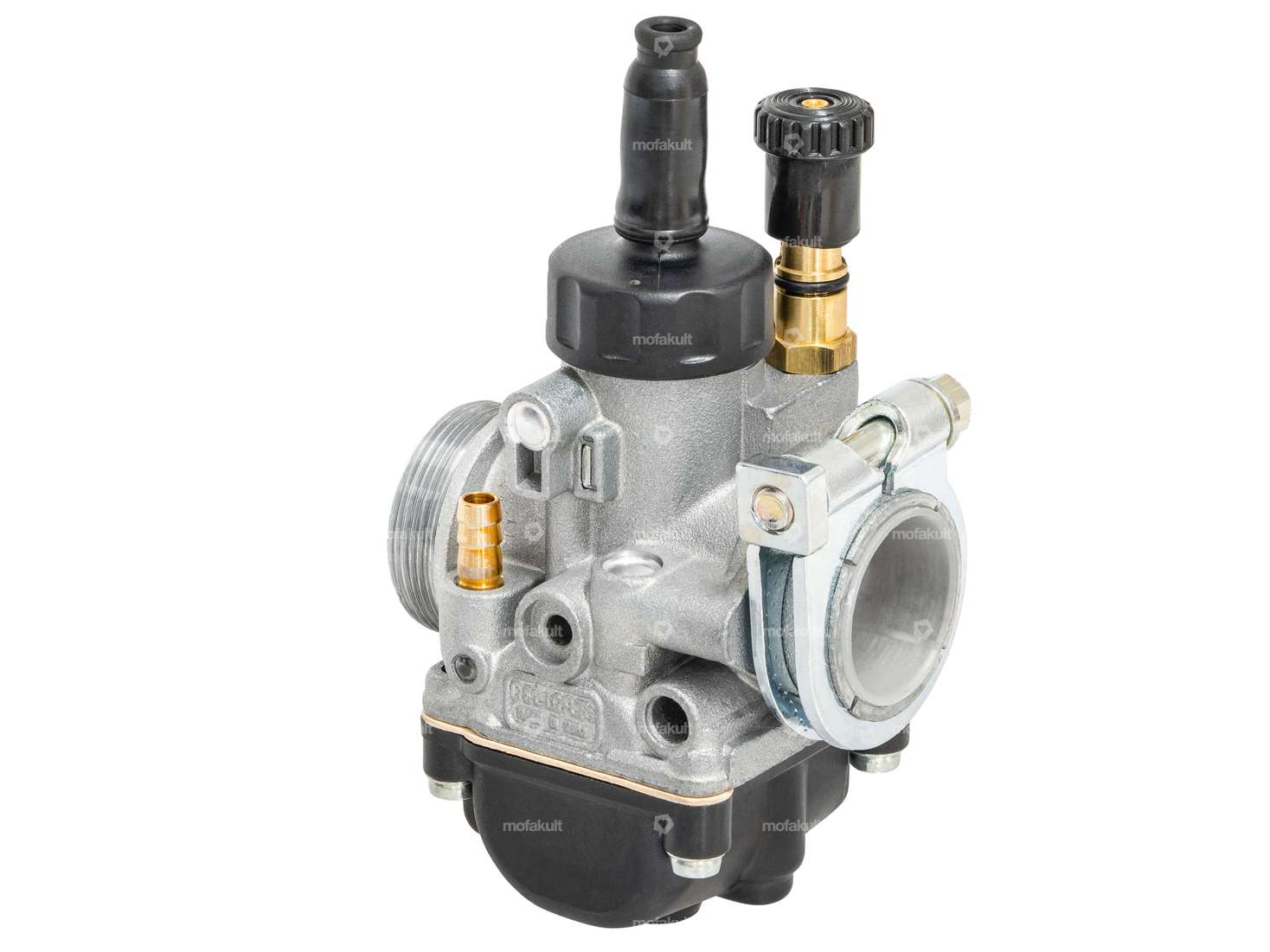

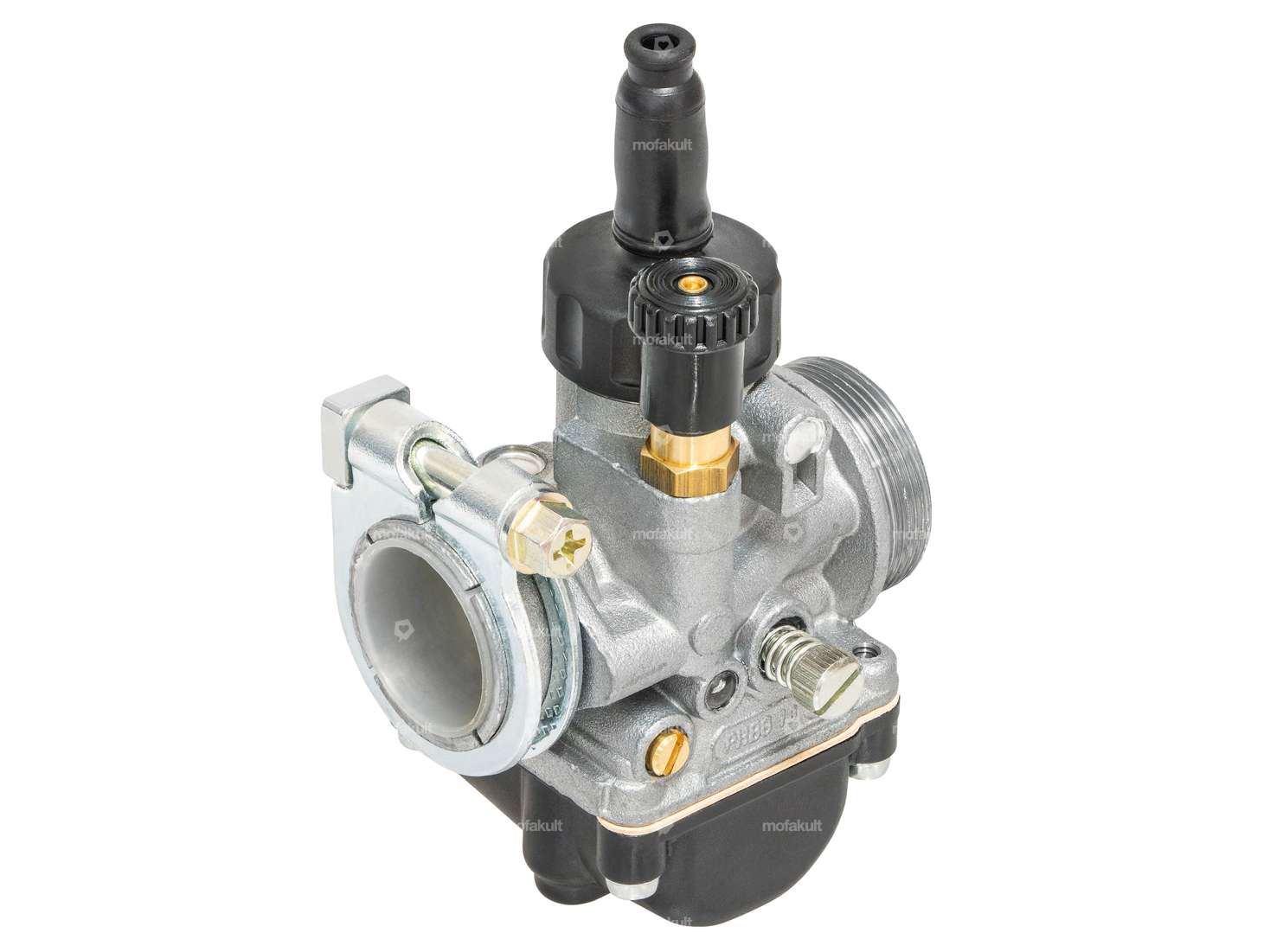

Dell'Orto 18 mm PHBG AS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 159.90

Incl. 25.5% VAT.

Description

18 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main jet size: 85
Side jet size (idle jet): 50
Choked jet size: 55
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 130 mm
Total width: 75 mm

You can find matching nozzles, air filters and intake manifolds in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter18 mm
ManufacturerDell'Orto
MaterialAluminum
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Colorblack
Mounting typePlug connection clamped
Width62 mm
Ø fuel hose connection6 mm, 5.3 mm
Nozzle threadM5x0.8 (standard thread)
Height125 mm
Nozzle size85
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Total length71.5 mm
Area of applicationTuning
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Mixed oil connectionNo
Vacuum connectionNo
Choke controlHand choke
Choke nozzle size55
Nozzle block262AN
CamouflagedNo
Size of secondary nozzle50
