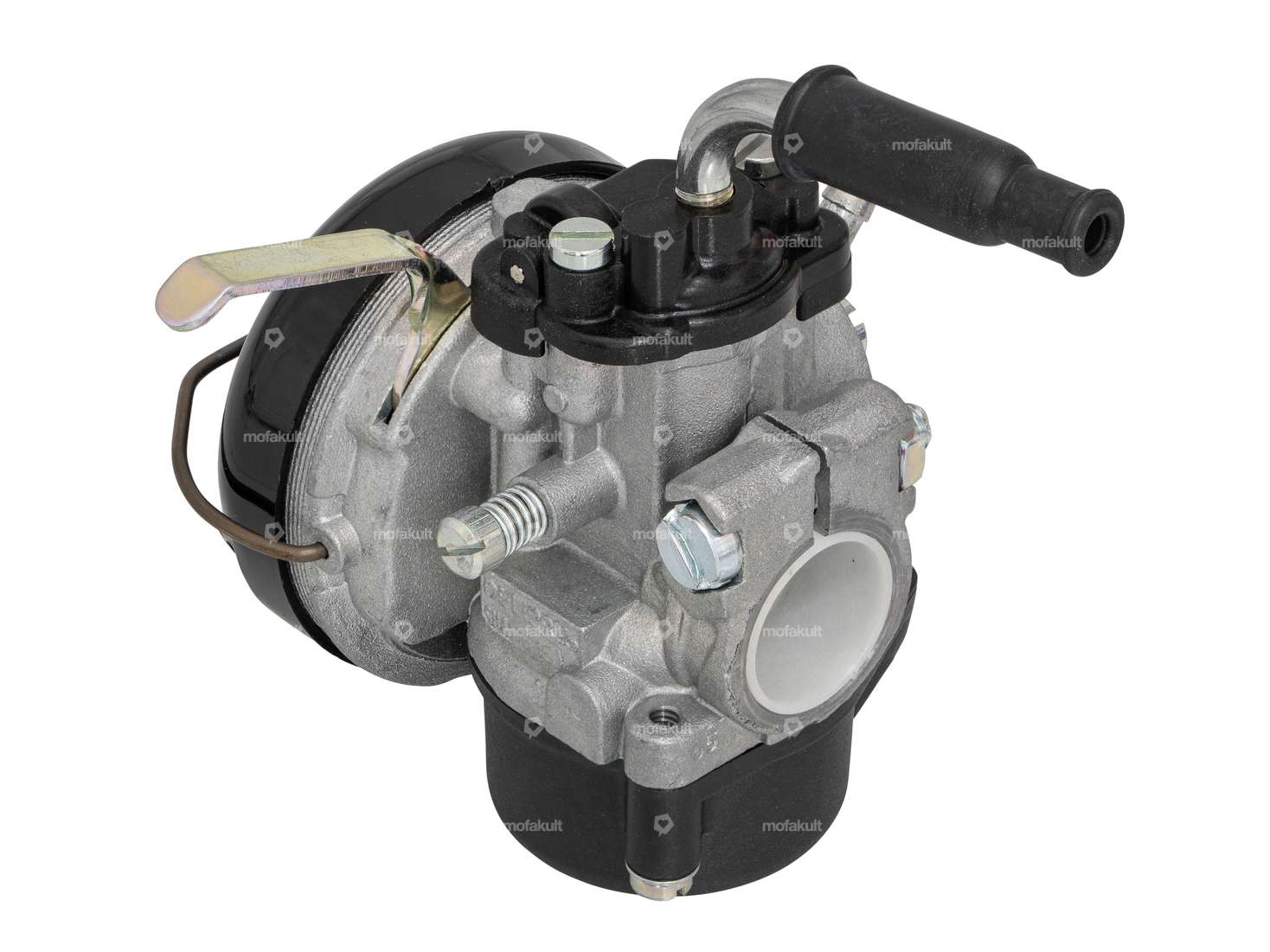

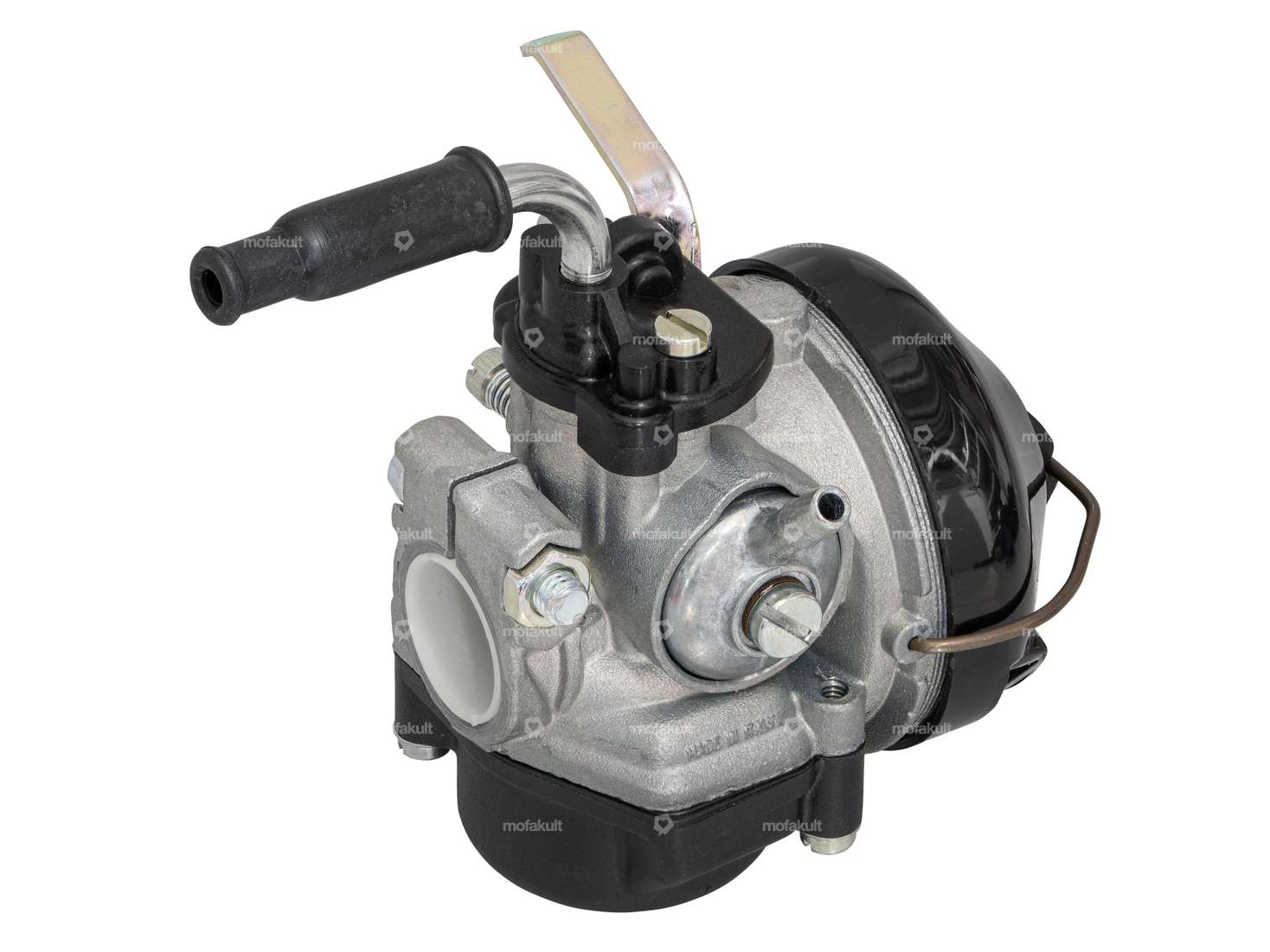

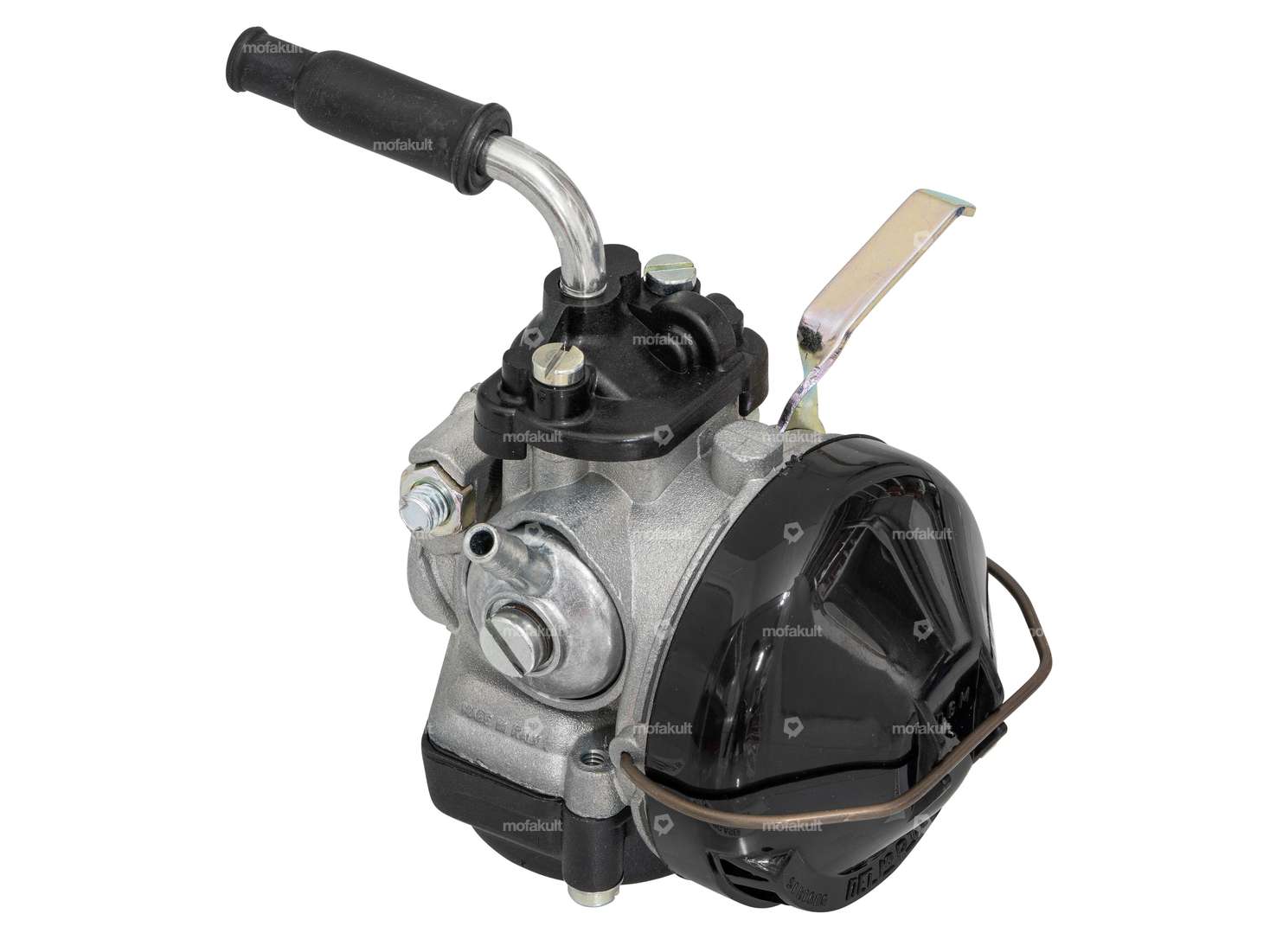

The Dell'Orto 16 / 16 SHA racing carburetor suitable for mopeds with Beta 521 engine such as Cilo Cross 521 & 512, Pony Cross 521 and Pony GTX 521.

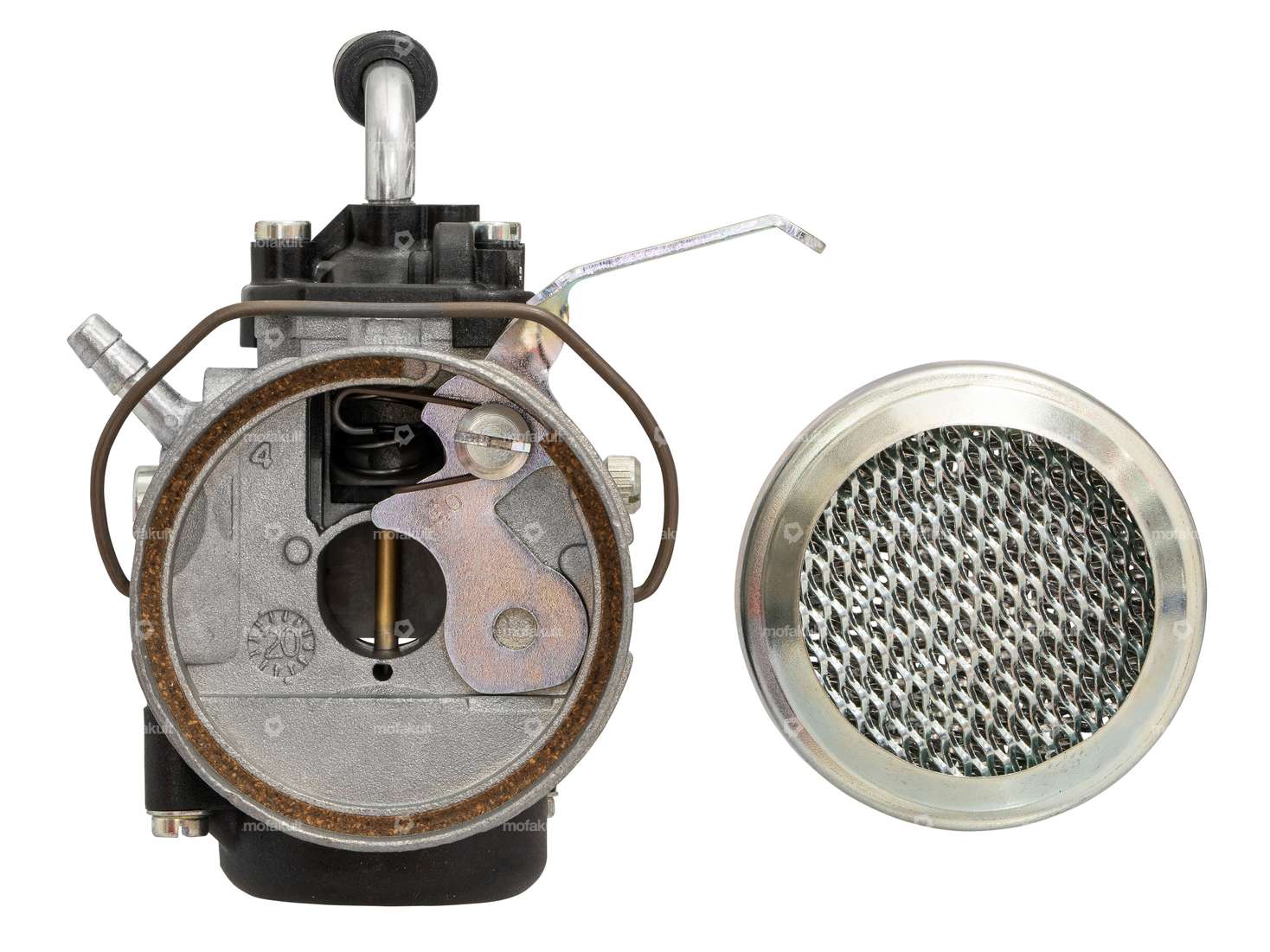

The integrated air filter screen can be easily removed for cleaning purposes.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle). The special choke lever is easy to operate even when the side covers are fitted.
Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 82
Connection diameter of intake manifold: 19 mm (or 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 16 mm
Ø passage on intake manifold side: 16 mm
Total height: 83 mm (without pipe bend)
Total length: 82 mm
Total width: 69 mm
For matching nozzles and alternative air filters, see accessories.
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 16 mm |
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SHA |
| Width | 69 mm |
| Color | black |
| Choke control | Hand choke |
| Height | 83 mm |
| Total length | 82 mm |
| Ø fuel hose connection | 6 mm, 5.1 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 82 |
| Ø without reducing sleeve | 21 mm |
| Mounting type | Plug connection clamped |
| Ø Inside entrance | 16 mm |
| Ø Output inside | 16 mm |
| Ø Air filter connection | 59 mm |
| Ø Internal connection | 19 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Camouflaged | No |
| Area of application | Tuning |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (engine) |
