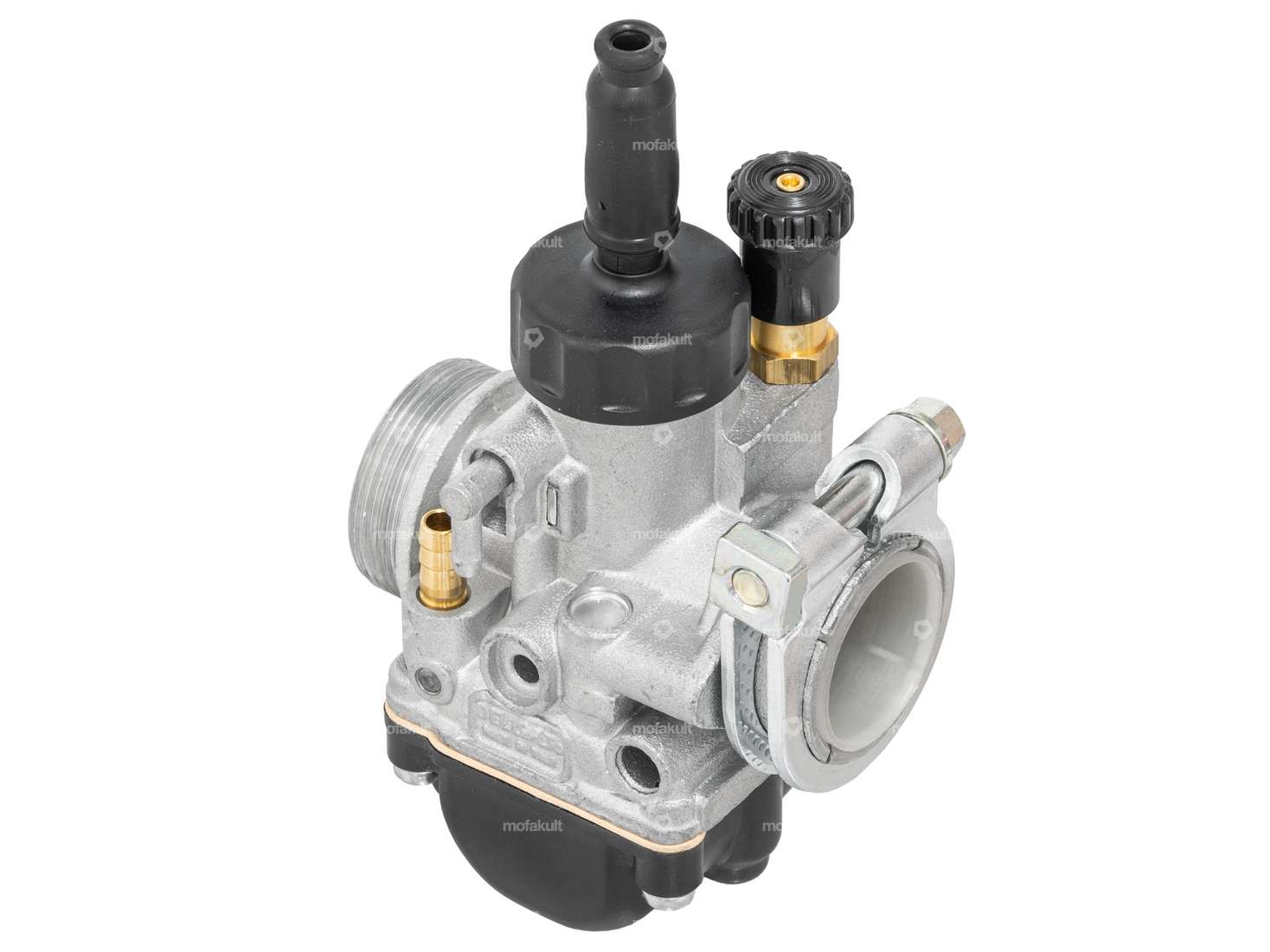

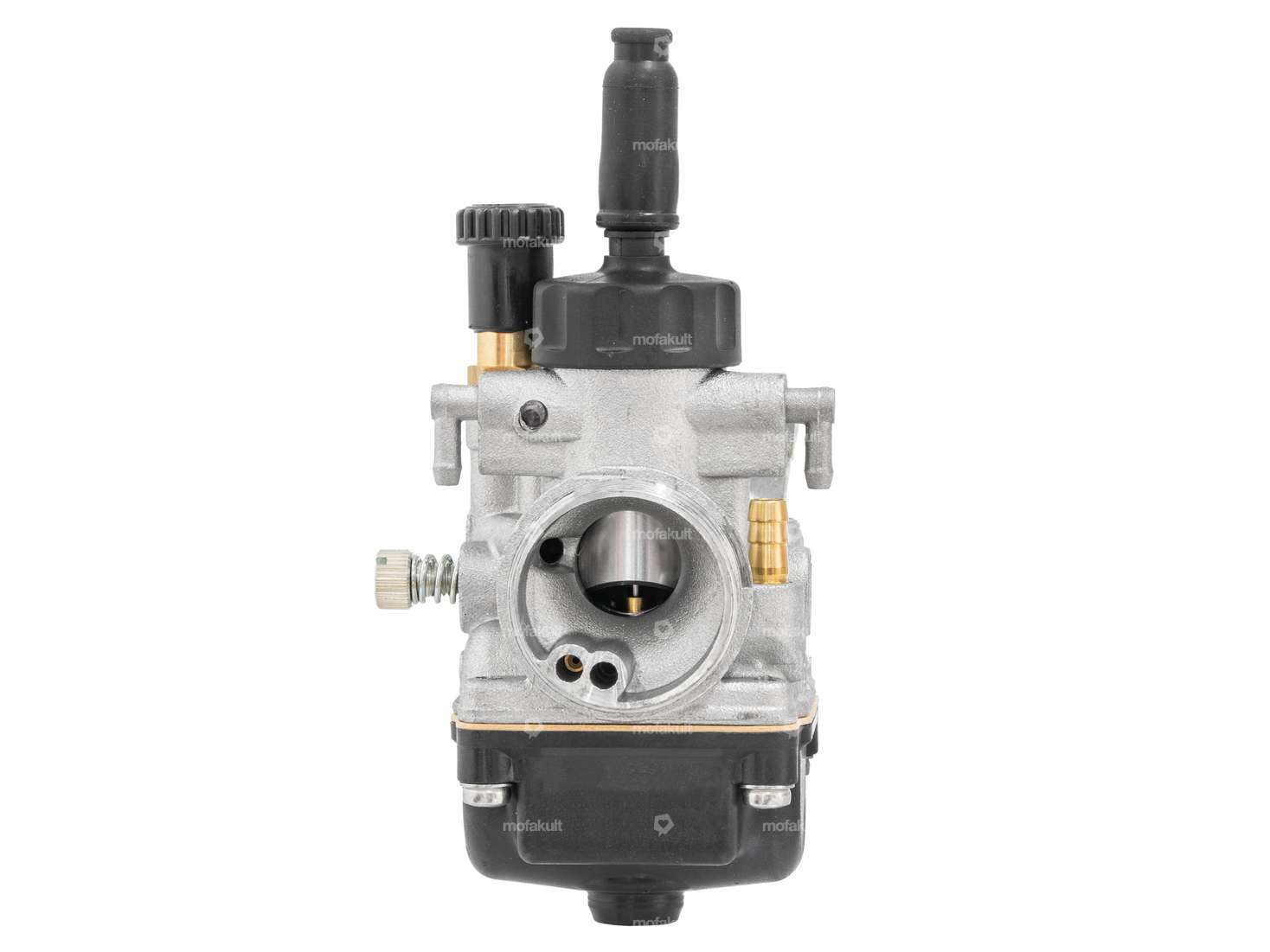

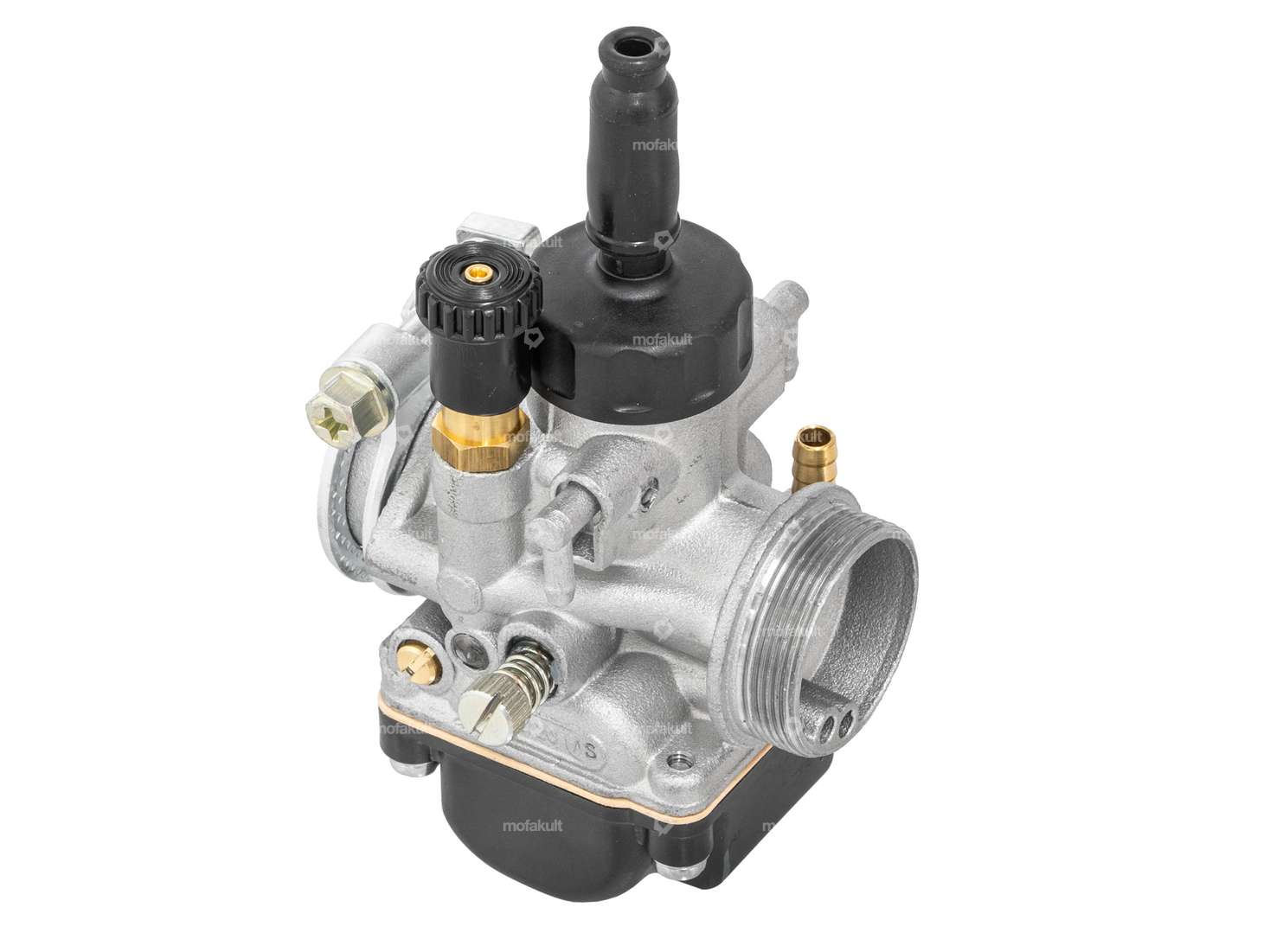

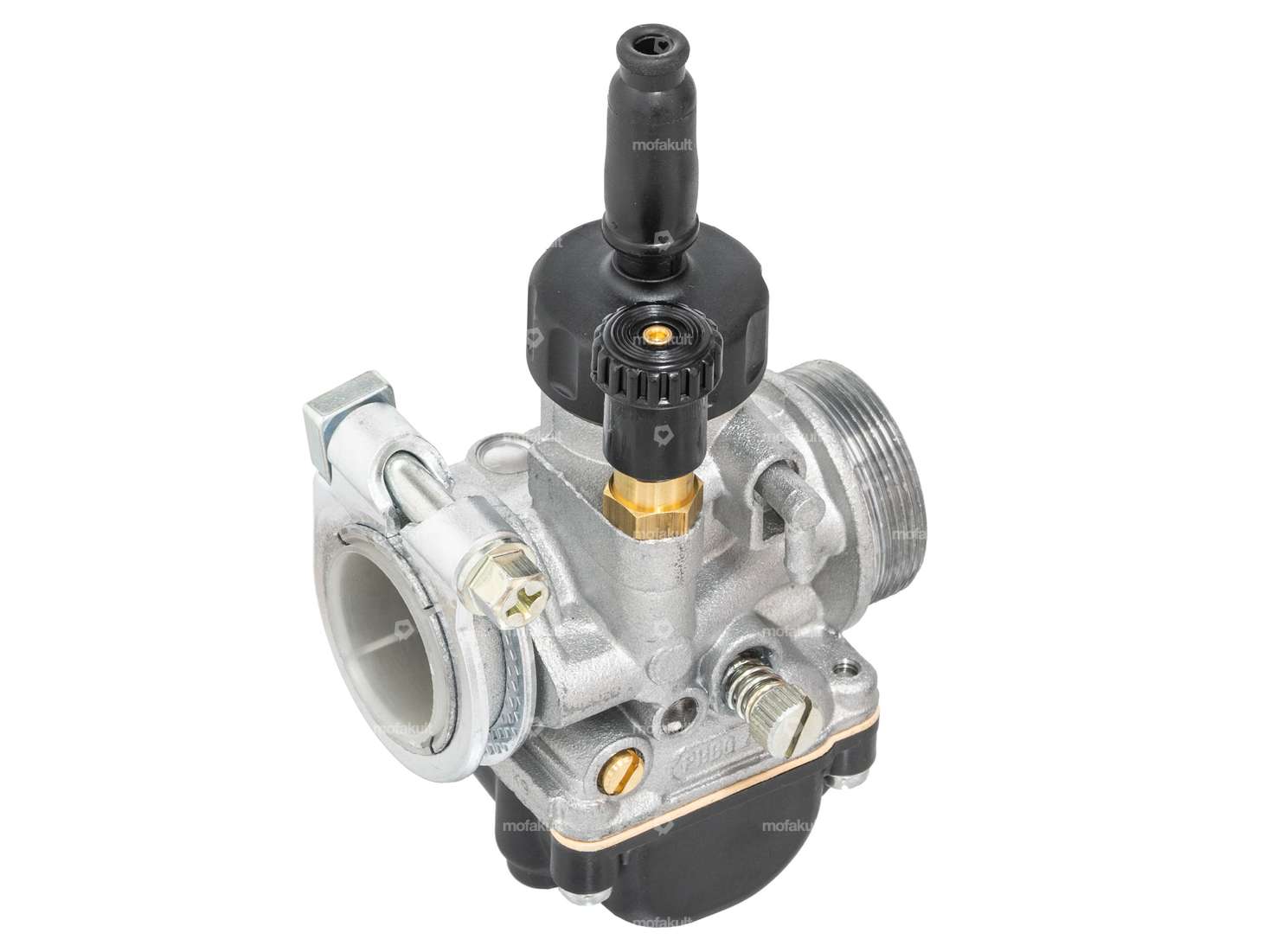

15 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.
The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.
The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.
Main thread size (M5): 70 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 60
Air filter connection diameter: 32 mm (M32 x 1.25)
Intake port connection diameter: 24 mm (or 26 mm after removing the reducing sleeve)
Total height: 125 mm
Total width: 75 mm
Matching nozzles, air filters and intake manifolds can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 15 mm |
| Manufacturer | Dell'Orto |
| Component group Carburetor | Carburetor complete |
| Mounting type | Plug connection clamped |
| Carburetor type | PHBG AS |
| Width | 75 mm |
| Ø without reducing sleeve | 26 mm |
| Height | 125 mm |
| Ø Internal connection | 24 mm |
| Ø Air filter connection | 32 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Ø fuel hose connection | 6 mm |
| Choke control | Hand choke |
| Choke nozzle size | 60 |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 70 |
| Size of secondary nozzle | 50 |
| Area of application | Tuning |
Accessories & related products

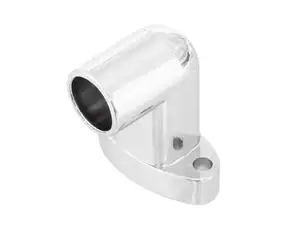

18.5 mm intake manifold Dell'Orto PHBG | Puch E50
Material: Aluminum · Total height: 57 mm · Surface: polished · Ø inside: 18.8 mm · Color: Chrome · Total length: 40 mm · Height flange center hole: 45 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø External connection: 23.9 mm · Camouflaged: No · Hole spacing inlet: 38 mm · Area of application: Tuning
EUR 21.90
swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Quantity: 10 pcs · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Total length: 8 mm
EUR 25.60

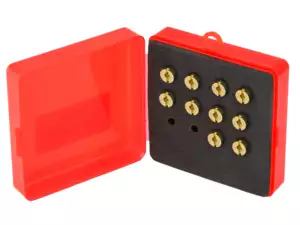

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Quantity: 10 pcs · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110 · Total length: 8 mm
EUR 25.60
swiing® revival nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100
EUR 25.60
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120
EUR 4.30

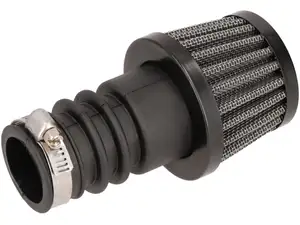

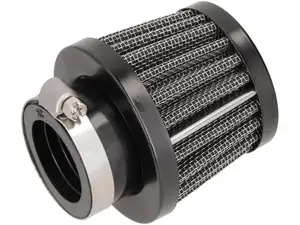

66HEROES Mushroom air filter grille 28 - 32 mm black
Manufacturer: 66HEROES · Material: Metal · Material: Rubber · Color: black · Ø outside: 60 mm · Filter type: Grille · Total length: 114 mm · Ø Internal connection: 28 mm · Ø Internal connection: 32 mm · Mounting type: Plug connection clamped · Camouflaged: No · Area of application: Tuning
EUR 19.50
Dell'Orto secondary nozzle PHBG (size 30 - 70) of your choice
Manufacturer: Dell'Orto · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Nozzle type: Secondary nozzle · Drive: Slot · Nozzle size: 30 · Nozzle size: 35 · Nozzle size: 40 · Nozzle size: 45 · Nozzle size: 50 · Nozzle size: 55 · Nozzle size: 60 · Nozzle size: 65 · Nozzle size: 70
EUR 6.00
Moped fans also bought
Magura lever screw M5x18 mm
Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 21.5 mm · Drive: External hexagon · Drive: Slot · Ø External head: 8.8 mm · Thread type: M5x0.8 (standard thread) · Thread length: 8.5 mm · Ø shaft: 5.9 mm · Shank length: 9 mm · Width across flats SW: 8 mm
EUR 3.55
swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Quantity: 10 pcs · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Total length: 8 mm
EUR 25.60
NSK BO15 shoulder ball bearing 15/40/10 (A4502)
Bearing cage: Brass cage ball-guided · Stock number: BO15 · Inner ring width: 10 mm · Manufacturer: NSK · Material: Brass · Material: Steel · Surface: blank · Ø inside: 15 mm · Bearing type: Shoulder bearing · Ø outside: 40 mm · Area of application: Standard · Ball bearing closed: No · Width: 10 mm · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001
EUR 30.50

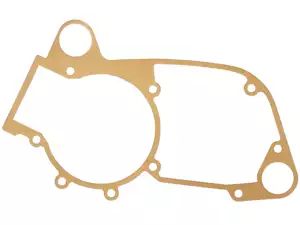

swiing® revival engine seal | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1884)
Thickness: 0.4 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Ø inside: 87 mm · Color: sand-colored · Total length: 233 mm · Number of components: 1 pcs · Number of fixing points: 9 pcs · Width: 140 mm · Pony OEM number: A1884 · Sachs OEM no.: 0250 149 100
EUR 6.65
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Place of use: Crankshaft · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Width: 5.5 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100
EUR 9.70

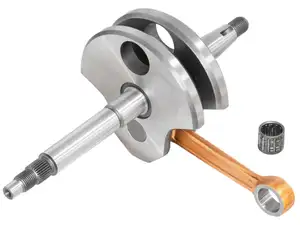

Jasil crankshaft | Sachs 503 AB-CH / ABL CH (A2901 / A2902)
