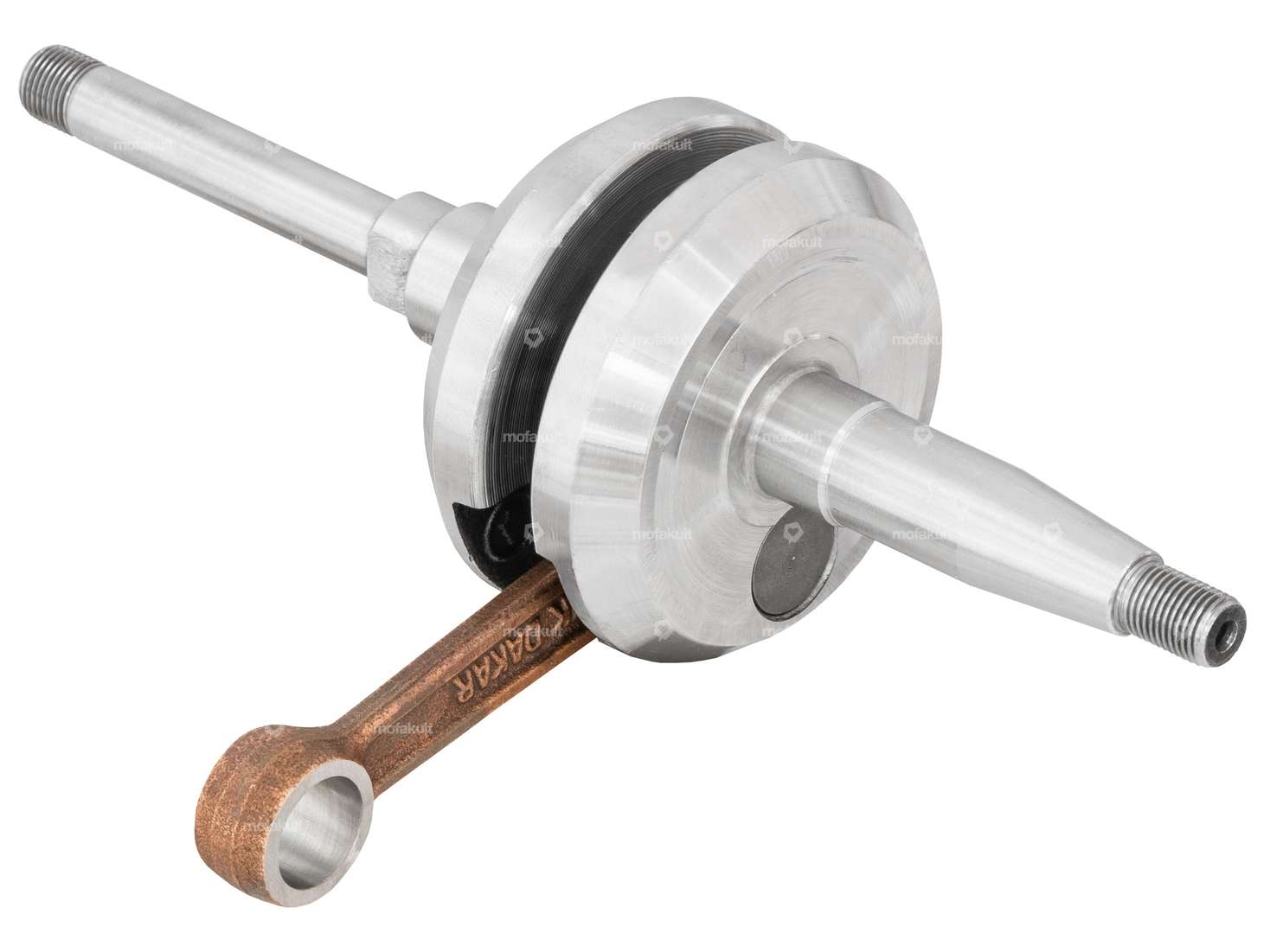

Crankshaft suitable for Peugeot 103 engines.
High-quality full cheek crankshaft for maximum pre-compression.
The shaft has a small cone with which the electronic ignition can be fitted.
Stroke: 39.1 mm
Total length of coupling-side cheek pin: 70 mm
Total length of coupling-side cheek pin: 97.8 mm
Ø 1st shoulder (coupling-side cheek pin): 22 mm
Ø 2nd shoulder (coupling-side cheek pin: 10 mm
Thread on the coupling side: M10x1
Thread on the coupling side: M11x1

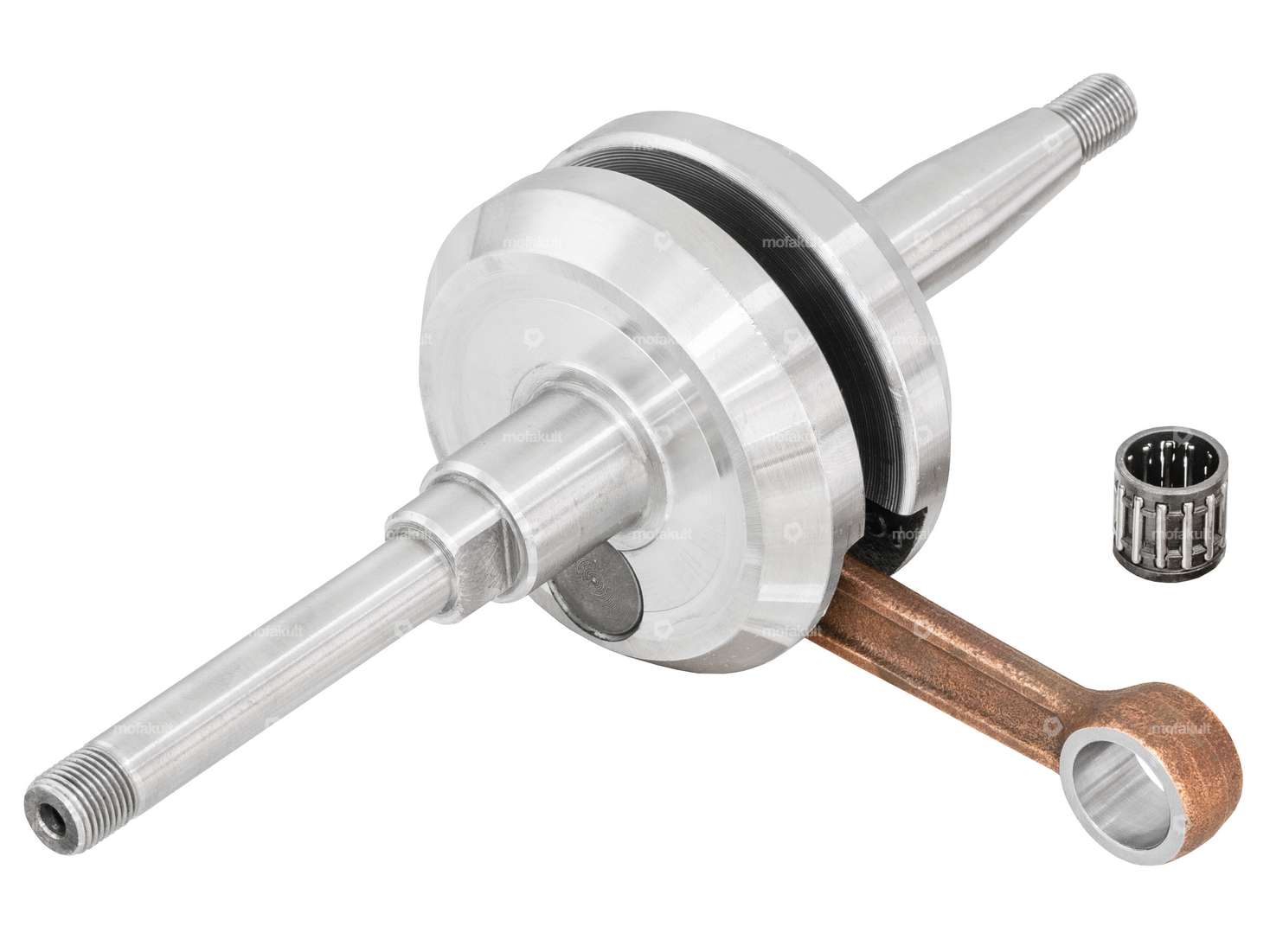

The scope of delivery includes a reinforced needle bearing with the following dimensions: 12/15x15 mm
Details
| Cheek type | Full cheeks |
| Crankshaft stroke | 39.1 mm |
| Total length of crankpin on clutch side | 97.8 mm |
| Total length crankpin ignition side | 70 mm |
| Dimension needle bearing | 12 / 15 x 15 mm (axe 12) |
| Thread type | MF10x1 (fine pitch thread), MF11x1 (fine pitch thread) |
| Area of application | Tuning |
Suitable for the following models
| Peugeot |
