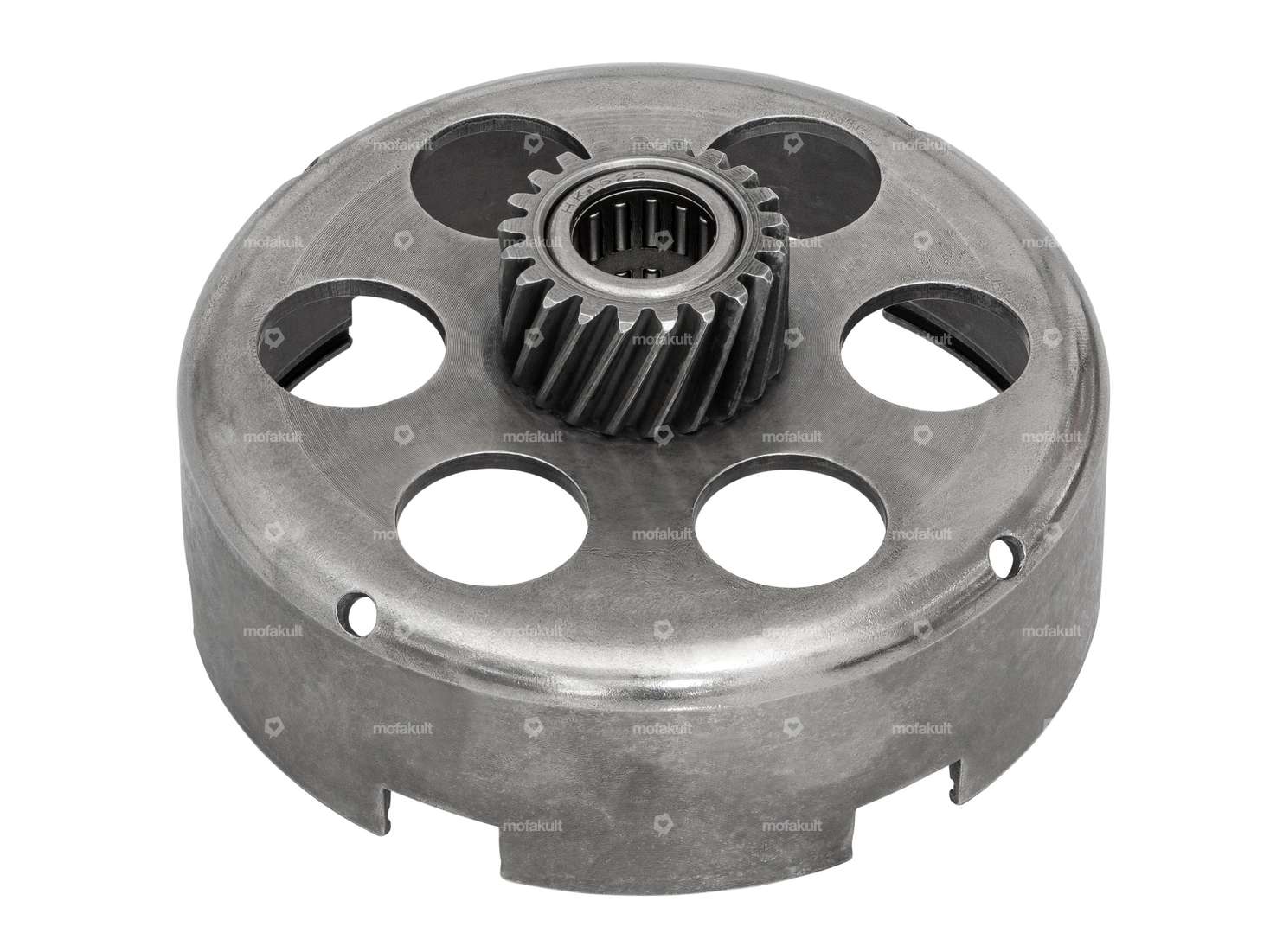

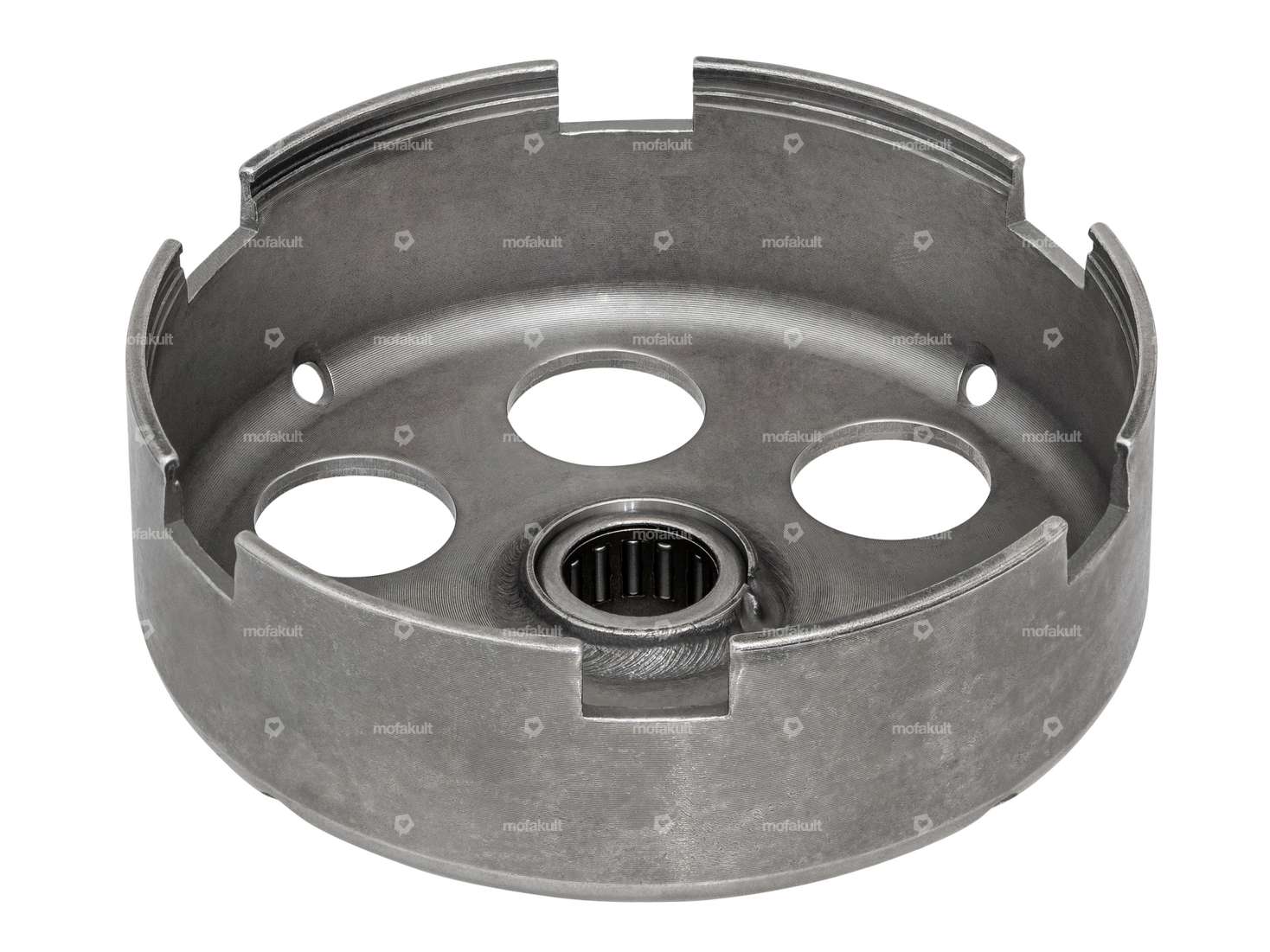

Lightened clutch basket with 21 teeth suitable for Puch Maxi mopeds with 1-speed e50 engine.
Special design with needle bearing. This clutch basket was developed for heavily souped-up engines where the brass bushing bearing reaches its limits.
Advantages of the needle bearing:
- Higher speeds possible
- Smooth, even running
- Optimal lubrication
- Better heat dissipation
Optimal adjustment of the clutch basket clearance is essential. Inadequate adjustment can destroy the bearing in a very short time.

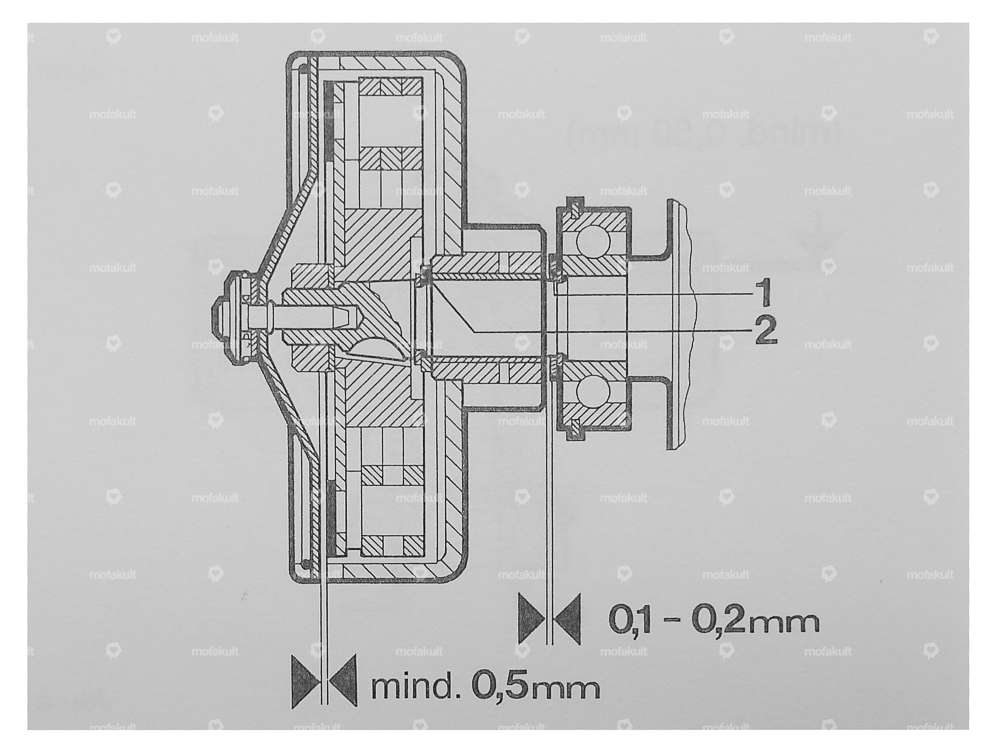

Note the corresponding dimensions in Figure 3.
You will find suitable thrust washers in the accessories, which are fitted in front of and behind the clutch basket.
Details
| Material | Steel |
| Color | graphite colors |
| Toothing type | helical toothed |
| Ø Receptacle | 30.5 mm |
| Ø inside | 15 mm |
| Number of teeth | 21 pcs |
| Recording type | Interlocking |
| Height | 49.5 mm |
| Ø outside | 99.6 mm |
| Area of application | Tuning |
Suitable for the following models
| Puch | E50 |
