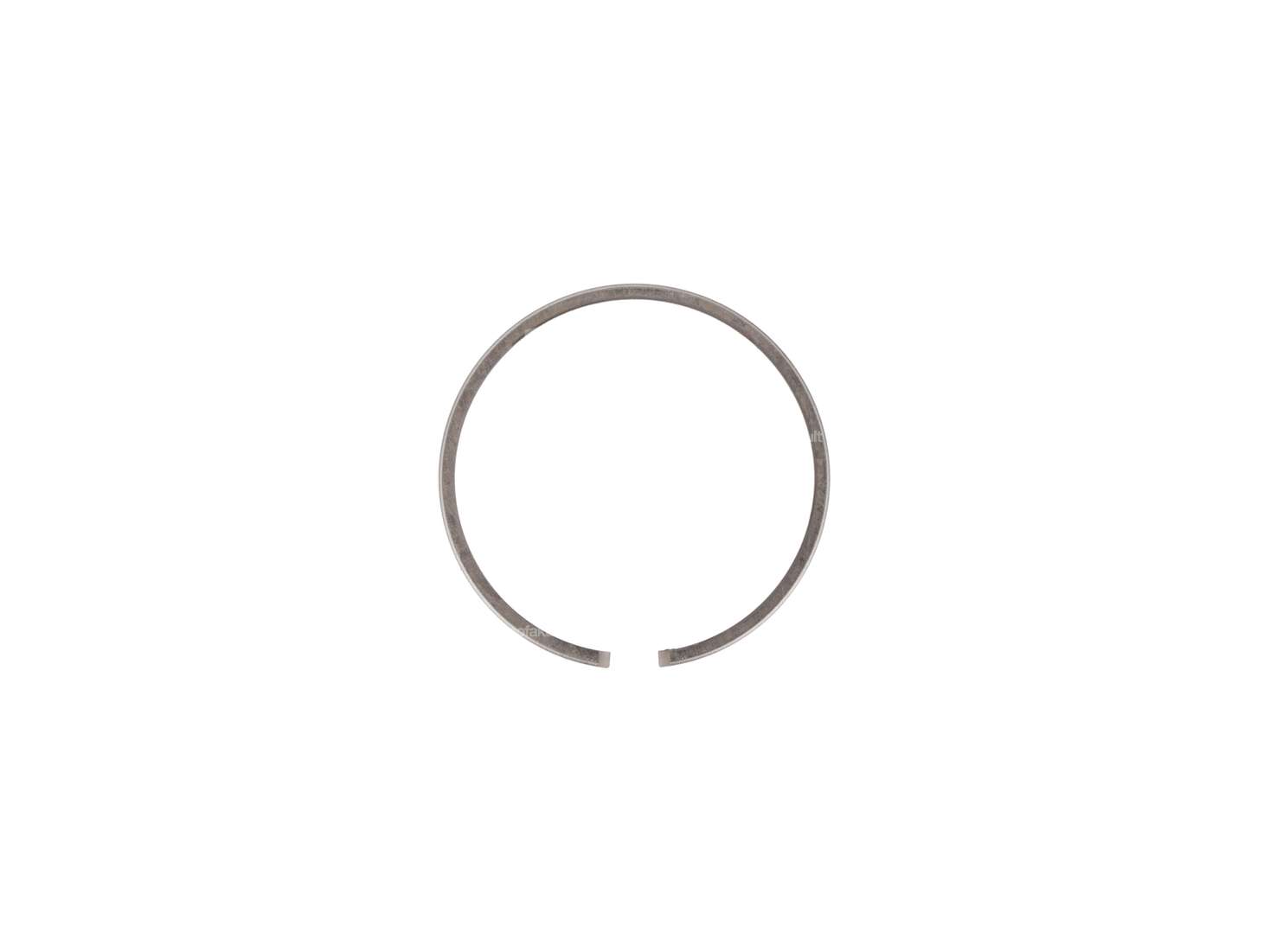

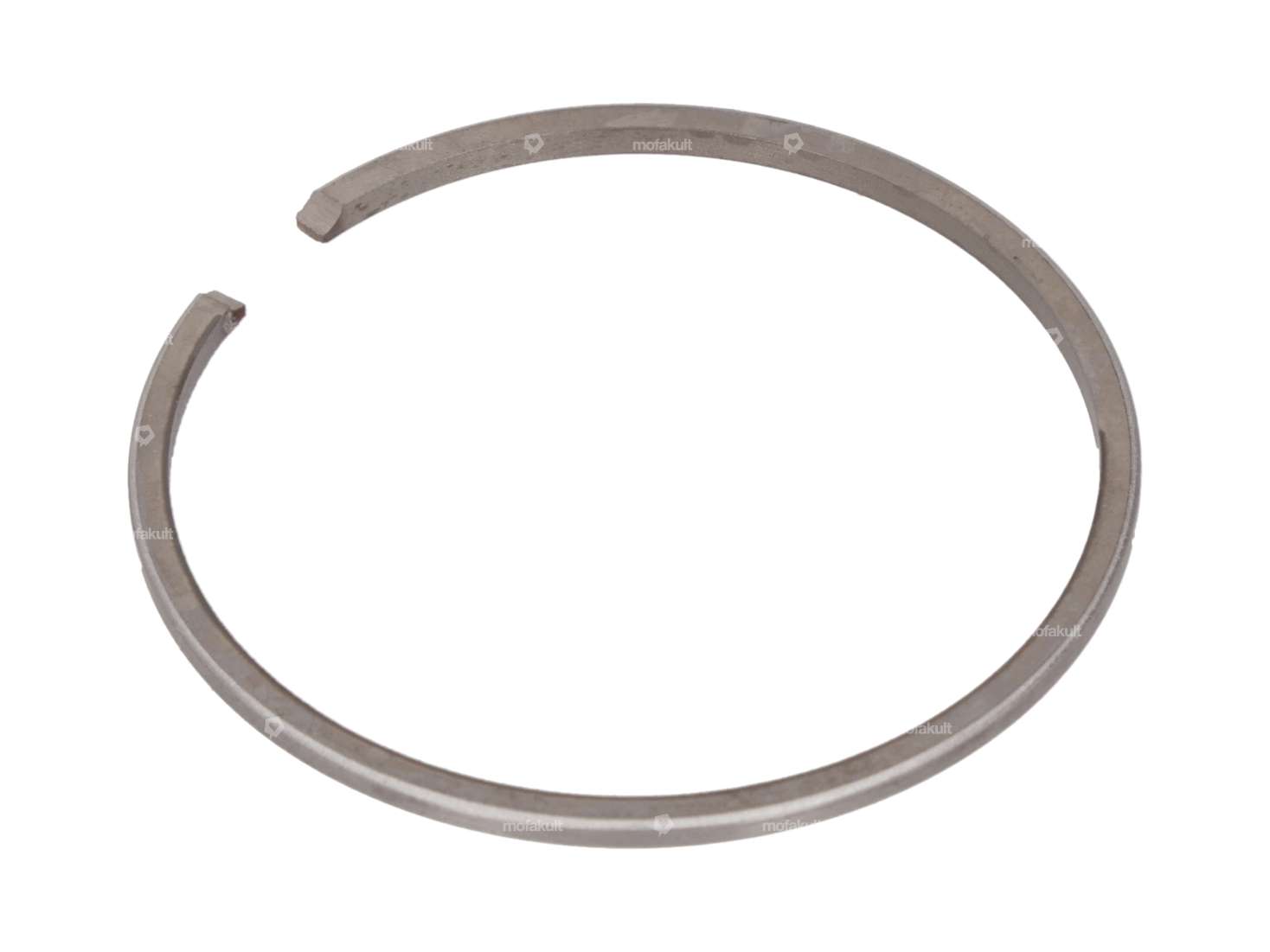

Athena piston ring 38.4 x 1.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Athena 38.4 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Surface: sandblasted · Nominal diameter: 38.4 mm · Manufacturer: Athena · Number of fixing points: 3 pcs · Camouflaged: No · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø cylinder neck: 45.7 mm · Area of application: Tuning · Ø Outlet outside: 22.5 mm · Ø piston pin (B): 10 mm · Ø outlet inside: 18 mm · Outlet type: clamped · Hole pattern [mm]: 35 x 55 · Decompressor: Yes

Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Athena · Ø outside piston (A): 38.355 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston weight: 80 g

GPO fork lock | Puch

Width: 17 mm · Ø rotating part: 12 mm · Manufacturer: GPO · Wide locking block: 4.1 mm · Locking block length: 15.3 mm · Material: Brass · Material: Spring steel · Material: Steel · Surface: blank · Ø outside: 12 mm · Total length: 40.8 mm · Length of turned part: 25.6 mm · Ø Pin: 8 mm

GPO Tank cap plastic black | Puch Maxi N

Height: 35.2 mm · Manufacturer: GPO · Material: Plastic · Color: black · Fuel filler cap: Plug 30 mm · Lockable: No · Vented: Yes · Ø External head: 46.9 mm

Washer M7 galvanized

Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 7 mm · Thread size: M7

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

GPO bulb 6V - 15/15W (BA20d) 2-filament full/dipped beam

Manufacturer: GPO · Color: white · Bulb holder: BA20d · Ø base: 20 mm · Tension: 6 V · Total length: 62 mm · Performance: 15 W · Test mark: none · Ø Lamp head: 35 mm · LED: No

Dell'Orto 90° carburetor pipe bend set M6x0.75

Material: Brass · Surface: nickel-plated · Total length: 43 mm · Total length: 52 mm · Height: 27 mm · Manufacturer: Dell'Orto · Ø outside: 6 mm · Width across flats nut: 7 mm · Component group Carburetor: Adjusting screws, float, etc. · Internal thread: MF5x0.75 (fine pitch thread) · Thread type: MF6x0.75 (fine pitch thread) · Angle: 90 °

Lusito brake lever left / right black

Manufacturer: Lusito · Material: Aluminum · Color: black

TAYA chain lock pedal chain

Chain pitch: 1/2" x 1/8" · Chain type: 410 · Manufacturer: TAYA · Material: Steel · Color: black · Number of chain links: 1 pcs · Chain lock type: Spring lock

Athena gasket set 38.4 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Number of components: 2 pcs · Ø cylinder: 38.4 mm · Area of application: Tuning · Decompressor: Yes

38.4 mm gasket cylinder head graphite | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Netherlands · Material: Graphite / Graphite · Number of components: 1 pcs · Thickness: 0.6 mm · Ø cylinder: 38.4 mm · Area of application: Original · Area of application: Standard
