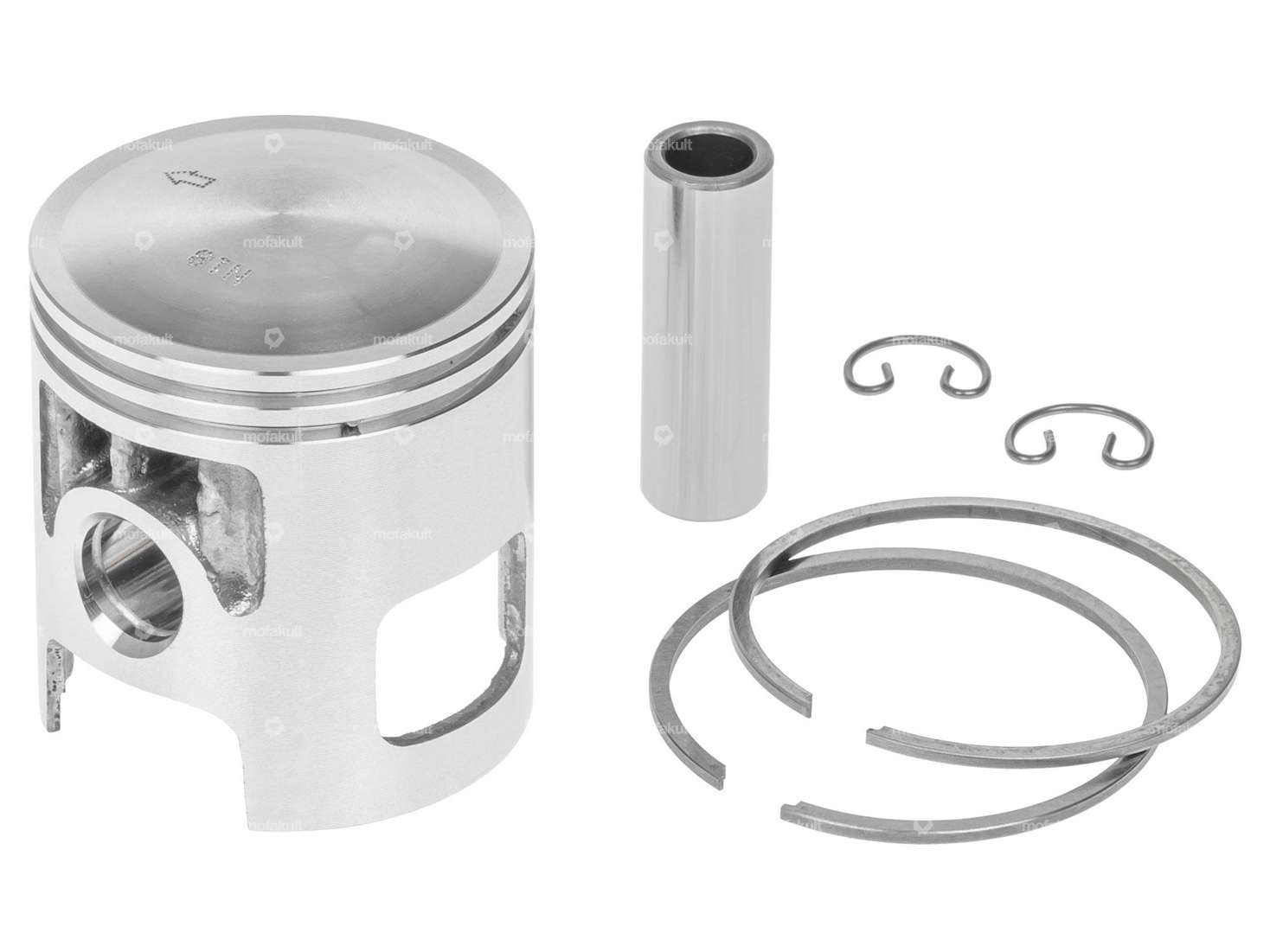

45 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for various Puch mopeds / mopeds with Athena AJH cylinders.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 45 mm |
| Manufacturer | Athena |
| Ø outside piston (A) | 44.91 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 25 mm |
| Curvature (D) | 2.8 mm |
| Total piston height (E) | 50.8 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Tolerance group | C |
| Weight piston kit | 95 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
Athena 45 mm cylinder kit incl. diaphragm AJH | Puch
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Nominal diameter: 45 mm · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Inlet window: 38 x 25 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Area of application: Tuning · Decompressor: No · Camouflaged: No
EUR 362.90
Athena piston AJH 45 mm #A | Puch
Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.9 mm · Ø piston pin (B): 12 mm · Compression height (C): 25 mm · Curvature (D): 2.8 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Weight piston kit: 94 g
EUR 78.60
Athena piston 45 mm AJH #B | Puch
Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.93 mm · Ø piston pin (B): 12 mm · Compression height (C): 24.9 mm · Curvature (D): 2.82 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: B · Weight piston kit: 94 g
EUR 78.60
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 24.50
