For: Piaggio

20269

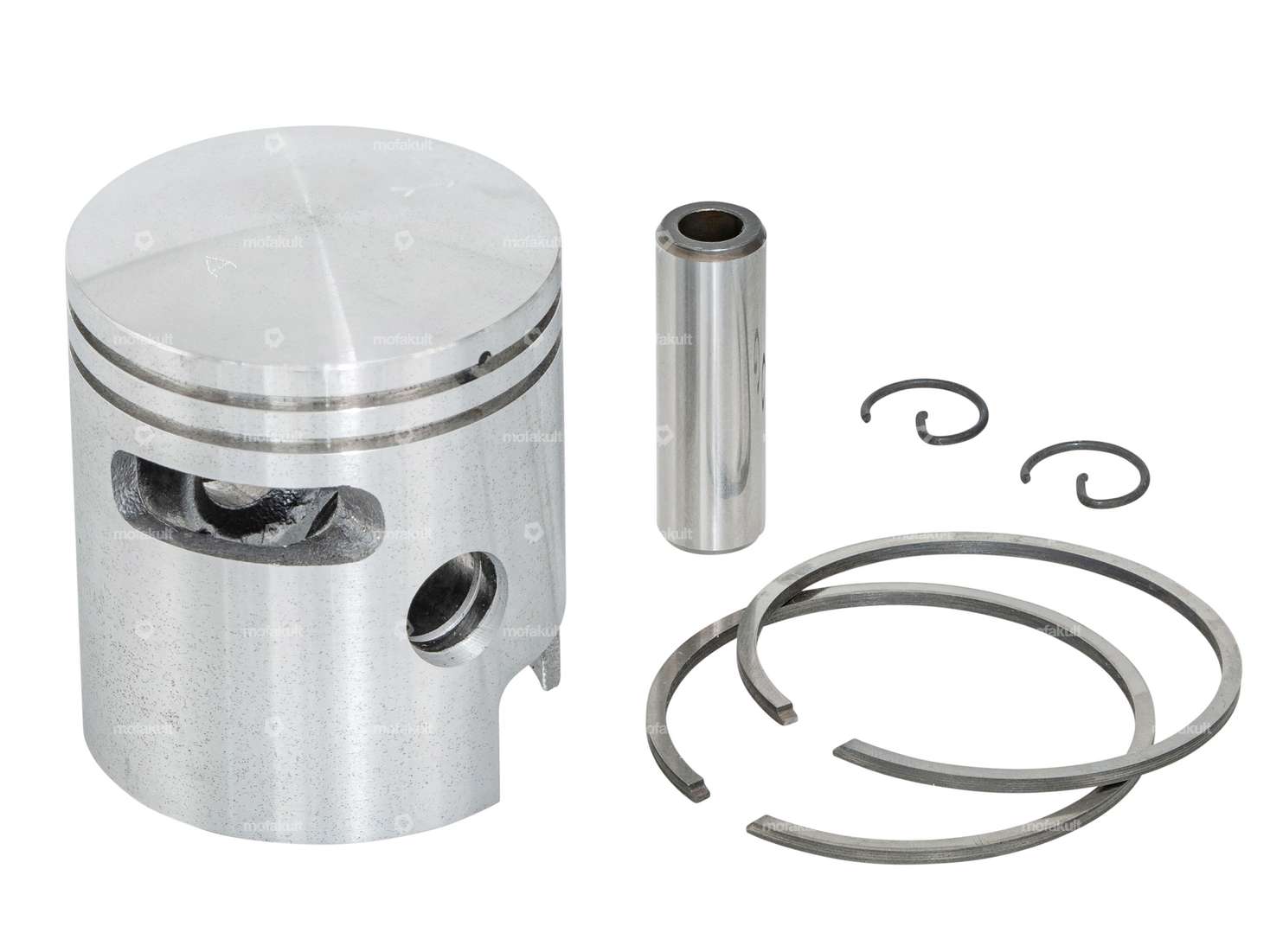

Athena piston 43mm (10 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

EUR 78.60

Incl. 25.5% VAT.

Description

43 mm replacement piston with two 1.5 mm rectangular piston rings with flank lock (FS) for Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds with 43 mm Athena cylinder kit.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter43 mm
ManufacturerAthena
Ø outside piston (A)42.9 mm
Compression height (C)26.52 mm
Curvature (D)2.4 mm
Total piston height (E)50.4 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)10 mm
Tolerance groupA
Weight piston kit87 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo

Accessories & related products

Hot Hot
Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L
undefined

Universal

10610

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.90

EUR 31.90/l

Meteor piston pin lock Ø 10 mm (double)
undefined

For: Universal · Puch · Piaggio · Tomos

11032

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

EUR 1.50

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.60

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool

EUR 24.50

Athena 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
undefined

For: Piaggio

19003

Athena 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø piston pin (B): 10 mm · Number of fixing points: 3 pcs · Outlet type: clamped · Decompressor: Yes · Area of application: Tuning

EUR 215.20

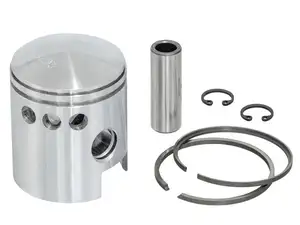

Athena piston 43 mm (12 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer
