For: Sachs · Hercules

20271

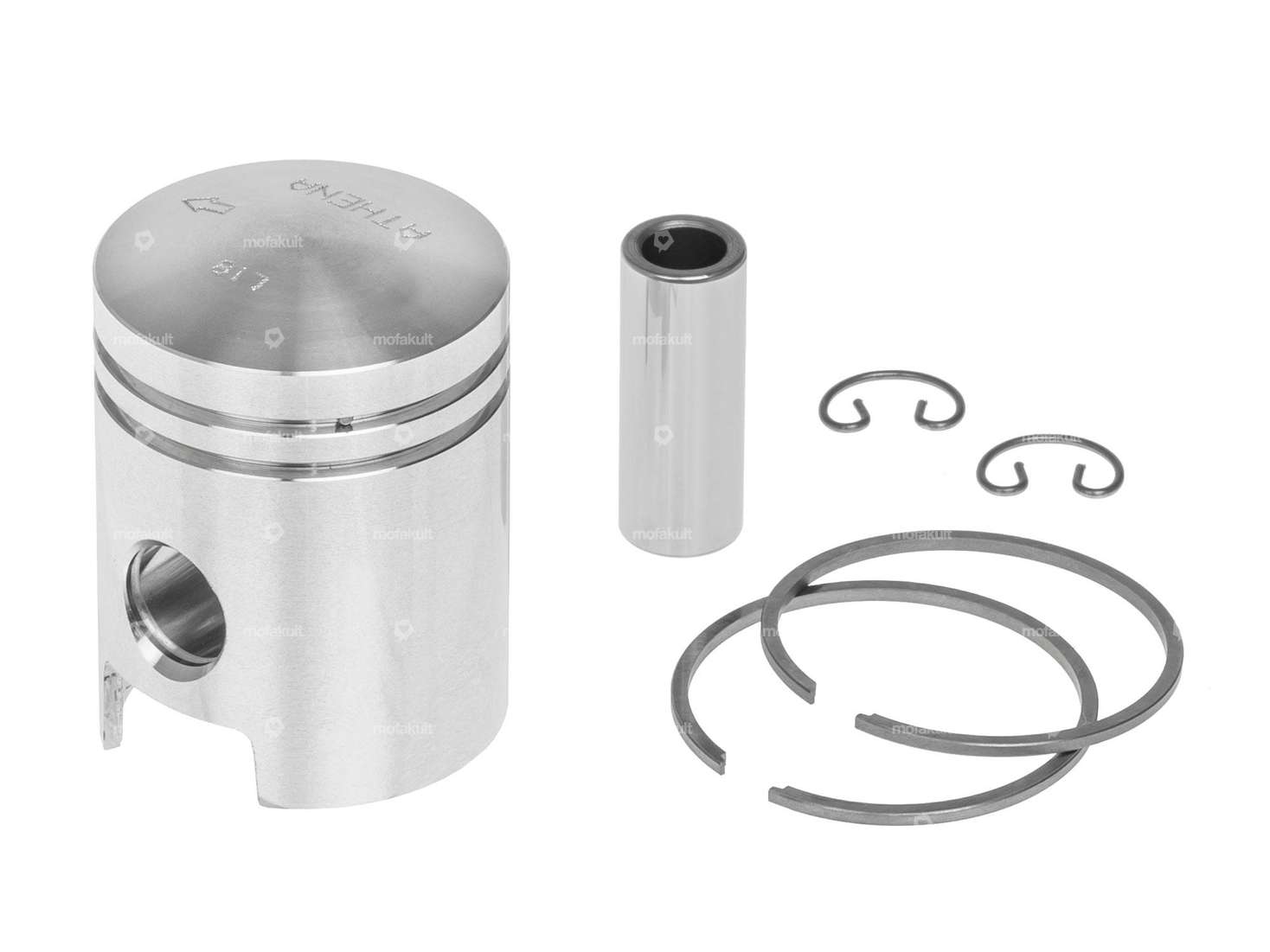

Athena piston 38 mm #A | Sachs 504, 505

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 86.60

Incl. 25.5% VAT.

Description

38 mm replacement piston with two 1.5 mm rectangular piston rings with internal circlip (IS) for your moped / moped with Sachs 504, 505 engine.

Nominal diameter38 mm
ManufacturerAthena
Ø outside piston (A)37.94 mm
Compression height (C)29.25 mm
Curvature (D)1.85 mm
Total piston height (E)52.14 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupA
Weight piston kit79 g
Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG)

Hercules

Great - 2, 3, 4, 5, Optima
