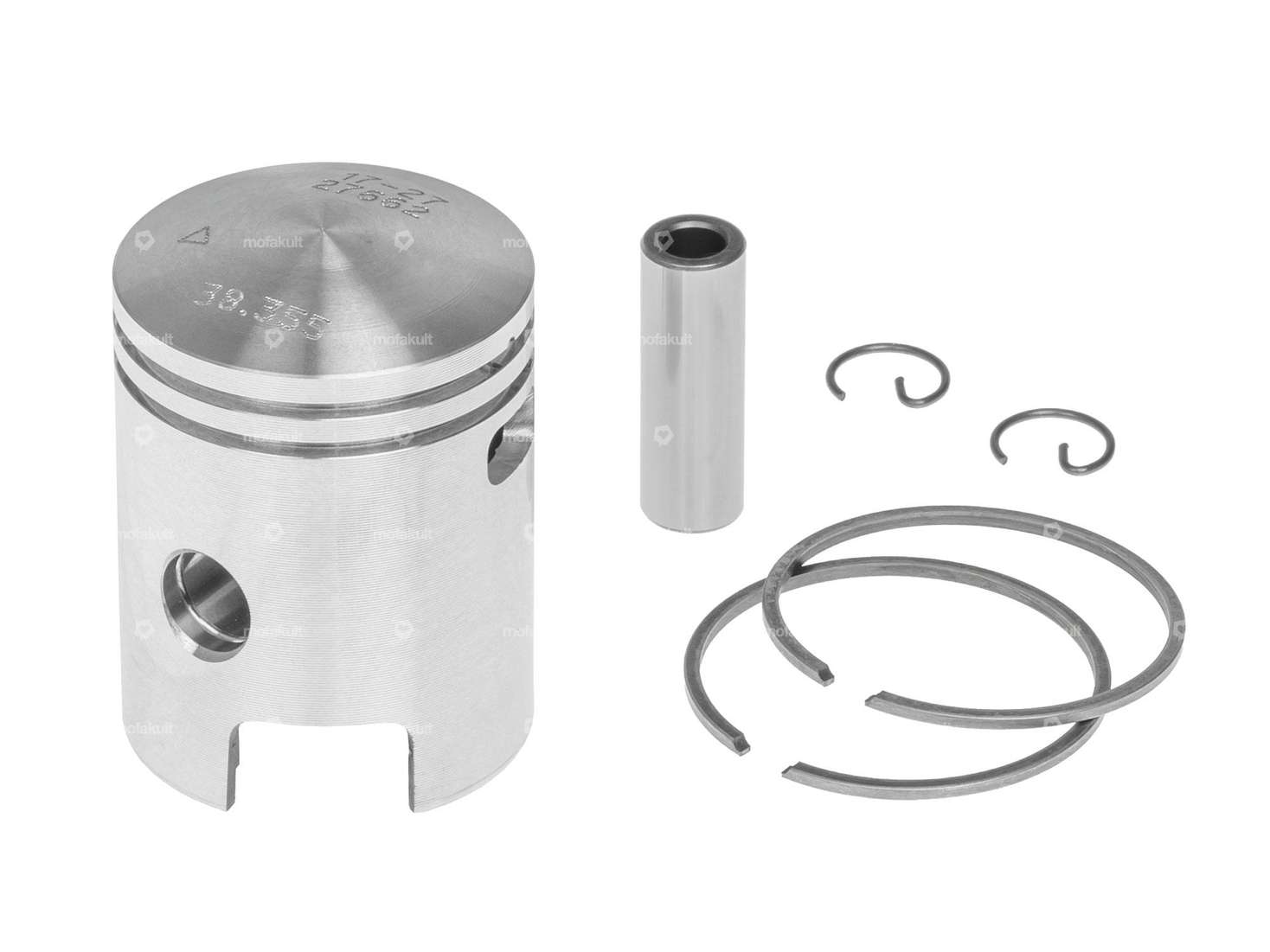

38.4 mm piston with two 1.5 mm rectangular piston rings with flank lock (FS) for Piaggio mopeds / mopeds with the Athena cylinder kits for Piaggio.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their piston rods and locking types on the legend in the images.
The piston kit is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Athena.
Manufacturer | Athena |
Nominal diameter | 38.4 mm |
Ø outside piston (A) | 38.32 mm |
Compression height (C) | 26.3 mm |
Curvature (D) | 3.9 mm |
Total piston height (E) | 51.83 mm |
Number of piston rings (F) | 2 pcs |
Piston ring mold | Rectangular ring |
Ø piston pin (B) | 12 mm |
Piston ring impact | Internal fuse (IS) |
Piston ring height | 1.5 mm |
Piston weight | 76 g |
Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 24.40
Athena 38.4 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Camouflaged: No · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Material: Aluminum · Surface: sandblasted · Nominal diameter: 38.4 mm · Ø piston pin (B): 12 mm · Number of fixing points: 3 pcs · Area of application: Tuning · Outlet type: clamped · Decompressor: Yes
EUR 196.00
Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.355 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 80 g
EUR 69.80
Moped fans also bought
Starter cable Ø 1.5 mm x 160 cm | Puch Maxi
Ø nipple: 8 mm · Nipple length: 12 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.5 mm · Nipple shape: Barrel (transverse) · Cable length: 1600 mm · Area of application: Standard
EUR 3.45

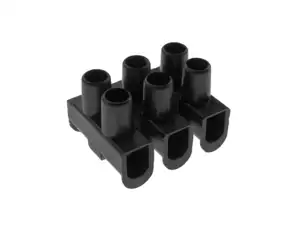

Luster terminal 3-pole black small (0.1 - 2.5 mm²)
