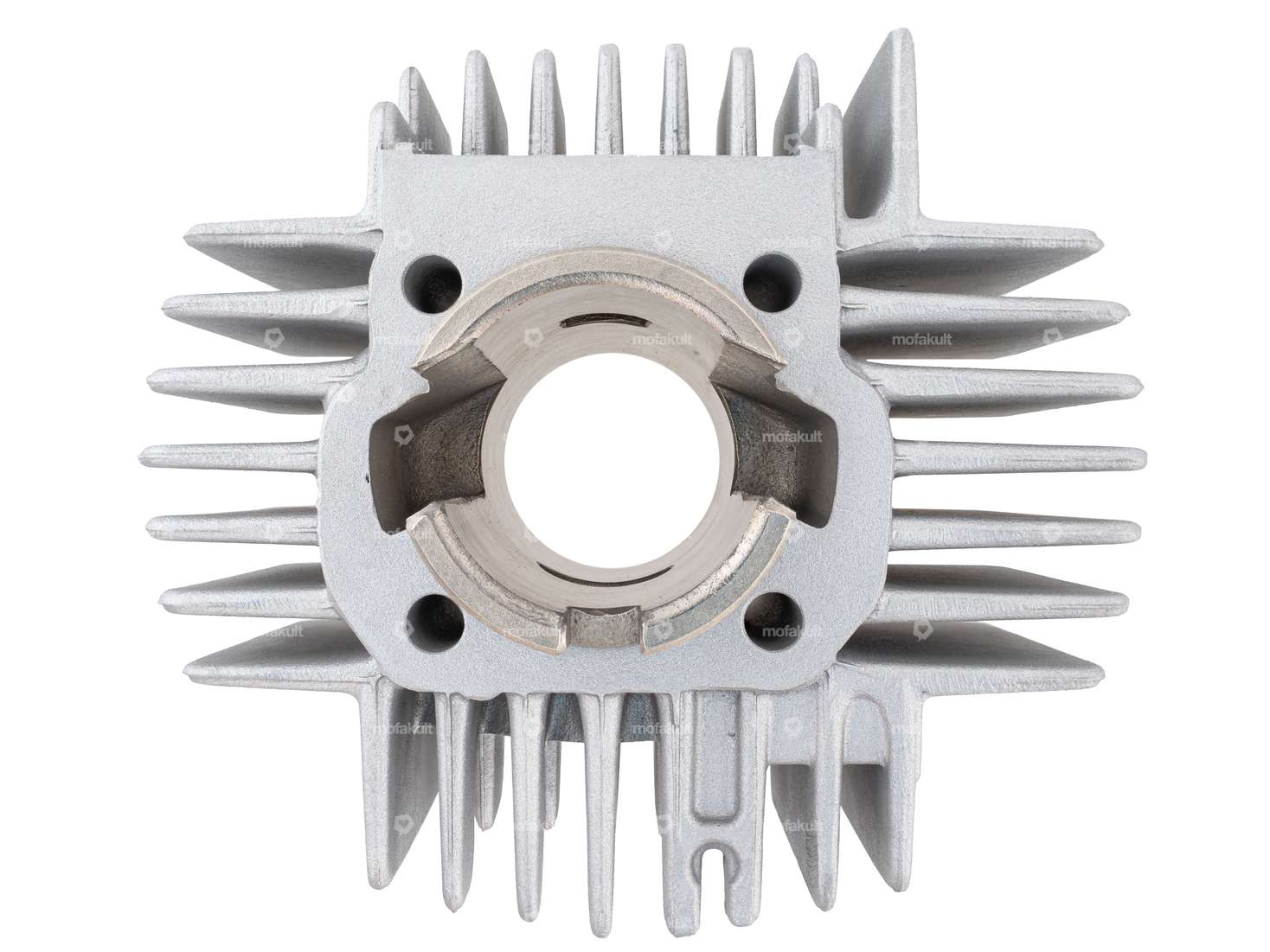

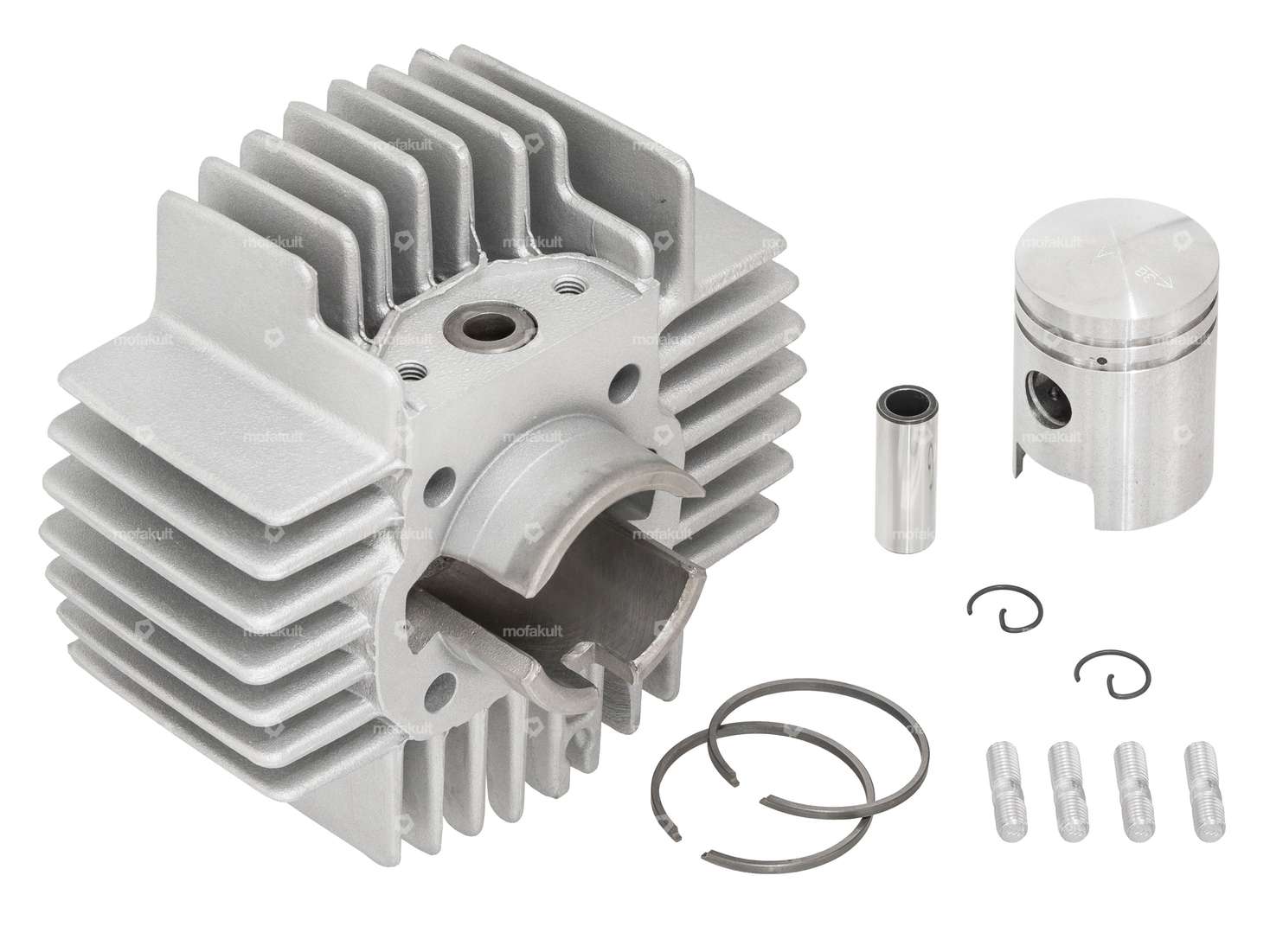

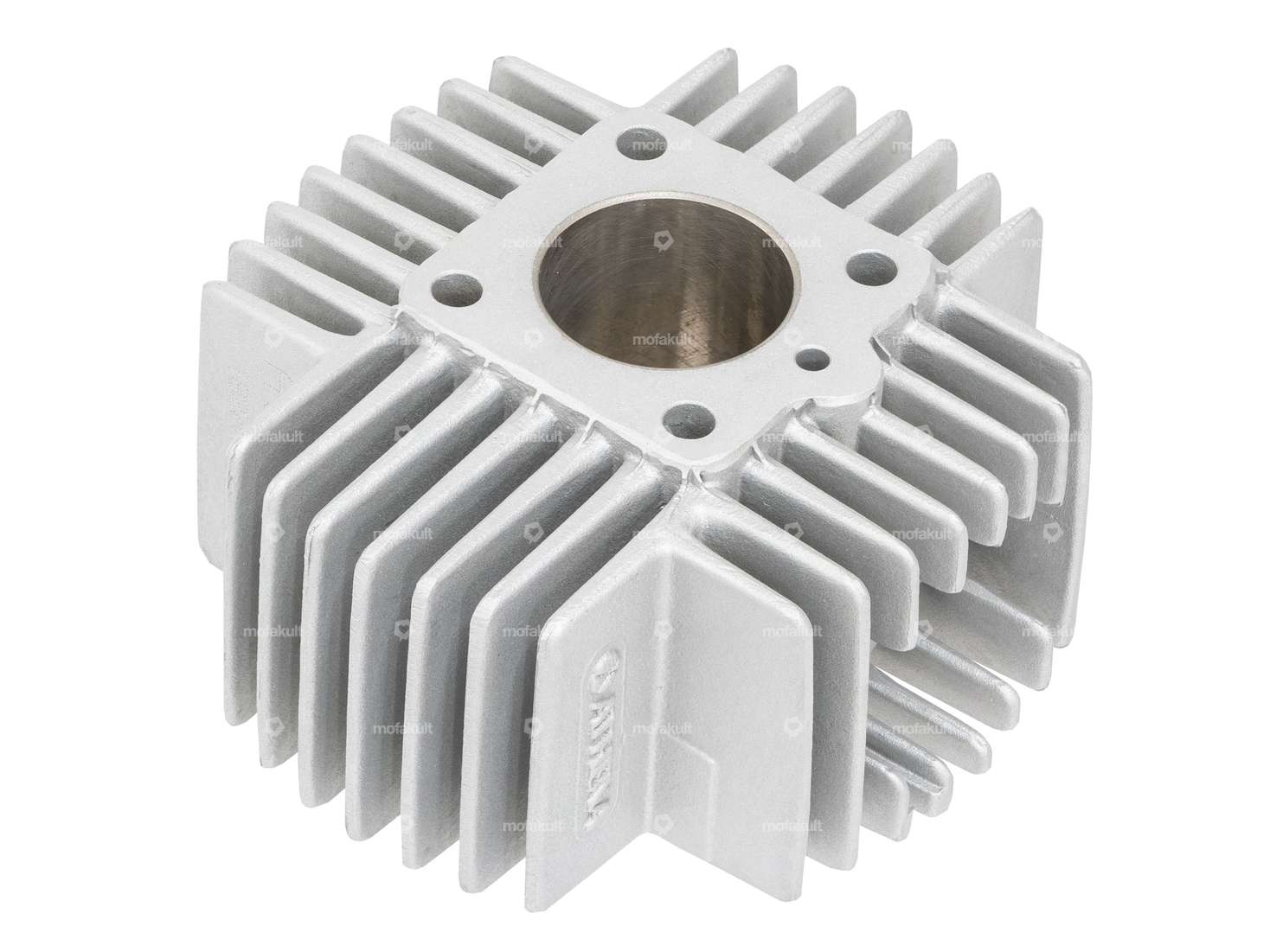

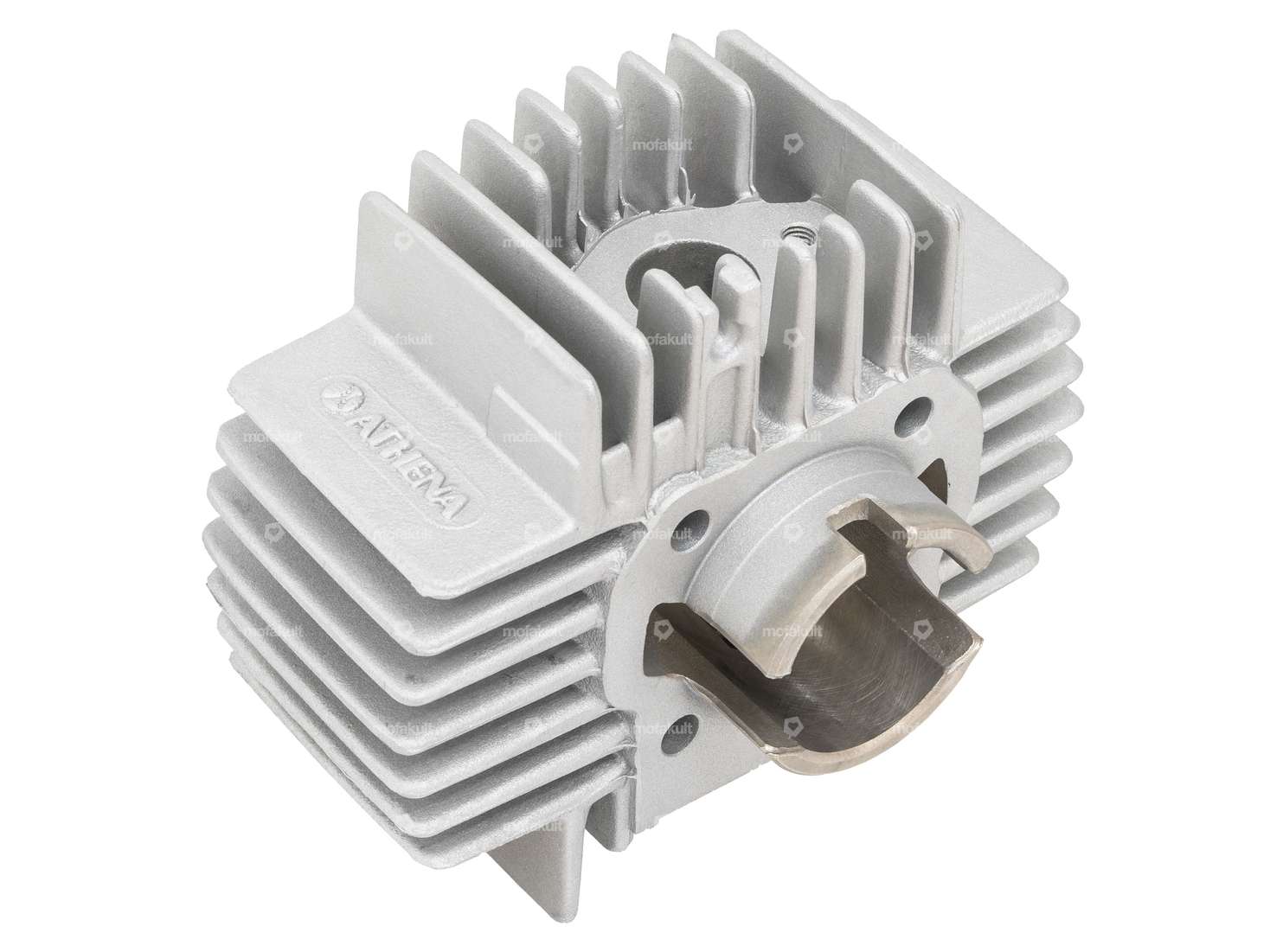

Reproduction of the original 38 mm Puch Maxi & Puch X30 cylinder.
As with the original cylinder, a seal is also embedded here.
Attention: This cylinder is a reproduction product which is not approved for use on public roads
The gaskets are not included in the scope of delivery.
Quality product from the Italian manufacturer Athena.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Athena |
| Camouflaged | No |
| Area of application | Tuning |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Hole pattern [mm] | 44 x 44 |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Hole spacing inlet | 38 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
