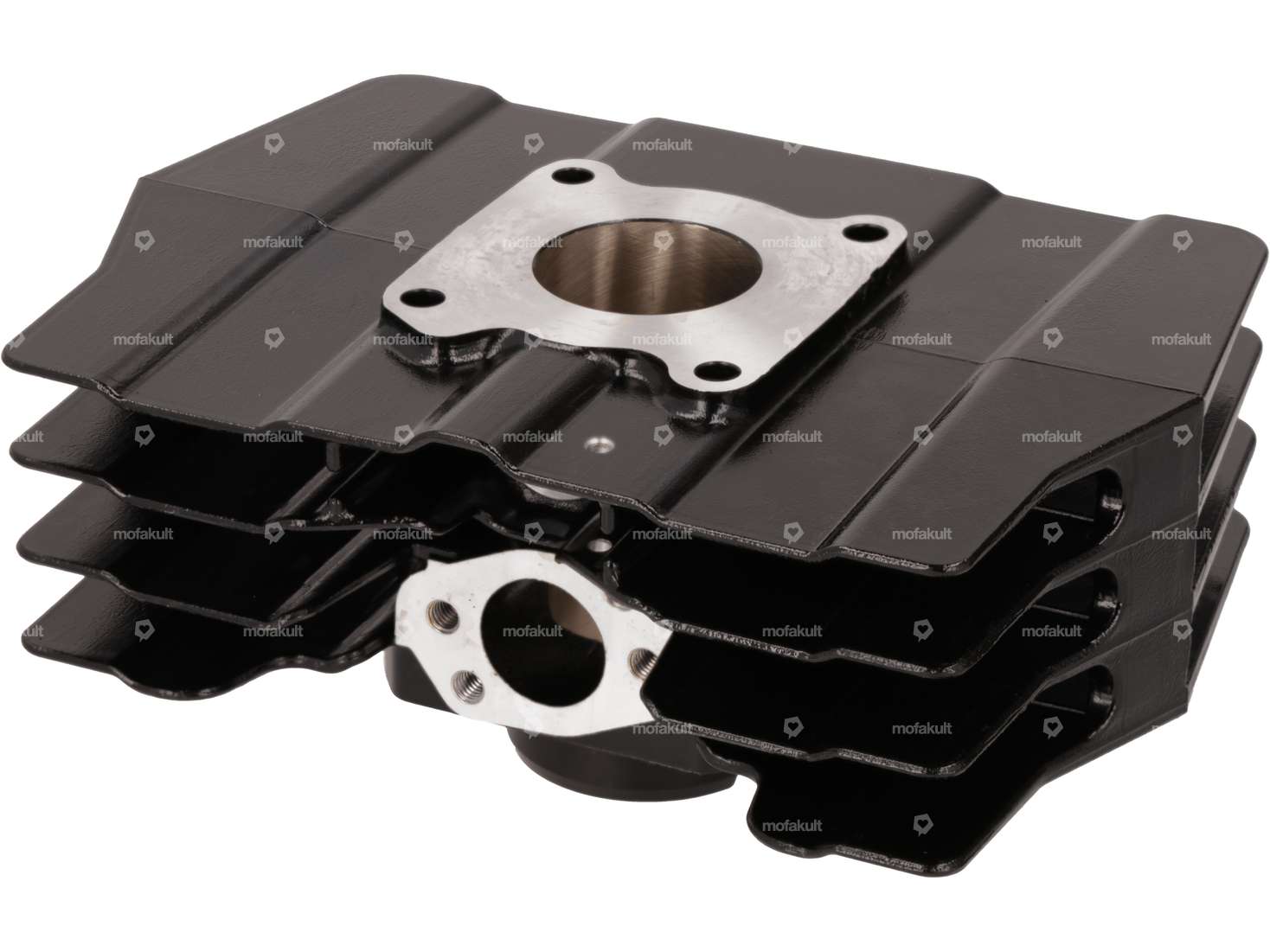

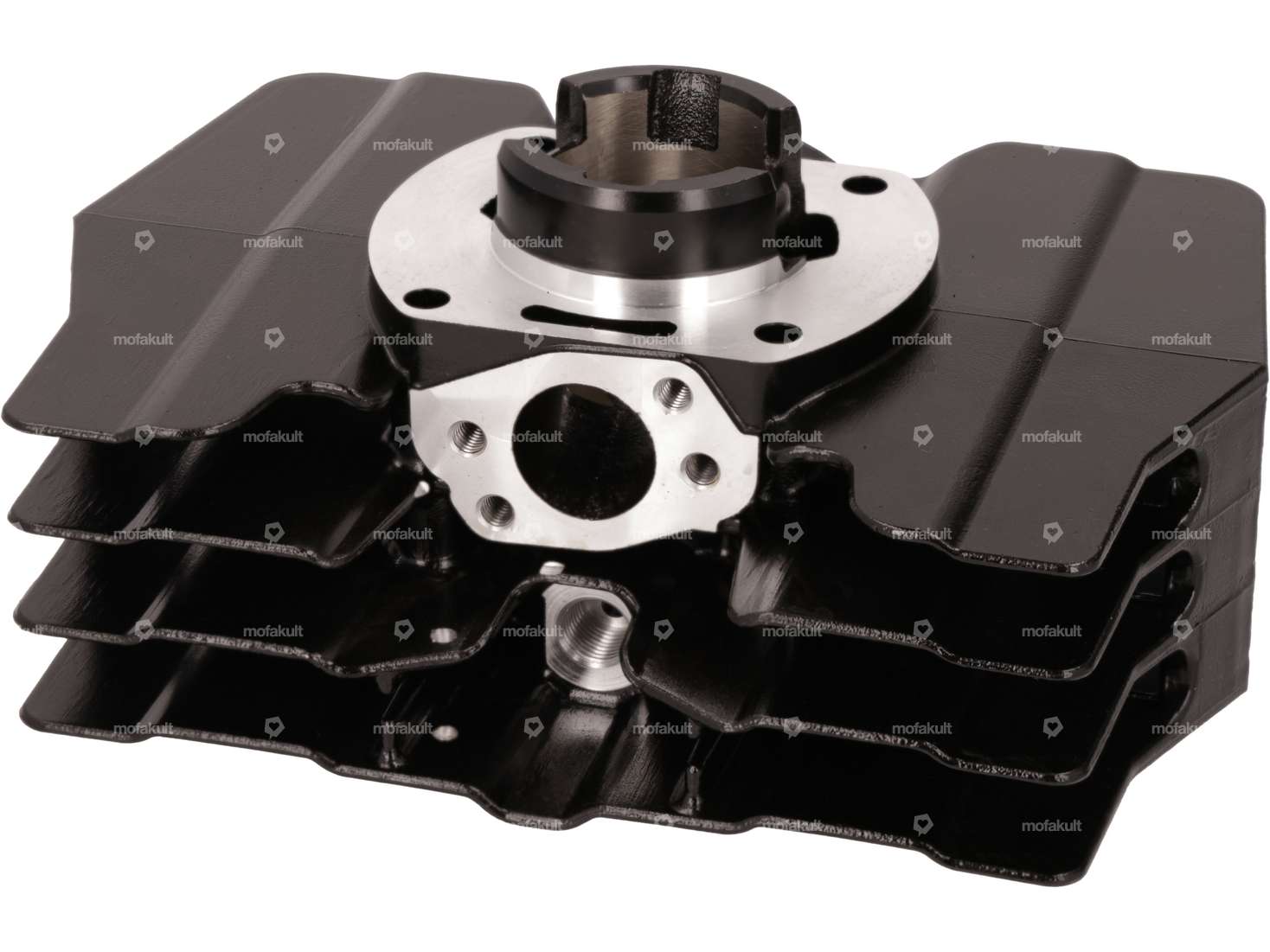

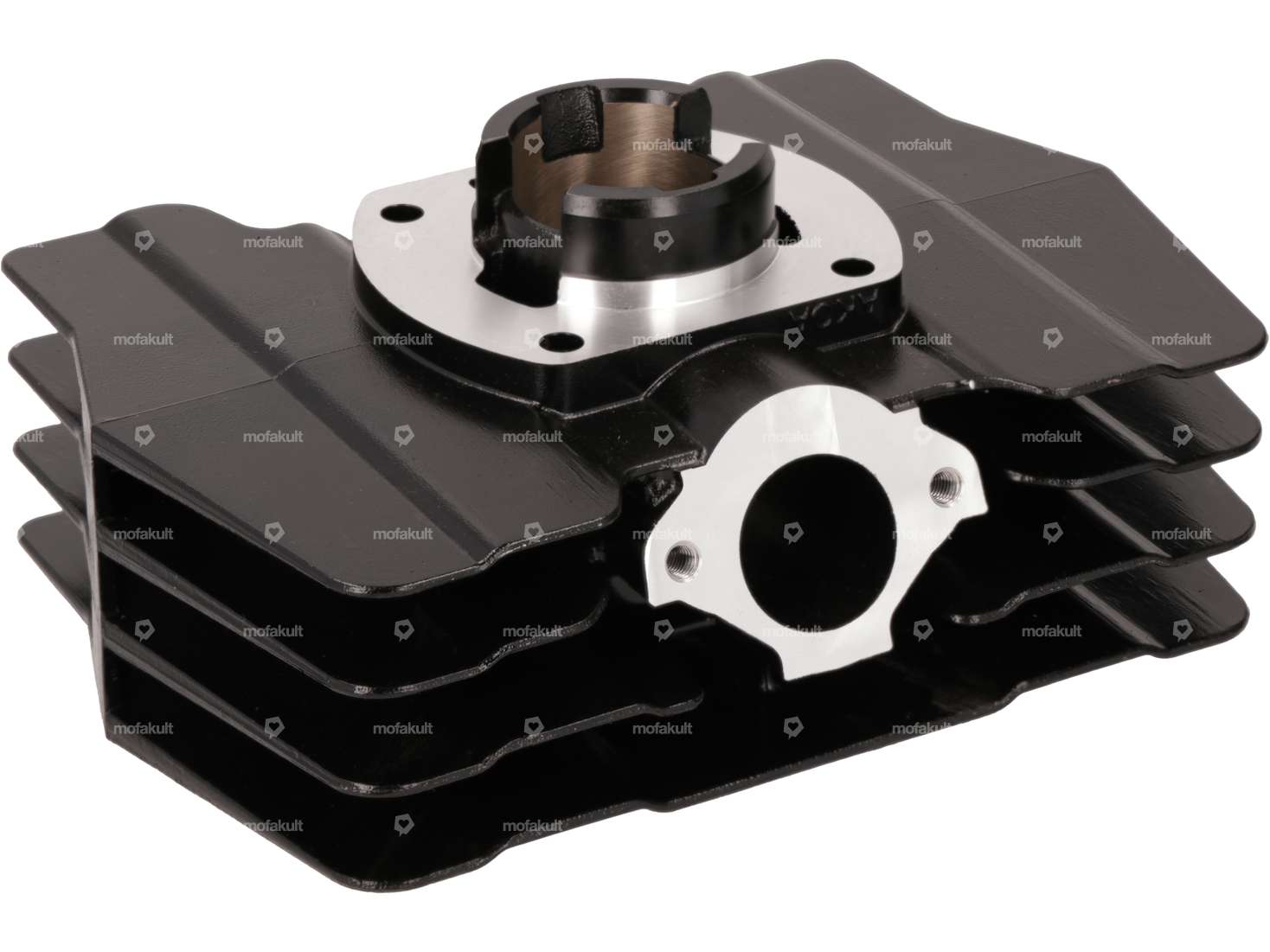

38 mm tuning cylinder with 50 cc displacement and narrow exhaust for your Pony moped / moped with Sachs 503 AB, AC or ADV engine.
The wide-bore racing kit has been heavily reworked compared to the original cylinder. The overflow ducts, the intake and exhaust have been enlarged. There is hardly any visible difference from the outside. In terms of performance, the racing cylinder is designed for the upper engine speeds. Due to the long exhaust timing, a high back pressure is required to exploit the power.

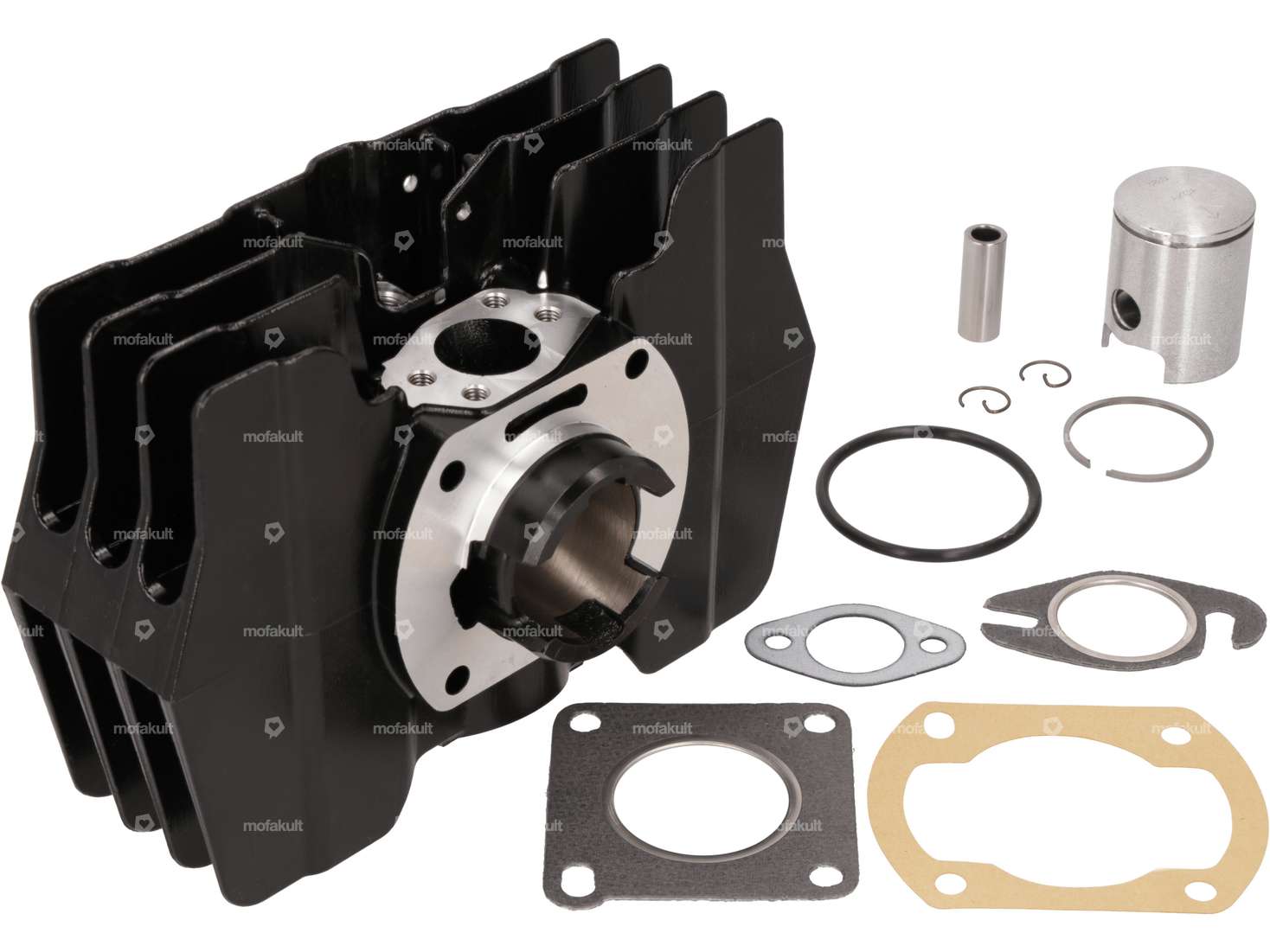

In addition to the piston, piston ring, clips and bolts, the scope of delivery also includes the required gaskets for the base, intake and exhaust. In addition, an O-ring and a reinforced graphite gasket for the cylinder cover are included, which can be used as required. It is still possible to use the original cylinder head.
Cylinder material: Cast aluminum
Piston material: Cast aluminum
Bore: 38 mm
Capacity: 49.90 cm³
Ø Cylinder neck: 52 / 50.5 mm
Exhaust inside: 19.5 x 11 mm
Ø Exhaust inside: 29 mm
Exhaust thread: M6 x 1
Hole spacing exhaust: 50.5 mm
Hole spacing inlet: 36 mm
Inlet thread: M6 x 1
Ø inlet inside: 23.5 mm
Hole pattern: 56 x 56 mm
Ø stud bolt hole: 6.9 mm
Piston pin: 12 mm
Decompressor hole: yes, MF12x1.25 mm
Note: The inlet of the cylinder has a double hole pattern, so that sockets for both the AB / AC and the ADV engine can be fitted.
The narrow outlet is designed for AB / AC exhausts. A flame tube from the AB / AC engine must therefore also be fitted to the ADV engine.
Matching attachments for the cylinder set can be found under accessories.
Alternative to the original Pony spare part number: A2868
Branded product from the manufacturer AKOA.
| Nominal diameter | 38 mm |
| Manufacturer | AKOA |
| Material | Aluminum |
| Surface | varnished, Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 50 ccm |
| Crankshaft stroke | 44 mm |
| Ø cylinder neck | 52 mm, 50.5 mm |
| Ø outlet inside | 29 mm |
| Ø Inlet inside | 23.5 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 36 mm |
| Area of application | Performance |
| Ø piston pin (B) | 12 mm |
| Outlet type | slanted |
| Hole spacing outlet | 50.5 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 56 x 56 |
| Decompressor | MF12x1.25 |
| Alternative version of the Pony OEM number | A2868 |
| Sachs | 503 - AB, AC, ADV |
