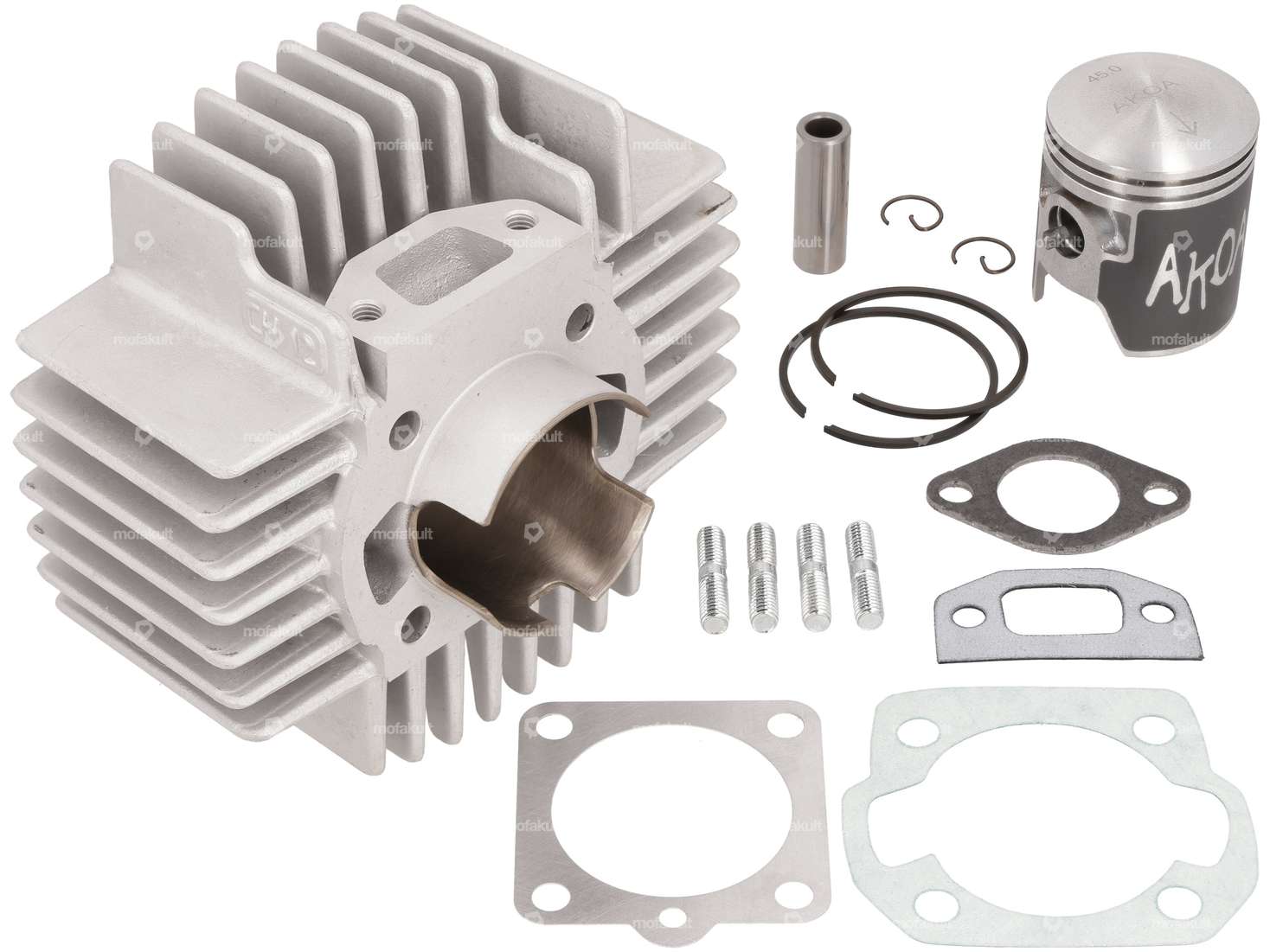

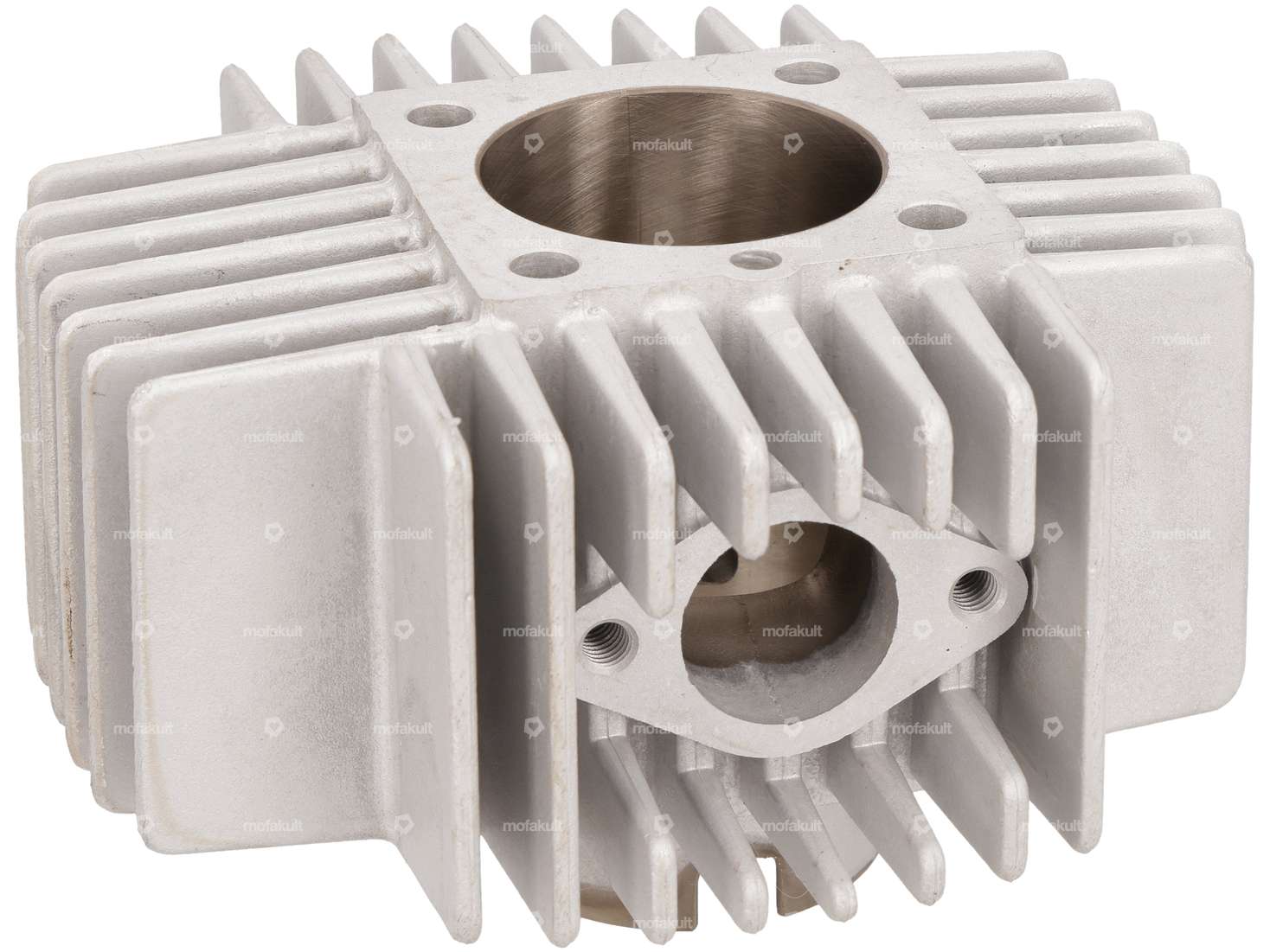

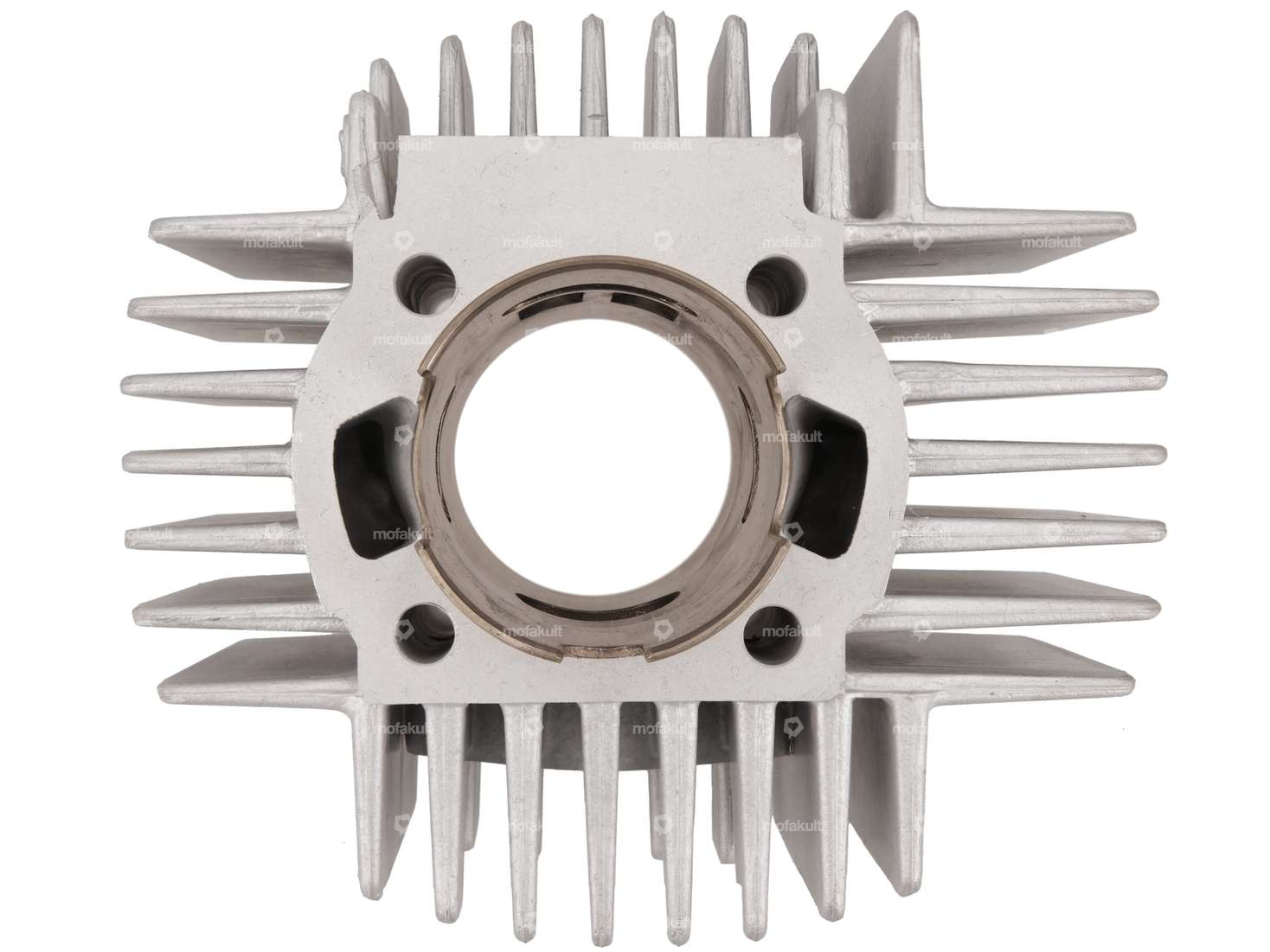

Grey racing cylinder in the 45 mm version, suitable for your Puch Maxi S / N, Supermaxi LG1 / LG2 and your X30 Sport NS / NL moped / moped with E50 / ZA50 (Fahrtwindgekühlt) / ZA50 (catalytic converter) or Z50 engine.

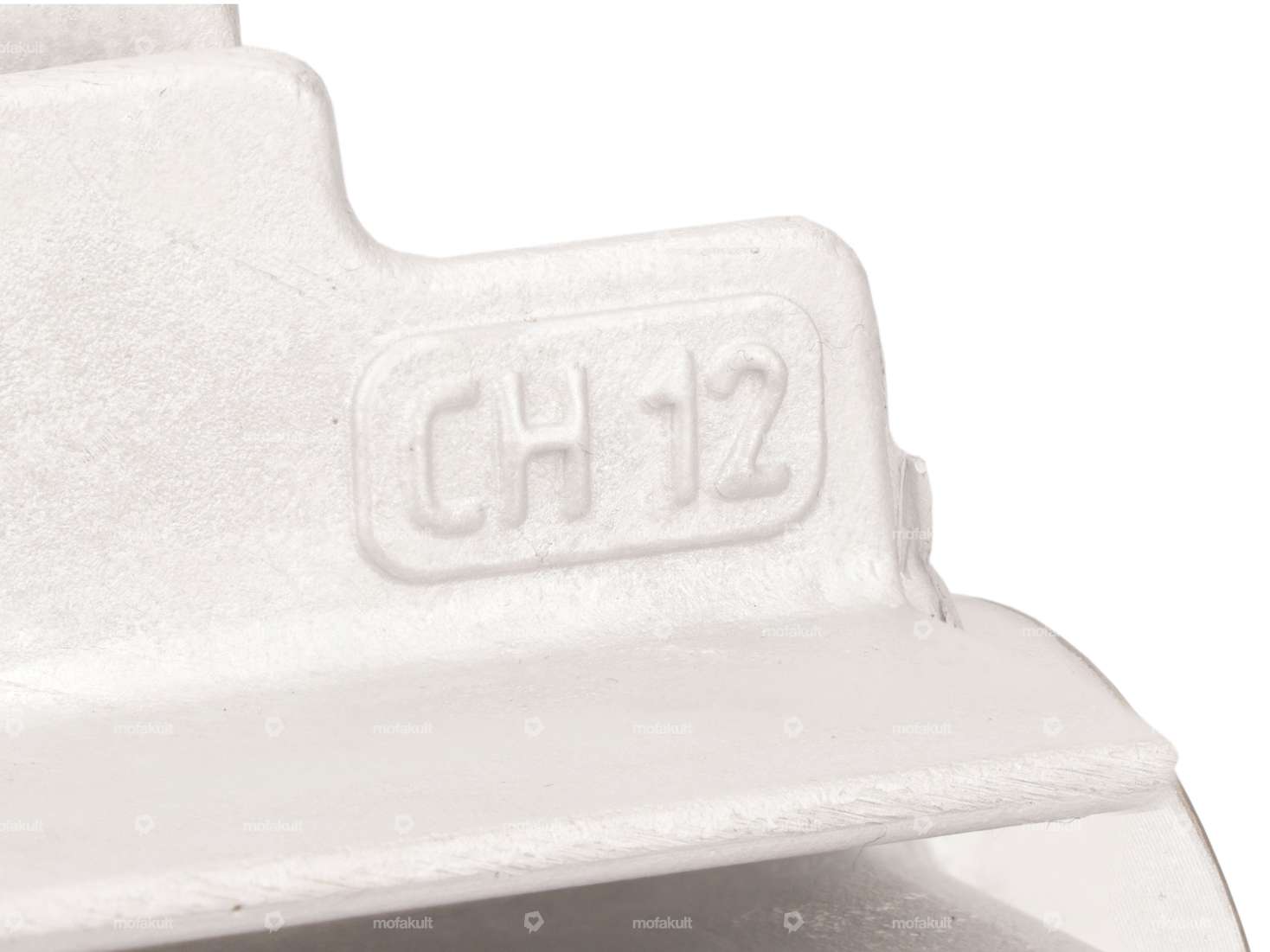

The camouflaged 70 cc tuning cylinder is kept true to the original. The cooling fins and CH12 injection match the standard look. It is important to note that there is no decompressor bracket.
Manufacturer: AKOA · Camouflaged: Yes
| Manufacturer | AKOA |
| Material | Aluminum |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Camouflaged | Yes |
| Displacement | 68 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 47.9 mm |
| Ø Outlet outside | 24.8 mm |
| Inlet window | 22.5 x 14.8 |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Hole spacing inlet | 38 mm |
| Number of fixing points | 4 pcs |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | No |
| Area of application | Tuning |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products
swiing® revival stud bolt set M6 x 106 | Puch
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 9.10
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 27.00
EUR 2’700.00/l
swiing® ingenious 15 mm carburetor set camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Nominal diameter: 15 mm · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø Inside entrance: 15 mm · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Hole spacing inlet: 38 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Area of application: Tuning
EUR 129.10
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001
EUR 14.70
swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch Maxi, X30 Sport
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange
EUR 147.60
swiing® revival stud bolt set M6x30 (10.9 strength) galvanized
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 12 mm · Total length: 30 mm · Drive: External hexagon · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Strength class: 8 · Strength class: 10.9
EUR 13.20
swiing® ingenious 17 mm carburetor set camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Nominal diameter: 17 mm · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Mounting type: Plug connection clamped · Ø Air filter connection: 27.5 mm · Hole spacing inlet: 38 mm · Mixed oil connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Nozzle size: 74 · Clamping screw torque (max.): 4 N/m · Area of application: Racing · Area of application: Tuning
EUR 221.40
AKOA piston 45 mm | Puch E50 / ZA50 (air-cooled) / ZA50 (cat.) / Z50
Manufacturer: AKOA · Material: Aluminum · Surface: molybdenum-coated · Ø outside piston (A): 44.98 mm · Compression height (C): 22.48 mm · Curvature (D): 3.65 mm · Total piston height (E): 52.56 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.46 mm · Thick piston ring: 1.72 mm · Ø piston pin (B): 12 mm · Weight piston kit: 99.41 g
EUR 55.30
Explore categories from Cylinder
Moped fans also bought
GPO mudguard strut silver | Puch Maxi S, N
Manufacturer: GPO · Material: Steel · Outer width: 25.5 mm · Surface: varnished · Color: silver · Wheel size: 17 " · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Ø mounting hole: 6 mm · Wide intake: 53 mm · Number of fixing points: 8 pcs · Mounting type: Nuts & bolts · Hole spacing: 40 mm · Total length: 240 mm
EUR 15.40
swiing® revival 17" front fender square Inox | Puch Maxi S, N
Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Folding the ends: closed folded · Wheel size: 17 " · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Mounting type: Nuts & bolts · Total height from support surface to top edge: 200 mm
EUR 43.00
swiing® revival stud bolt set M6 x 106 | Puch
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 9.10
GPO front mudguard strut 17" chrome
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Outer width: 160 mm · Wheel size: 17 " · Distance mudguard - center hole: 300 mm · Color: Chrome · Mounting type: Nuts & bolts · Total length: 305 mm · Number of fixing points: 4 pcs · Ø mounting hole: 12.5 mm
EUR 18.30

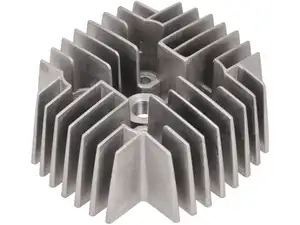

AKOA 45 mm cylinder head gray | Puch E50 / ZA50 (air-cooled) / ZA50 (cat.) / Z50
