For: Puch

10280

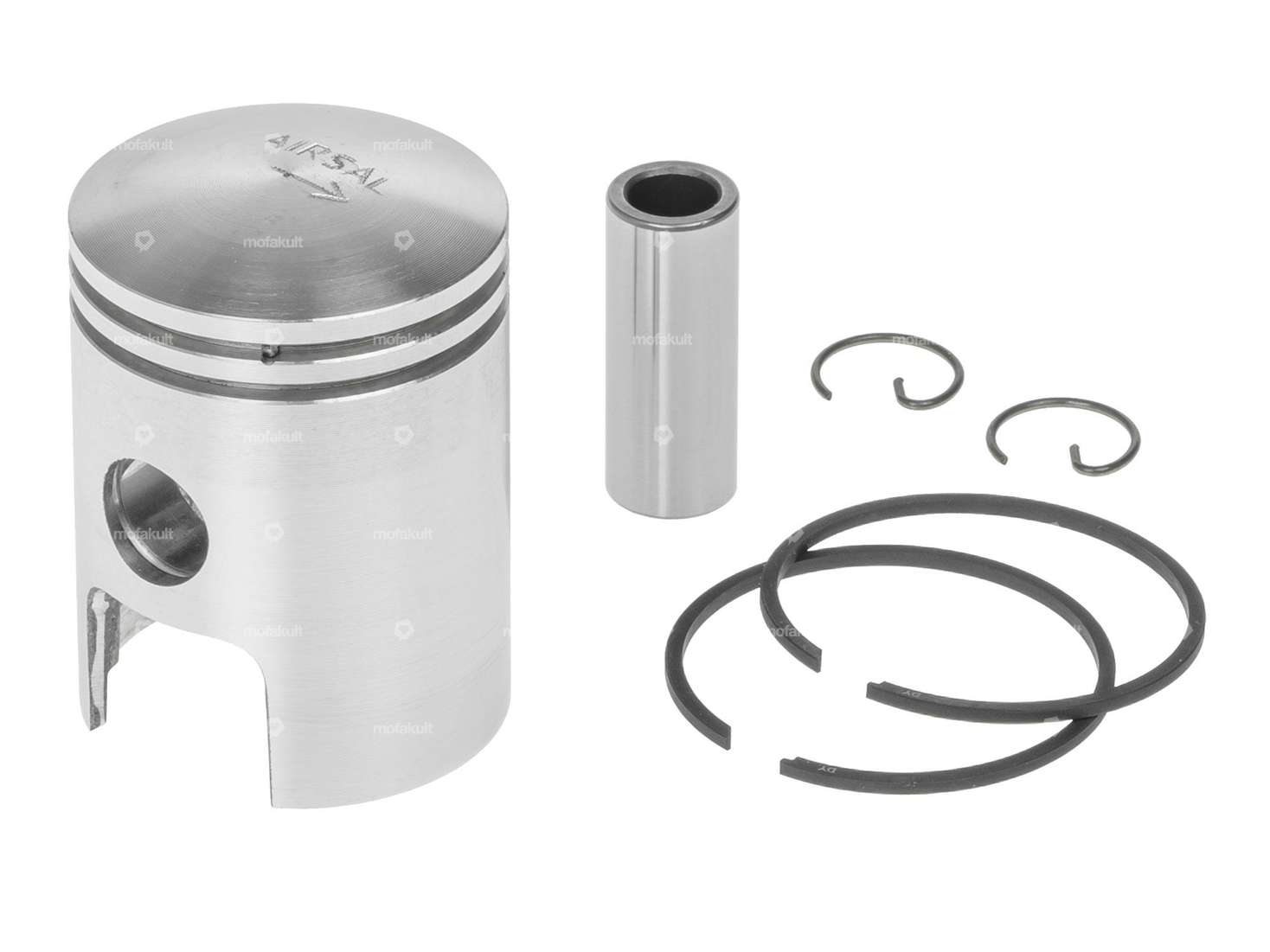

Airsal piston 38 mm | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 54.00

Incl. 25.5% VAT.

Description

38.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) suitable for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerAirsal
Nominal diameter38 mm
Ø outside piston (A)37.95 mm
Ø piston pin (B)12 mm
Compression height (C)22.3 mm
Curvature (D)3.8 mm
Total piston height (E)52.5 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Thick piston ring1.6 mm
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)

Accessories & related products

Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30
undefined

For: Puch

10110

Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30

Nominal diameter: 38 mm · Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Number of fixing points: 4 pcs · Inlet window: 23.5 / 20 x 14.5 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)

EUR 122.90

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

EUR 1.50

Hot Hot
Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.90

EUR 31.90/l

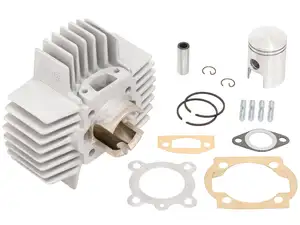

Airsal 38 mm cylinder kit (large ribs) | Puch
undefined

For: Puch

11746

Airsal 38 mm cylinder kit (large ribs) | Puch

Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 38 mm · Number of fixing points: 4 pcs · Inlet window: 24 / 20 x 14 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Camouflaged: No

EUR 122.90

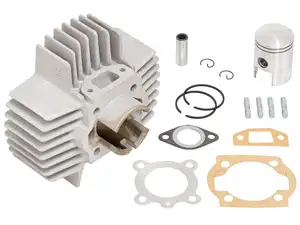

Airsal 38 mm cylinder kit (large ribs) fast version | Puch
