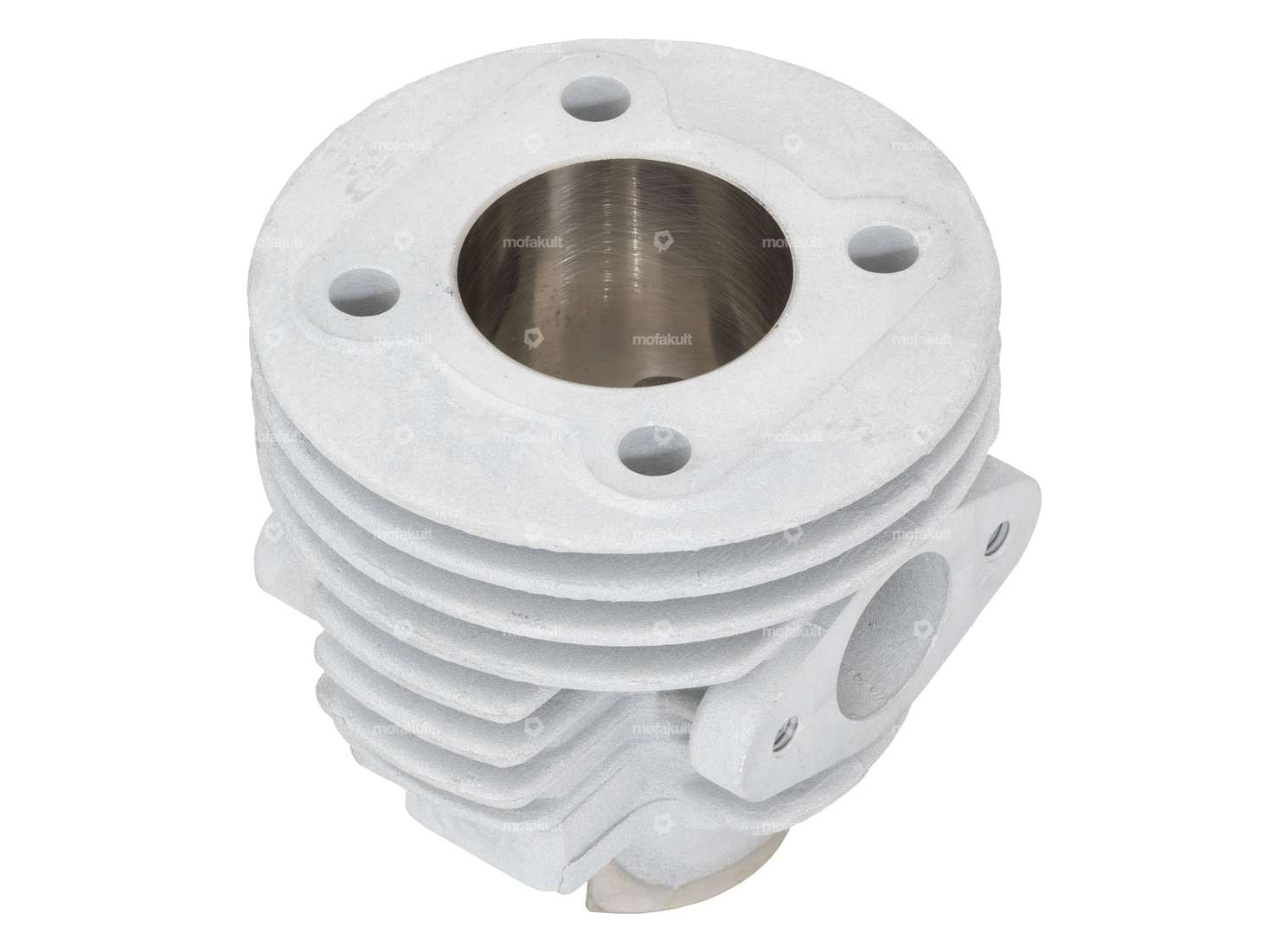

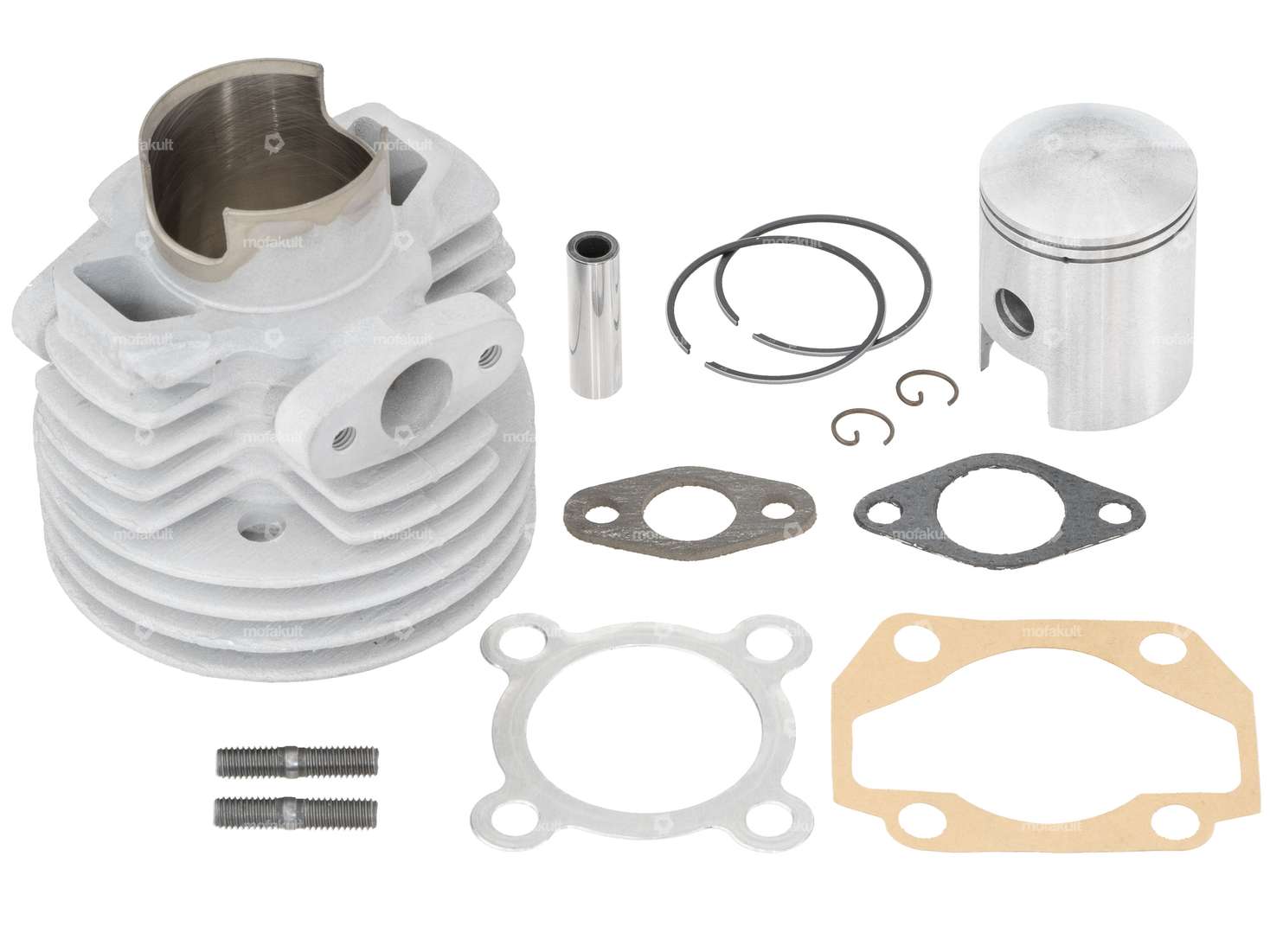

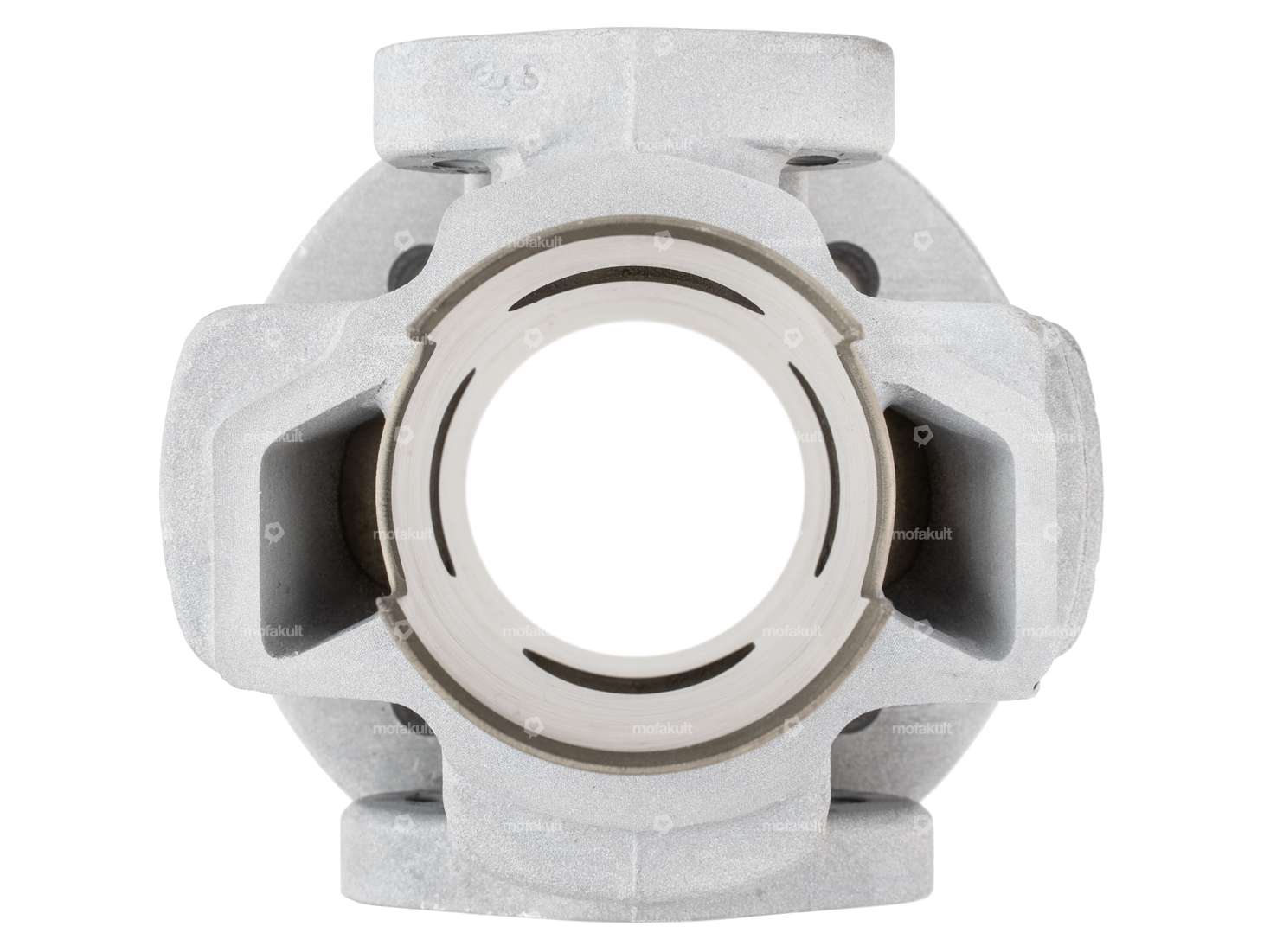

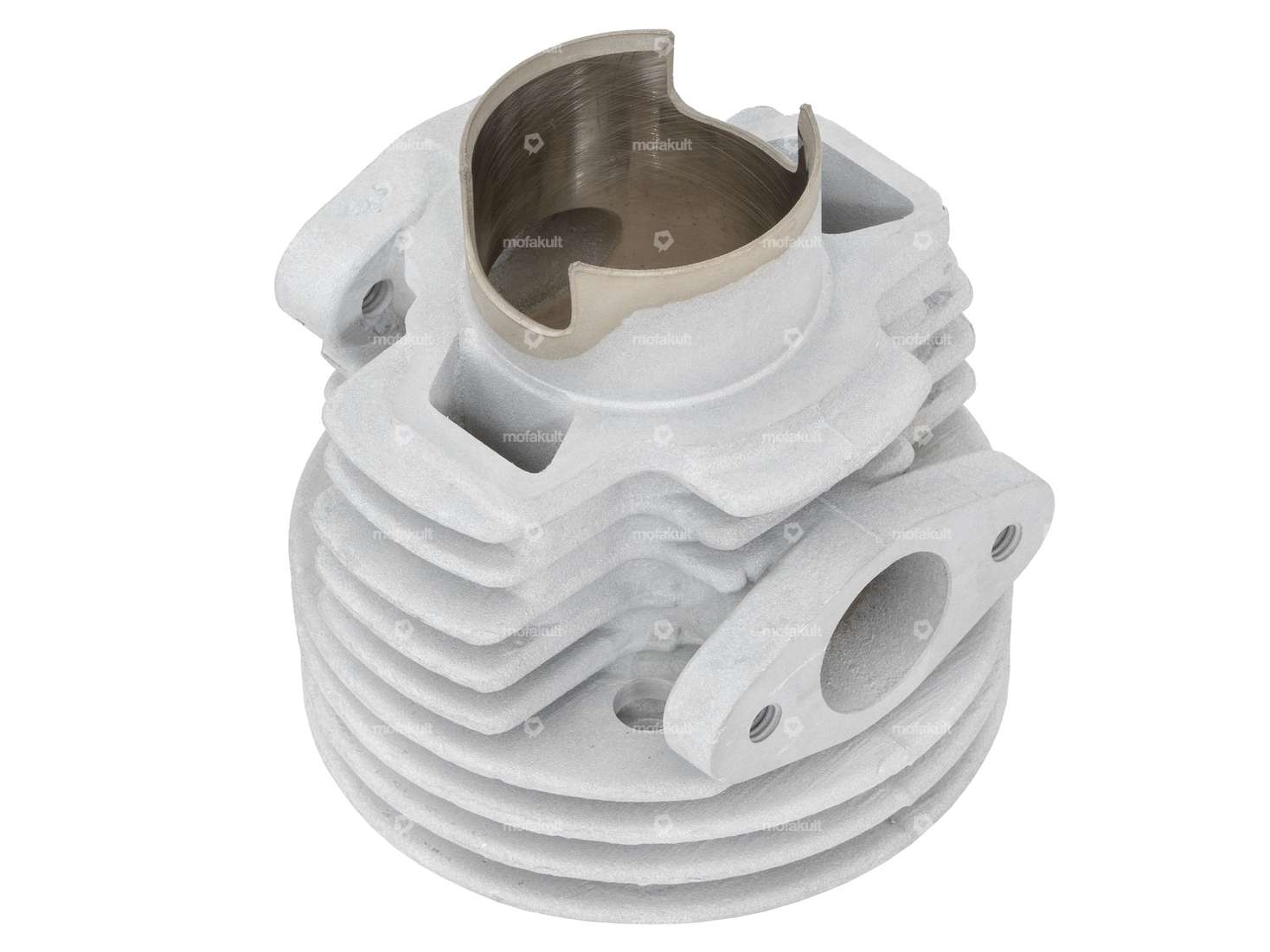

Blade-cooled 40 mm racing kit with 10 mm piston pin suitable for Puch X30 Velux and Puch X30 NG-2AH mopeds.
The entire cylinder is made of high-quality cast aluminum. The running surface is provided with a Nikasil coating. This results in smooth running, optimum heat dissipation and a long service life.
Details
| Manufacturer | Airsal |
| Material | Aluminum |
| Surface | sandblasted |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 40 mm |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 10 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Camouflaged | No |
| Area of application | Tuning |
| Hole spacing inlet | 32 mm |
Suitable for the following models
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
