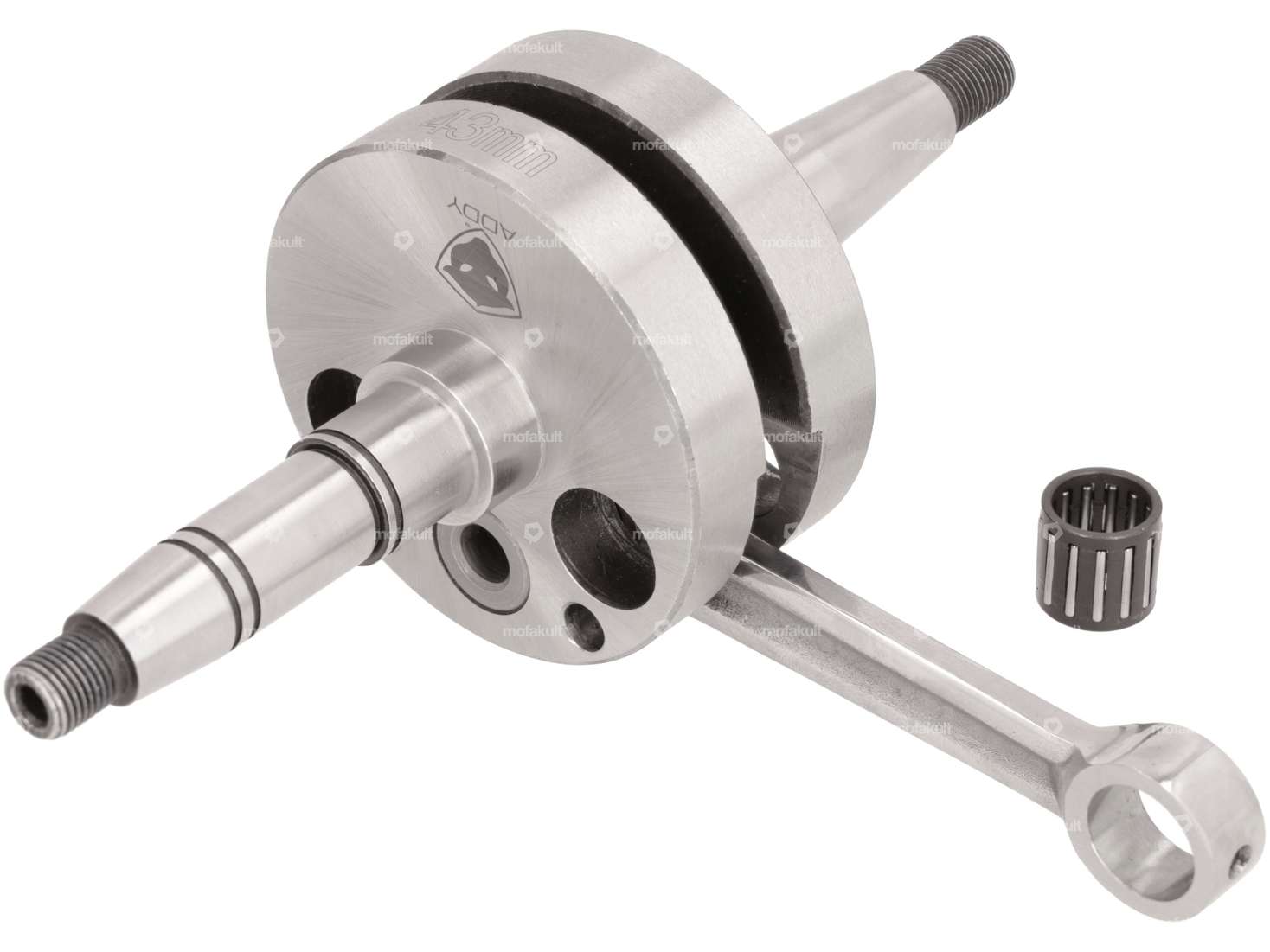

High-quality full cheek racing crankshaft with 43 mm stroke for your Puch moped / moped with E50 original or ADDY 50-1 housing.
Details
| Weight | 912 g |
| Manufacturer | ADDY |
| Area of application | Tuning, Racing |
| Material | Steel |
| Cheek type | Full cheeks |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 66.4 mm |
| Ø crank webs | 69.8 mm |
| Thread length | 14.5 mm, 10.5 mm |
| Ø Connecting rod eye | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.6 (axe 12) |
| Wide crank webs | 34.1 mm |
| Length 1st paragraph | 9 mm |
| Length 2nd paragraph | 15.1 mm |
| Length 3rd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 21.6 mm |
| Ø 2nd shoulder (on the clutch side) | 17 mm |
| Ø 3rd step (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26 mm |
Suitable for the following models
| Puch | E50 |
