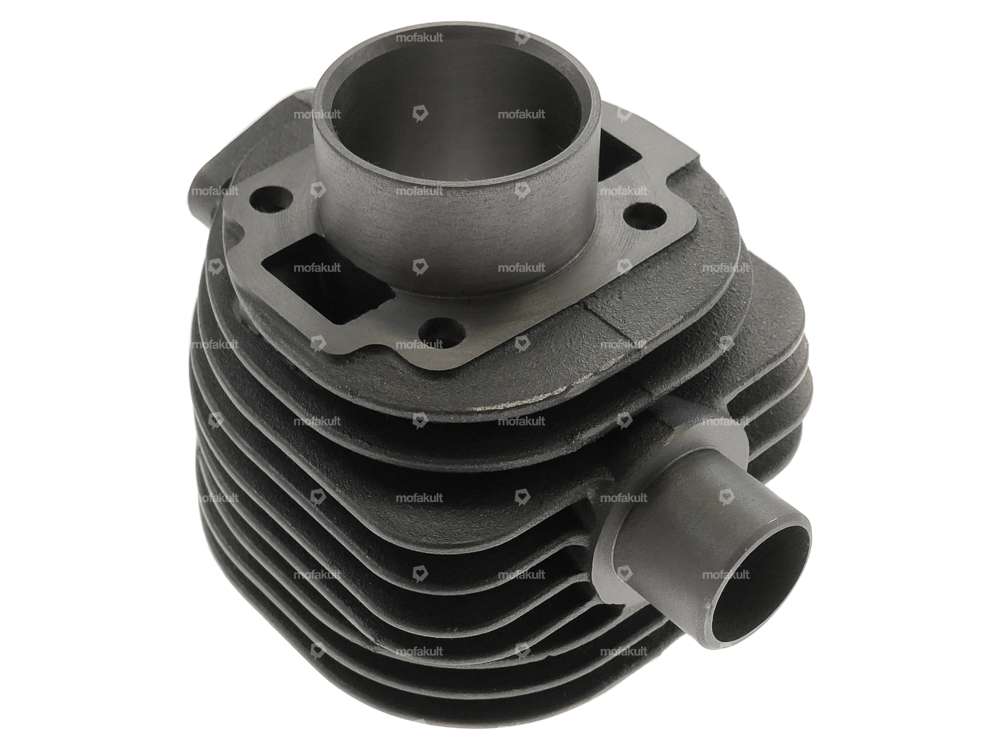

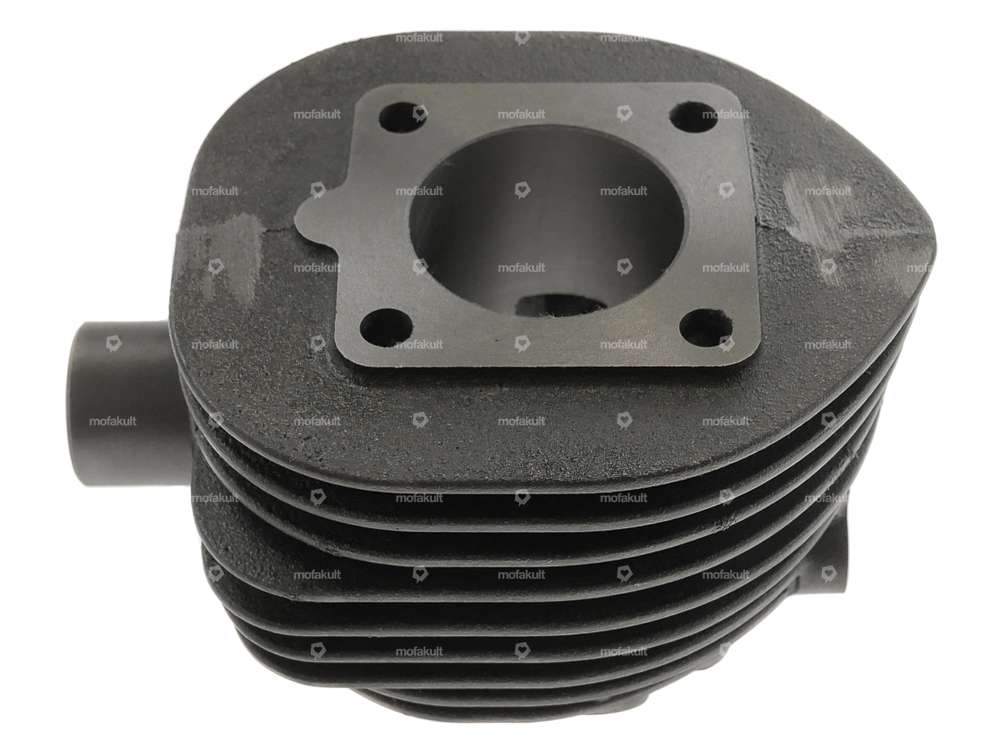

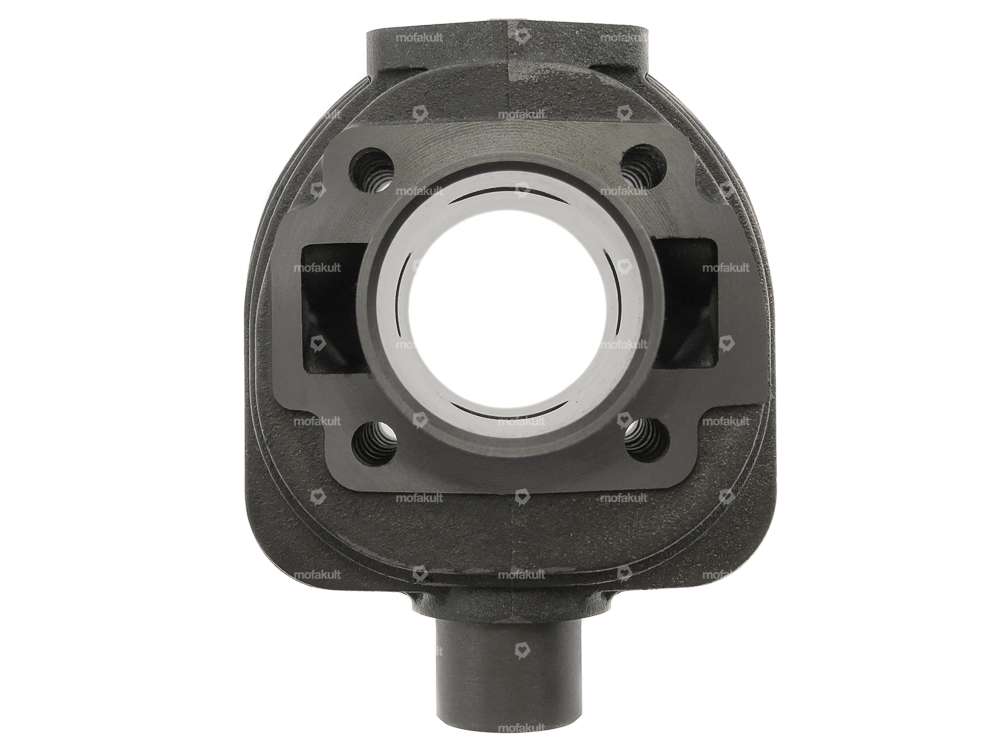

38 mm cylinder suitable for ILO / JLO mopeds.
Ø Connection exhaust: 24.85 mm

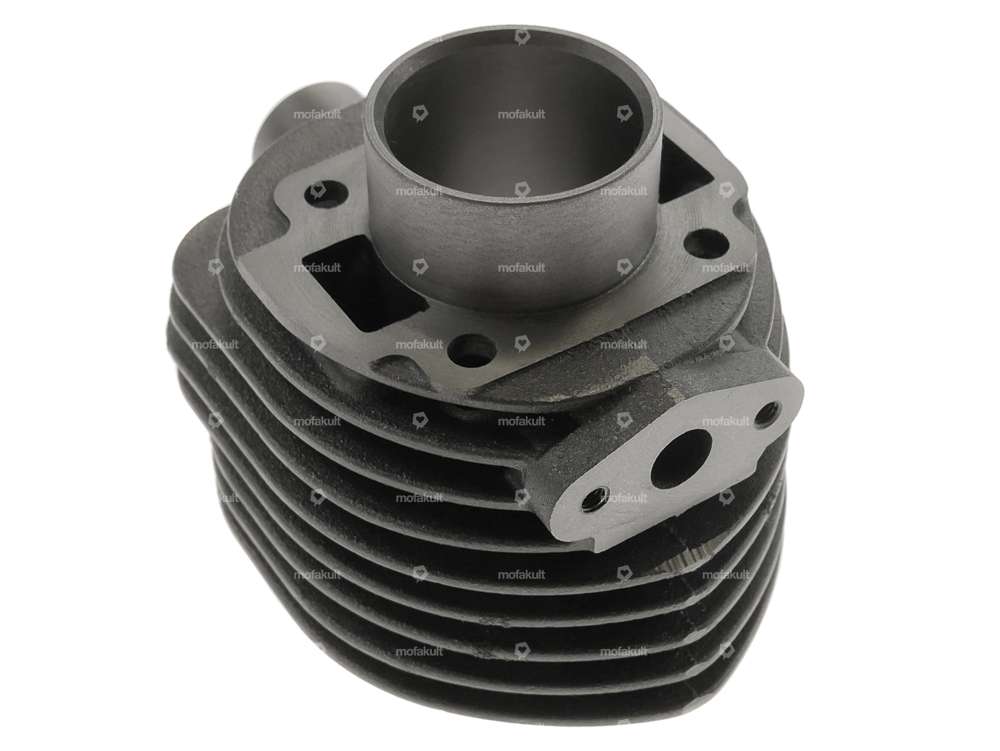

Hole spacing threaded intake manifold: 31 mm
Distance between stud bolt holes diagonal: 60 mm (square)
The piston is fitted with the arrow pointing towards the outlet
.Attention: This cylinder does not fit the Swiss engines, the one stud bolt hole must be adapted as this is slightly offset on the CH engines.

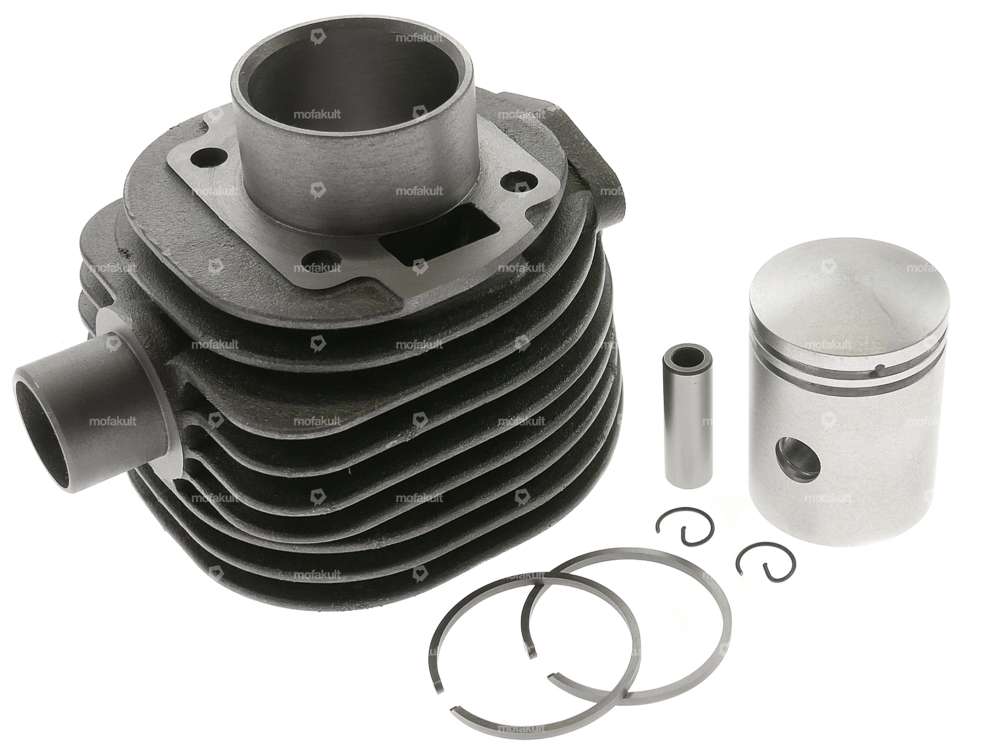

The gaskets are not included, scope of delivery according to figure 1.
| Material | Gray cast iron |
| Area of application | Standard |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Nominal diameter | 38 mm |
| Hole spacing inlet | 31 mm |
| Ø cylinder neck | 44 mm |
| Ø Outlet outside | 24.85 mm |
| Camouflaged | No |
| Hole pattern [mm] | 42 x 42 |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Number of fixing points | 4 pcs |
| ILO / JLO |
