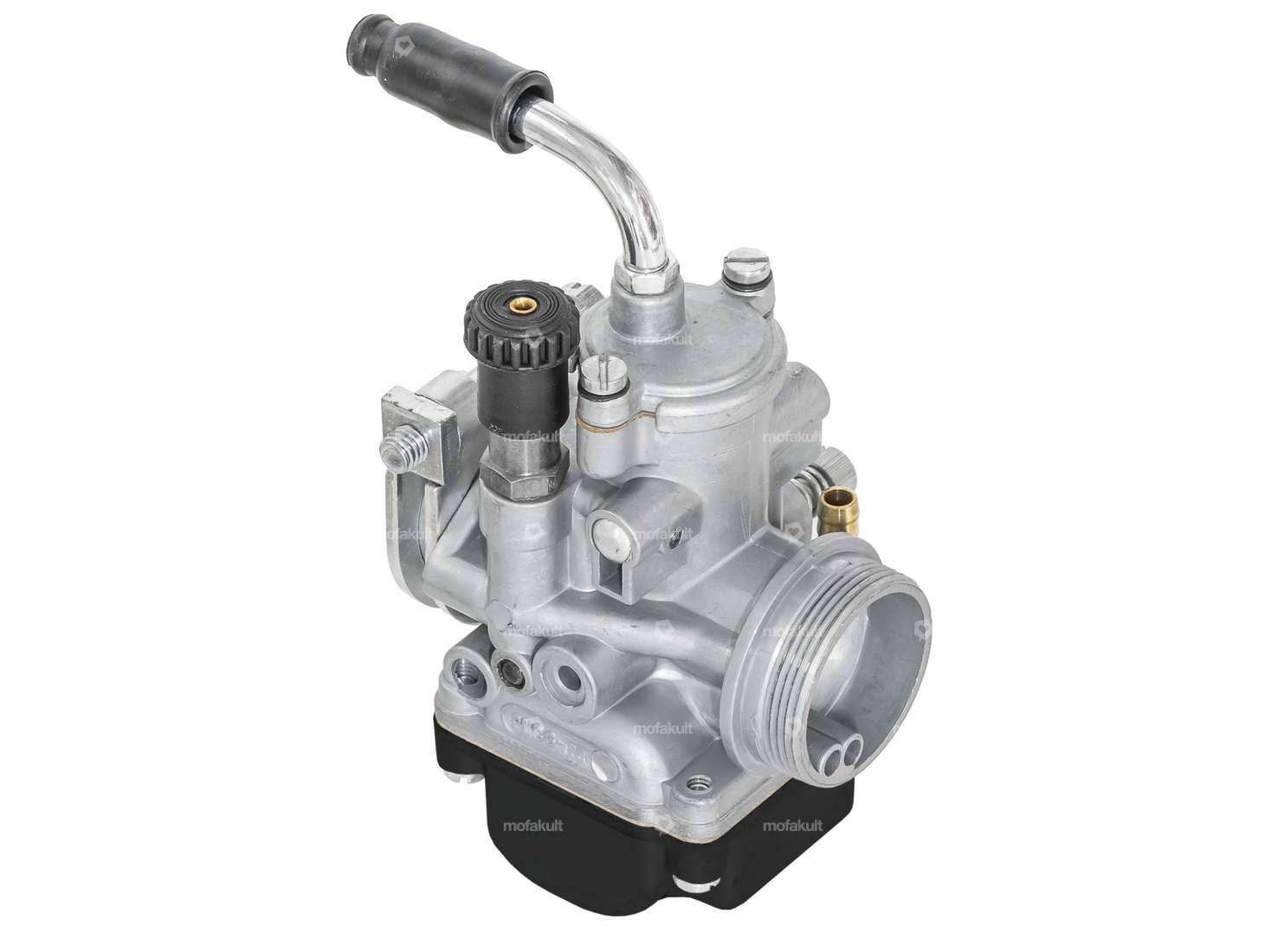

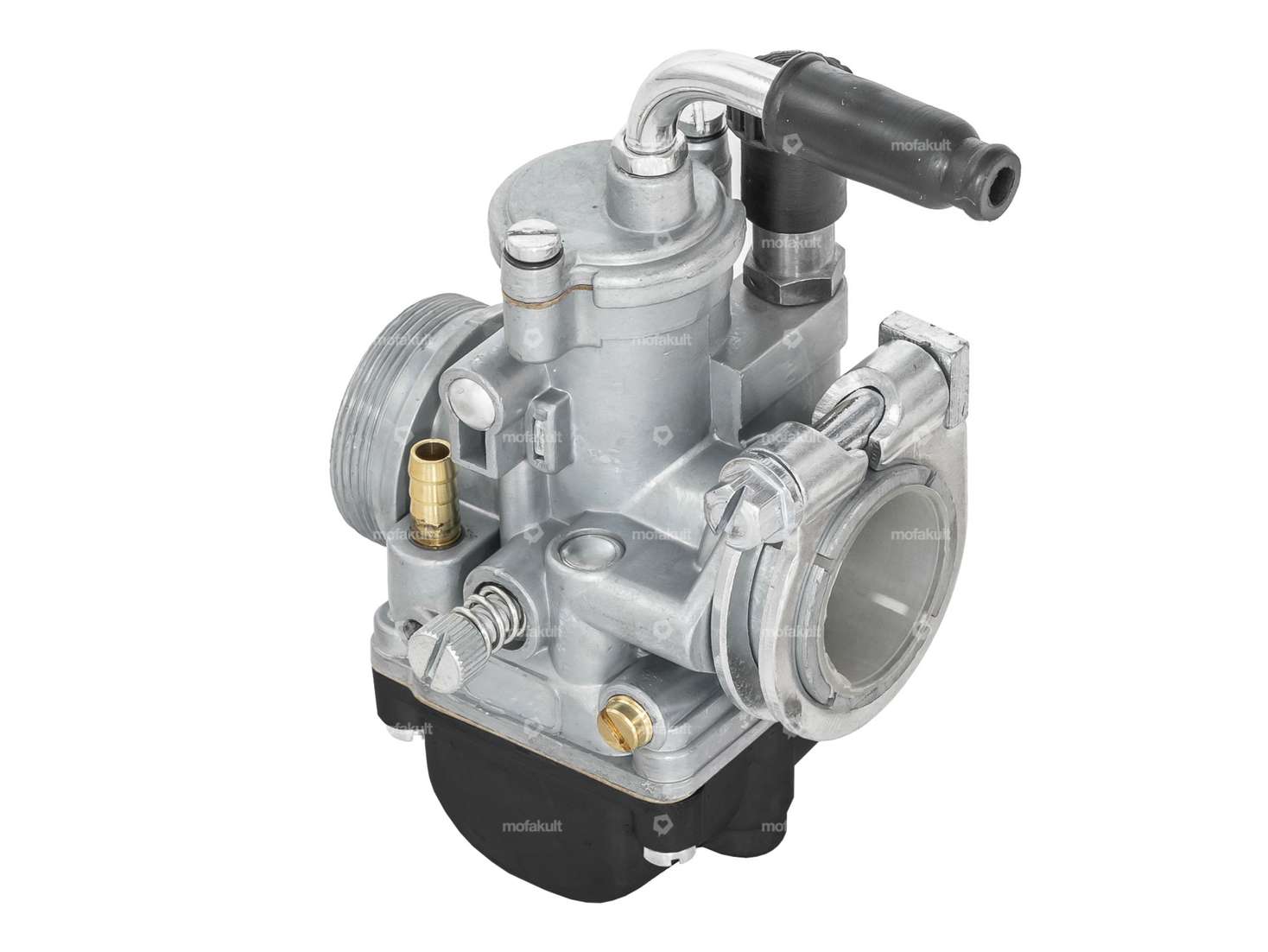

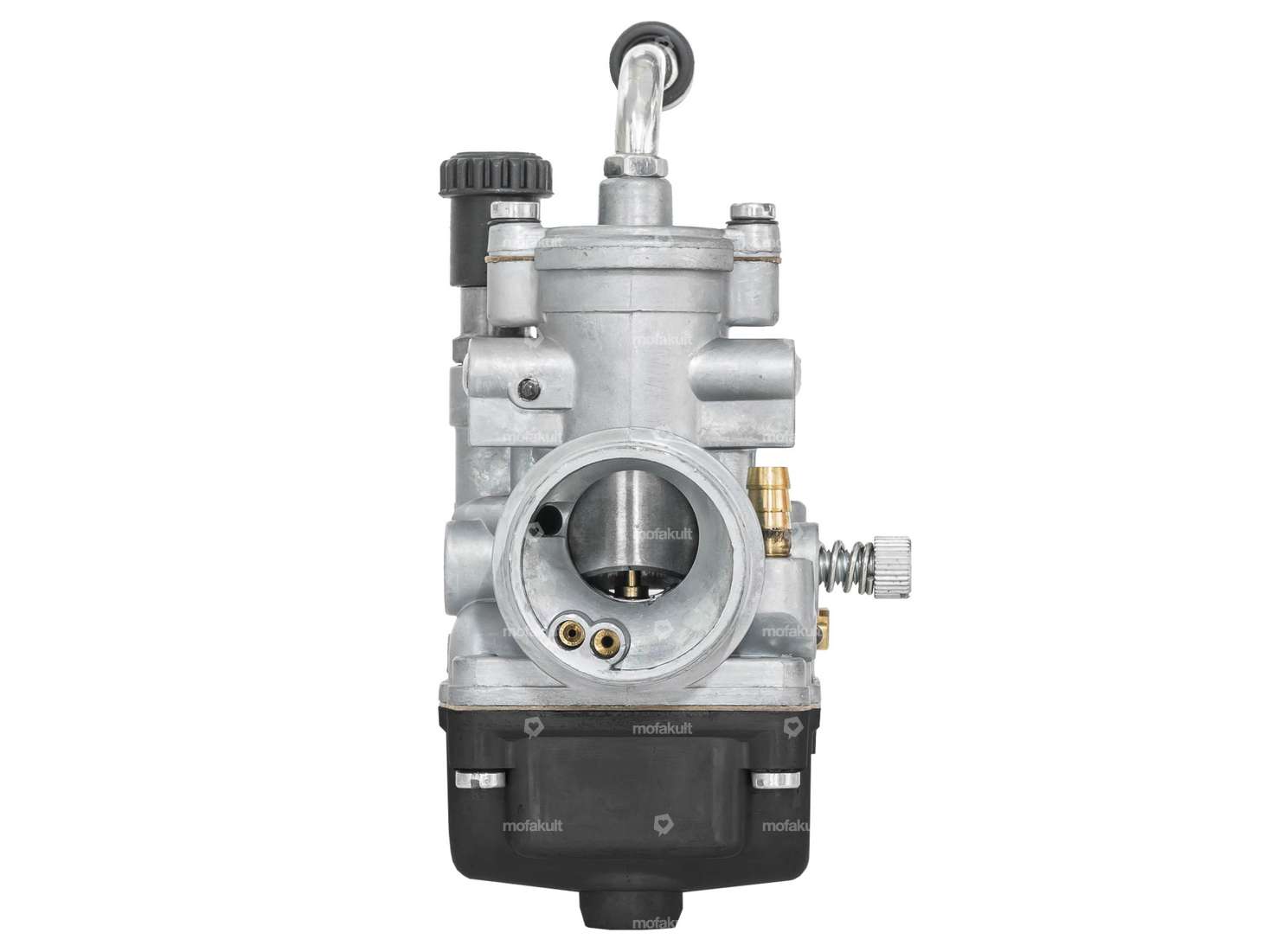

Cost-effective replica of the Dell'Orto 17.5 mm PHBG AS carburetor for universal use on your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.
The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary throttle bodies and the mixture adjustment screw.
The carburetor has an M32x1.25 thread on the air filter side.
Main throttle body size (M5): 82
Additional throttle body size (idle throttle body): -
Size choked: 55
Connection diameter air filter without intake funnel: 32 mm (M32 x 1.25)
Connection diameter intake manifold: 24 mm (resp. 26 mm after removing the reduction sleeve)
Total height: 120 mm
Total width: 75 mm
Total width: 60 mm
You can find suitable nozzles, air filters and intake manifolds in the accessories section.
Good-quality reproduction product from the Asian market.
| Manufacturer | Quenching |
| Component group Carburetor | Carburetor complete |
| Carburetor type | PHBG AS |
| Nominal diameter | 17.5 mm |
| Total length | 75 mm |
| Mounting type | Plug connection clamped |
| Width | 60 mm |
| Ø without reducing sleeve | 26 mm |
| Height | 120 mm |
| Ø Air filter connection | 32 mm |
| Area of application | Tuning |
| Ø Internal connection | 24 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Ø fuel hose connection | 6 mm |
| Choke control | Hand choke |
| Choke nozzle size | 55 |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 82 |
